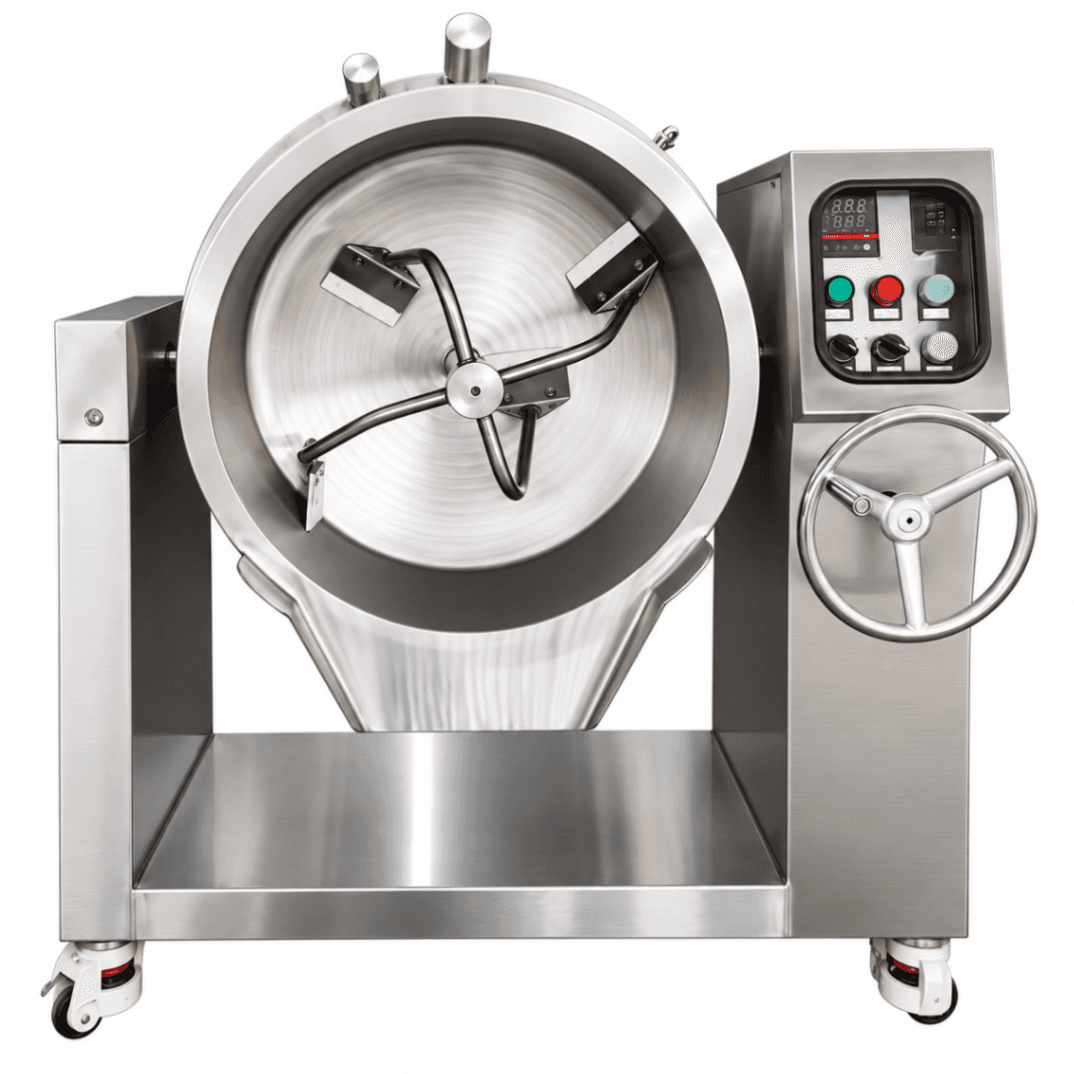

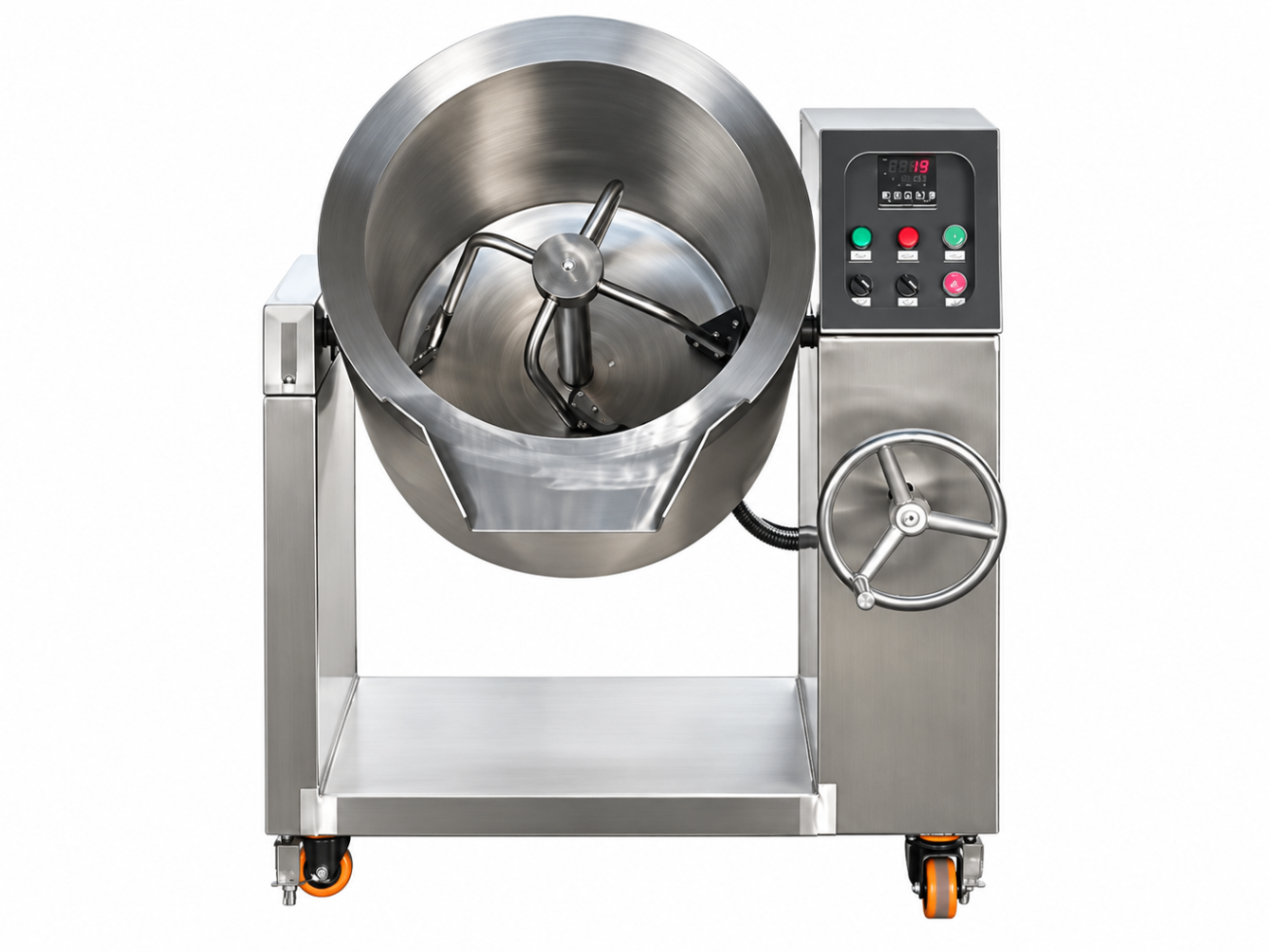

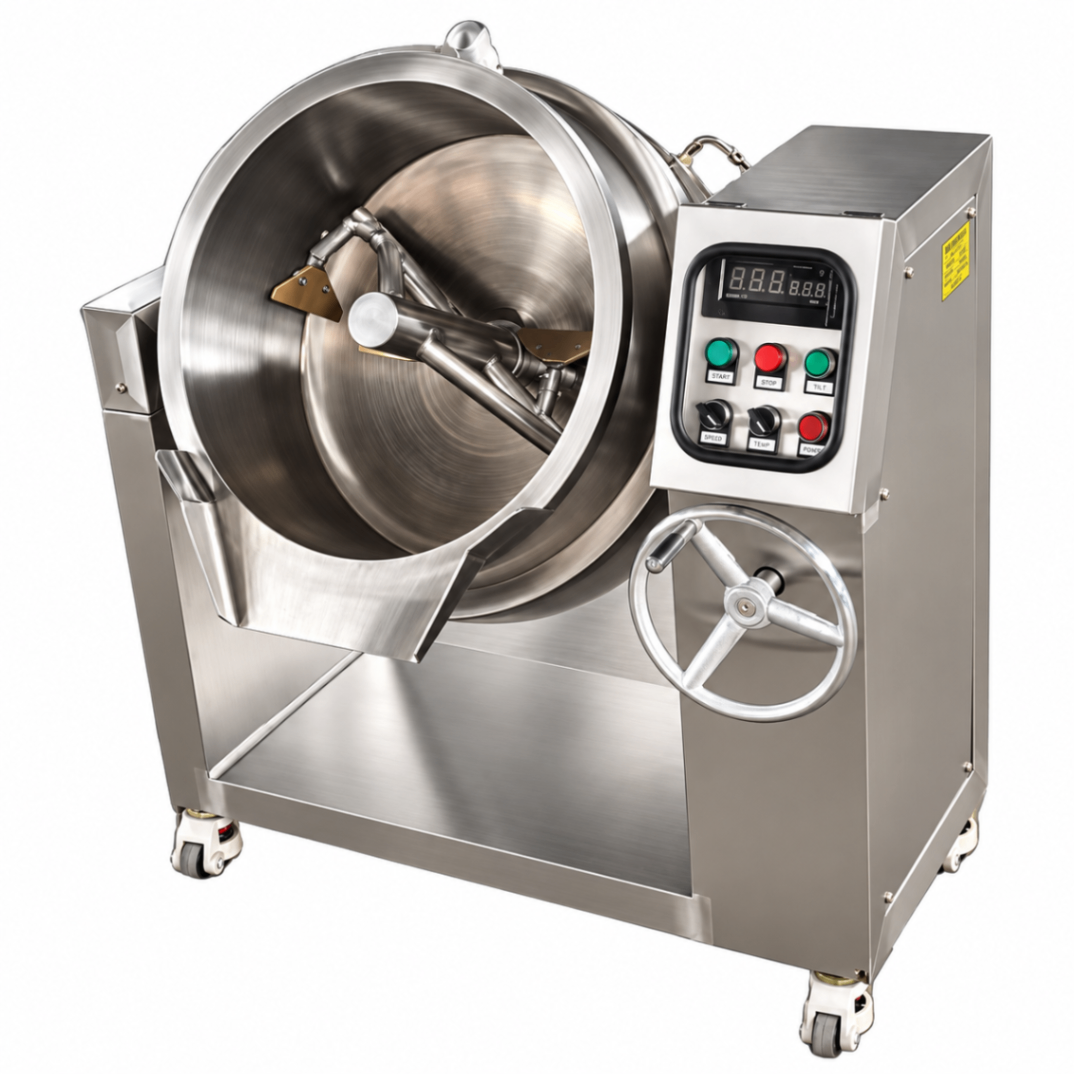

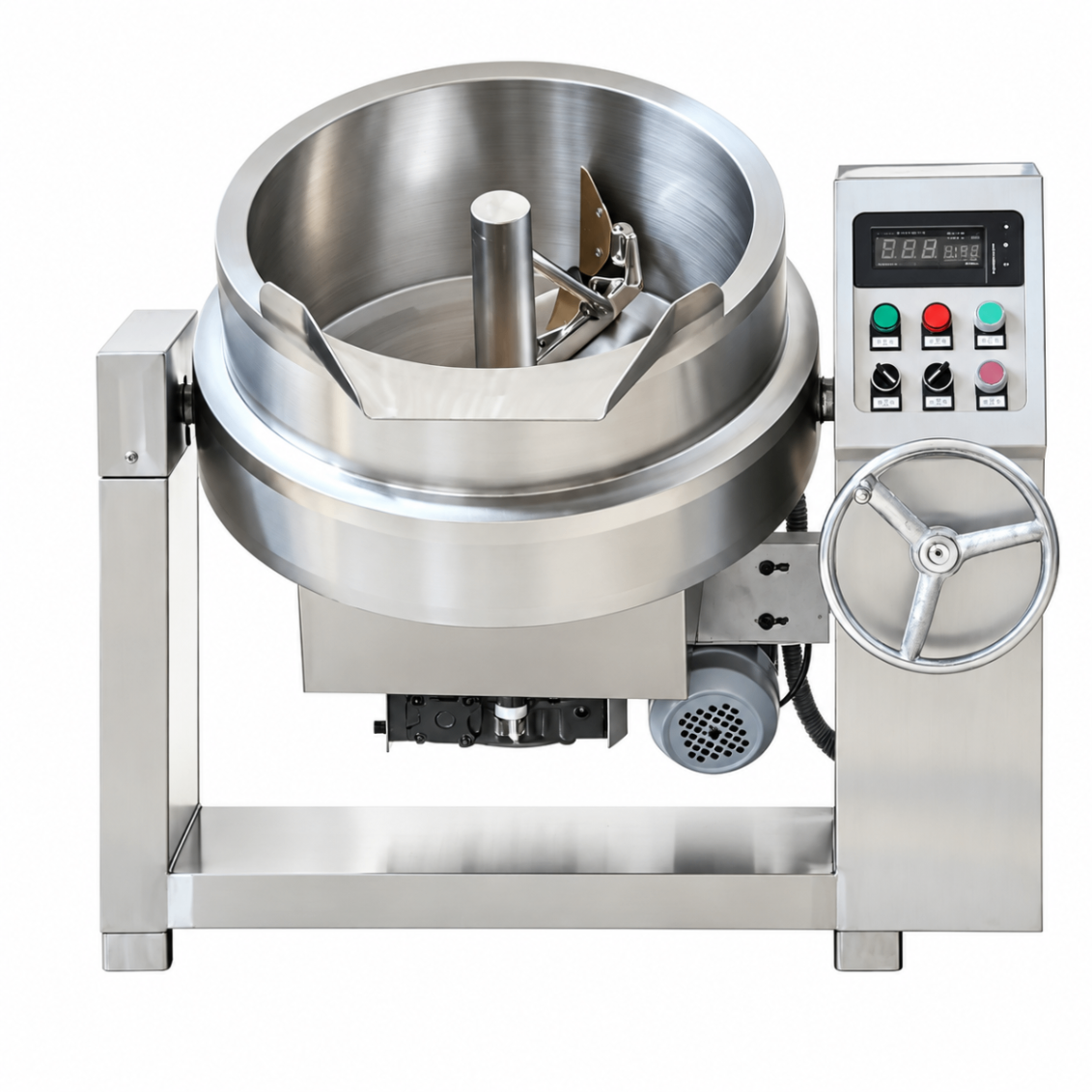

What is included • 50L tilting kettle / tilting cooking pan. • Indirect electric heating system with thermal-oil jacket. • Four-claw agitator. • Manual tilting system operated by side handwheel. • 750W mixing motor. • Temperature control system. • Waterproof control panel. • 4 wheels for machine movement. Technical description • Factory model: JL-KYG. • Capacity: 50L. • Heating system: indirect electric heating through thermal-oil jacket. • Heating power: 9kW. • Electrical supply: 380V, 50Hz, three-phase. • Tilting system: manual, operated by side handwheel. • Agitation system: four-claw agitator. • Agitation speed: 0-30rpm. • Mixing motor power: 750W. • Inner vessel diameter: 500mm. • Inner vessel depth: 380mm. • Design temperature: 260°C. • Control system: temperature control with waterproof control panel. • Mobility: 4 wheels. • Technical dimensions: 913×671×793mm. Commercial description This 50L electric tilting kettle / tilting cooking pan combines indirect thermal-oil heating, mechanical agitation and manual tilting in a compact machine designed for food cooking and mixing processes. The intermediate jacket contains heat-transfer oil, which transfers heat between the electric heating system and the vessel. This configuration distributes heat around the cooking vessel without applying the heat source directly to the product. The four-claw agitator operates at an adjustable speed of 0-30rpm, keeping the product in motion during cooking. This configuration is suitable for sauces, fillings, creams, confectionery products, dairy preparations, food bases and other products requiring heating combined with continuous mixing. The side handwheel provides manual vessel tilting for easier batch discharge. Its 50L capacity and four wheels make it suitable for industrial kitchens, food-production workshops, product-development facilities and small- to medium-scale production. Keywords Industrial tilting kettle, industrial tilting cooking pan, 50L electric kettle, 50L tilting cooking pan, thermal oil jacketed kettle, indirect heating kettle, manual tilting kettle, handwheel tilting kettle, kettle with mixer, four-claw agitator, sauce cooking kettle, cream cooking kettle, filling cooking kettle, confectionery kettle, industrial cooking equipment, food processing equipment, JL-KYG, JIALI-ELEC-50-STD-BAS.
