Fábricas verificadas una a unaPrecio final con transporte, aduana e impuestosServicio técnico y garantía incluidos
Hualian Machinery Group Co., Ltd. · China
Model: HVR-520AQ Brand: Hualian
Made in China
Ships and invoices from China
53.768,00 €
EUR/unit FOB
Gather several products and receive a formal PDF offer
Quantity (units)
Minimum: 1 units
We don't serve your country yet
LeanZupply currently delivers to Spain, Portugal, France, Italy, Germany, Belgium and the Netherlands. The price shown is FOB: it excludes international freight, insurance, duties, import taxes and local delivery. Request a quote and we'll assess your operation.
Gather several products and receive a formal PDF offer
When we quote a price it is final: goods, taxes, freight and delivery included.
With LeanFinance, our in-house machinery financing, you pay a down payment and the balance in deferred monthly instalments.
Indicative simulation over the displayed total, subject to credit assessment. Available for companies in Spain.
International bank transfer (SWIFT) in euros.
Secure payment processed with Stripe; funds are held until the operation's milestones are met.
You choose how to pay, financing included, at checkout.
Enter your details before continuing.
Dimensions (L×W×H)
5200 × 1140 × 1960 mm
Net Weight
2260 kg
Gross Weight
2371 kg
Packaging
Wooden Case

Made in China
Ships and invoices from China
Model: HVR-520AQ
Brand: Hualian
⚠These times do not include maritime transport, customs or local delivery.
Gather several products and receive a formal PDF offer
Minimum: 1 units
We don't serve your country yet
LeanZupply currently delivers to Spain, Portugal, France, Italy, Germany, Belgium and the Netherlands. The price shown is FOB: it excludes international freight, insurance, duties, import taxes and local delivery. Request a quote and we'll assess your operation.
Gather several products and receive a formal PDF offer
When we quote a price it is final: goods, taxes, freight and delivery included.
With LeanFinance, our in-house machinery financing, you pay a down payment and the balance in deferred monthly instalments.
Indicative simulation over the displayed total, subject to credit assessment. Available for companies in Spain.
International bank transfer (SWIFT) in euros.
Secure payment processed with Stripe; funds are held until the operation's milestones are met.
You choose how to pay, financing included, at checkout.
Enter your details before continuing.

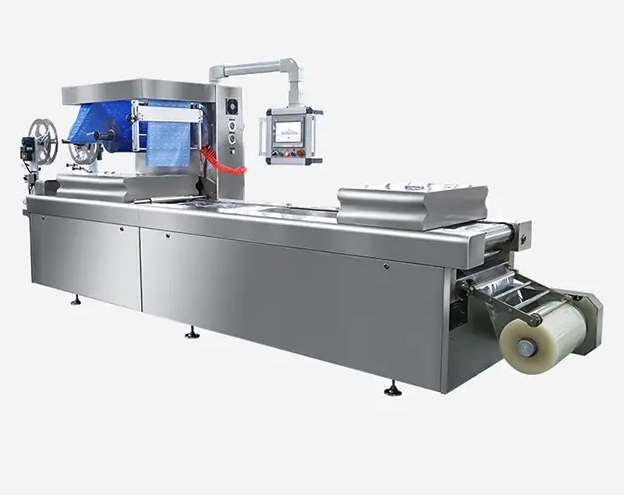

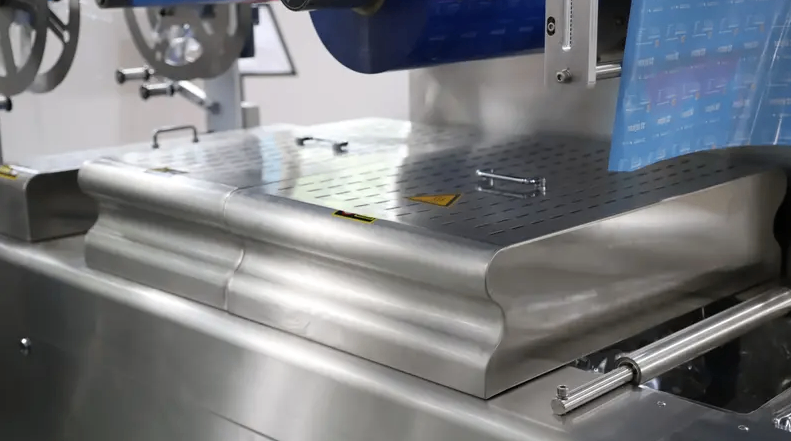

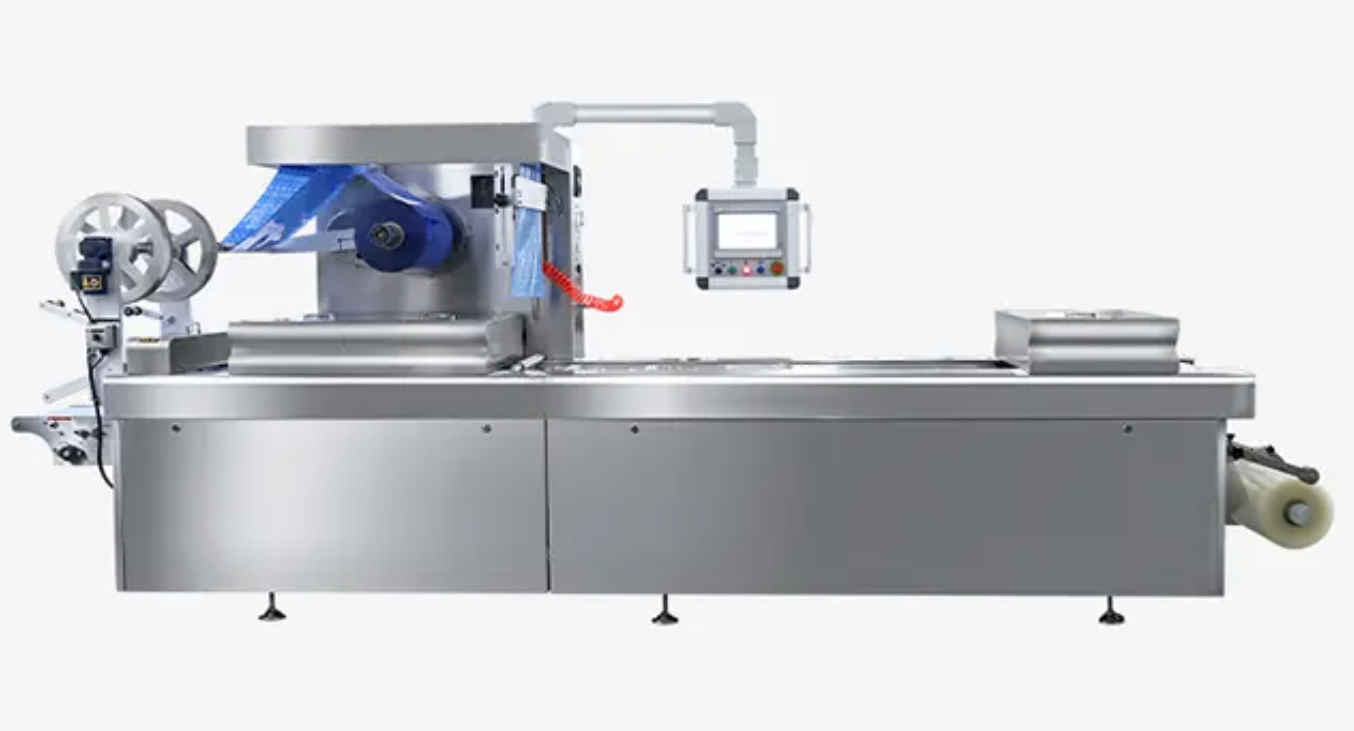

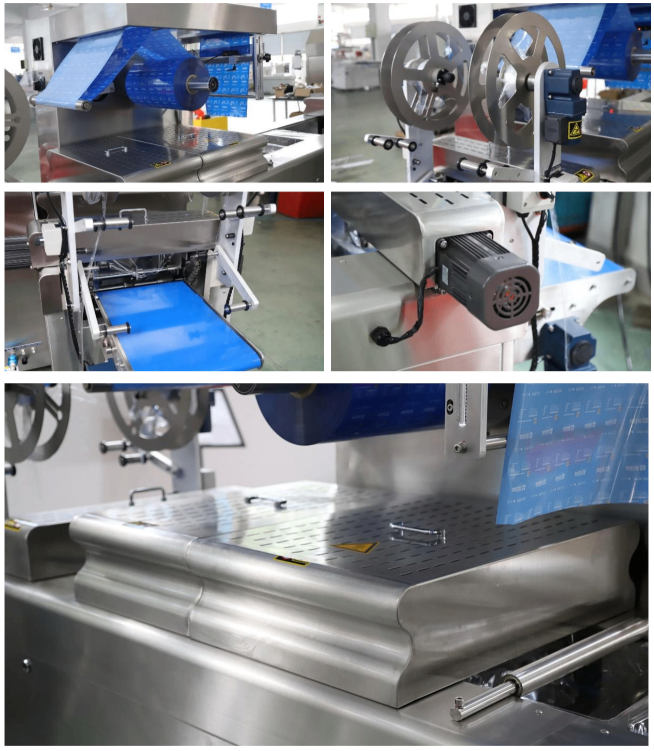

Automatic in-line thermoforming packaging machine: it forms the tray from the bottom film and, in one continuous cycle, loads, evacuates, flushes with gas, seals with the top film and cuts. Built for meat, cold cuts, cheese, sandwich and ready-meal producers. This unit's configuration Gas flushing for modified atmosphere packaging (MAP) Busch 63 m³/h pump for thermoforming Busch 200 m³/h pump for vacuum Two sets of format parts for two tray sizes Set up for soft film Reference formats (units per cycle) Sandwich 190 × 96.8 × 70 mm: 10 per cycle Tray 190 × 160 × 45-60 mm: 6 per cycle Tray 190 × 121 × 45-60 mm: 8 per cycle Recommended film Top: PA1.5/CPP7, 0.09 mm thick Bottom: PA/PP/TIE, 0.13 mm thick (0.2 mm max.) Technical data (HVR-520A series) Power supply: 380 V / 50 Hz, three-phase Compressed air: 0.5-0.8 MPa Water cooling Film width: top 492 mm, bottom 522 mm Max. forming depth: 80 mm Speed: 4-6 cycles/min Dimensions (L × W × H): 5200 × 1140 × 1960 mm Construction AISI 304 stainless steel housing
Twelve-month warranty against manufacturing defects; does not cover faulty or improper installation by the customer.
Wooden Case
Automatic in-line thermoforming packaging machine: it forms the tray from the bottom film and, in one continuous cycle, loads, evacuates, flushes with gas, seals with the top film and cuts. Built for meat, cold cuts, cheese, sandwich and ready-meal producers. This unit's configuration Gas flushing for modified atmosphere packaging (MAP) Busch 63 m³/h pump for thermoforming Busch 200 m³/h pump for vacuum Two sets of format parts for two tray sizes Set up for soft film Reference formats (units per cycle) Sandwich 190 × 96.8 × 70 mm: 10 per cycle Tray 190 × 160 × 45-60 mm: 6 per cycle Tray 190 × 121 × 45-60 mm: 8 per cycle Recommended film Top: PA1.5/CPP7, 0.09 mm thick Bottom: PA/PP/TIE, 0.13 mm thick (0.2 mm max.) Technical data (HVR-520A series) Power supply: 380 V / 50 Hz, three-phase Compressed air: 0.5-0.8 MPa Water cooling Film width: top 492 mm, bottom 522 mm Max. forming depth: 80 mm Speed: 4-6 cycles/min Dimensions (L × W × H): 5200 × 1140 × 1960 mm Construction AISI 304 stainless steel housing
Twelve-month warranty against manufacturing defects; does not cover faulty or improper installation by the customer.
Wooden Case
