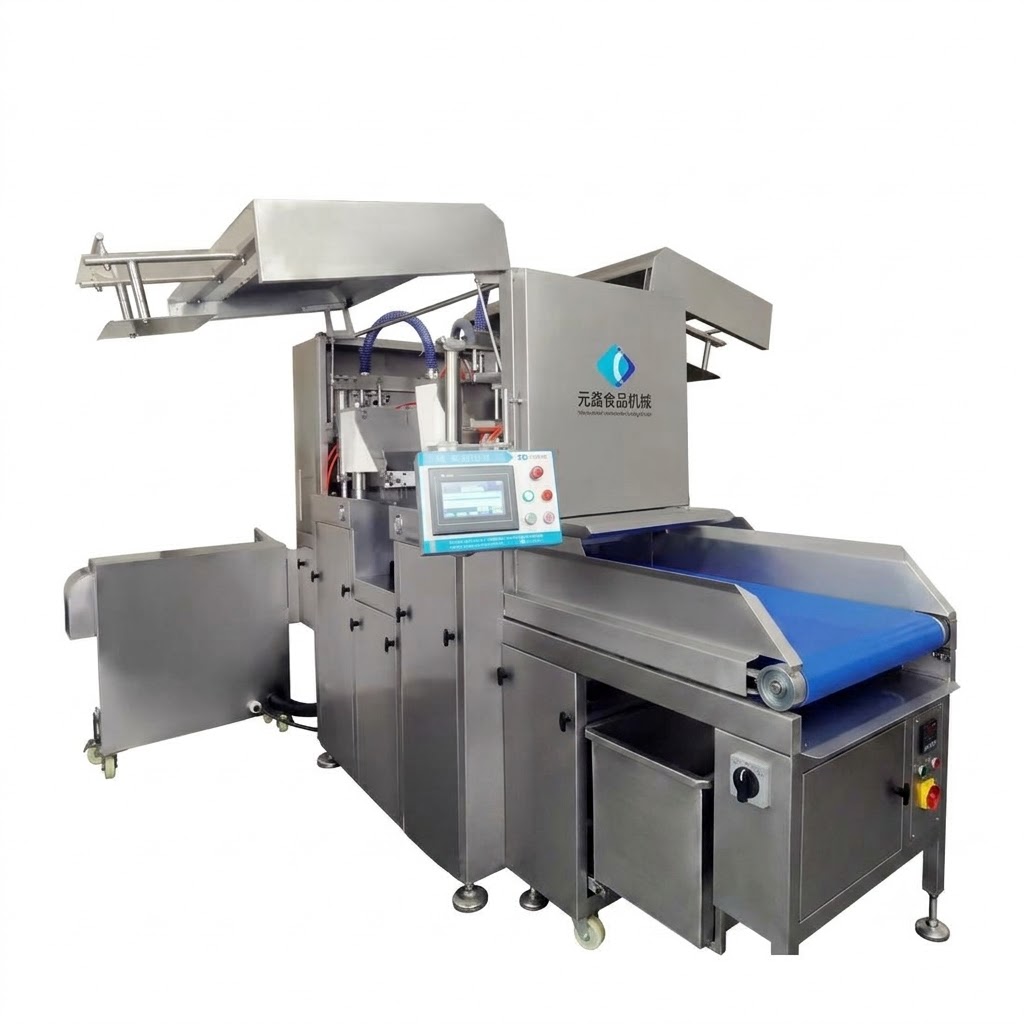

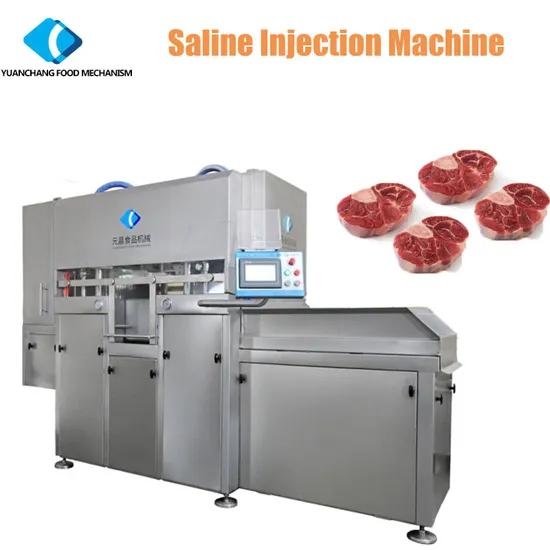

DETAILED DESCRIPTION The Industrial Brine and Emulsion Injection Machine (Model ZSJ-360) is a high-performance professional machine developed by Yuanchang for the automated injection of brine, emulsions, and marinating solutions into meat products. Designed for industrial meat processing lines, the ZSJ-360 combines high production capacity, a high-precision injection system, and a 360-needle configuration to achieve uniform distribution of the injected liquid throughout large volumes of product. With a production capacity of between 4 and 8 tons per hour, the ZSJ-360 is designed for high-capacity industrial operations. Its injection system operates with pressures ranging from 0.4 to 1.0 MPa and features adjustable injection speed, allowing the equipment to adapt to product characteristics and specific process requirements. TECHNICAL SPECIFICATIONS Model: ZSJ-360. Equipment Type: Industrial brine and emulsion injection machine. Production Capacity: 4–8 tons per hour. Number of Needles: 360. Injection Pressure: 0.4–1.0 MPa. Injection Stroke: 30–190 mm. Injection Speed: 10–65 cycles per minute. Injection Rate: 10–180%. Agitation Tank Volume: 500 liters. Installed Power: 21 kW. Dimensions: 3,350 × 1,660 × 2,165 mm. DESIGN AND TECHNOLOGY FEATURES High-Capacity Injection System: The ZSJ-360 is equipped with 360 injection needles and is designed to process between 4 and 8 tons of product per hour, providing a suitable solution for high-capacity industrial plants. Uniform Brine Distribution: The injection system is designed to promote the even distribution of brine, emulsion, or marinating solution throughout the product. Modular System: Its modular construction facilitates equipment configuration and allows the system to be adapted to the specific requirements of different production lines. Interchangeable Needle Bridges: The design allows needle bridges to be replaced quickly, facilitating cleaning, maintenance, and equipment adaptation. Injection Process Control: Adjustable pressure, stroke, and injection speed allow the process to be adapted to the characteristics of each product. Large-Capacity Agitation Tank: The machine features a 500-liter agitation tank to keep the injection solution prepared and support stable feeding of the system. Industrial Line Integration: The ZSJ-360 can be integrated into meat production lines that include preparation, emulsification, refrigeration, injection, cleaning, and sterilization processes. INDUSTRIAL APPLICATIONS The ZSJ-360 model is particularly suitable for: • Industrial meat processing plants. • Brine injection and marinating lines. • Meat product processing. • Marinated meat production lines. • Meat emulsion processing. • Industrial meat product preparation lines. • Integrated meat processing systems. KEYWORDS Industrial brine injector, ZSJ-360, Yuanchang, meat injector, brine injection machine, marinating injector, meat emulsion injector, 360 needles, meat processing, meat processing industry, 4-8 tons per hour capacity, 21 kW, 0.4-1.0 MPa injection pressure, 500-liter agitation tank, sausage-making machinery, industrial food machinery, brine injection, meat marinating, meat processing equipment, industrial meat injector, meat processing machinery.
