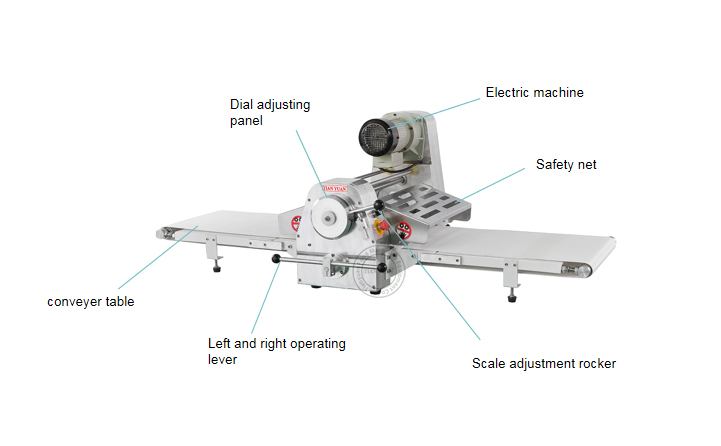

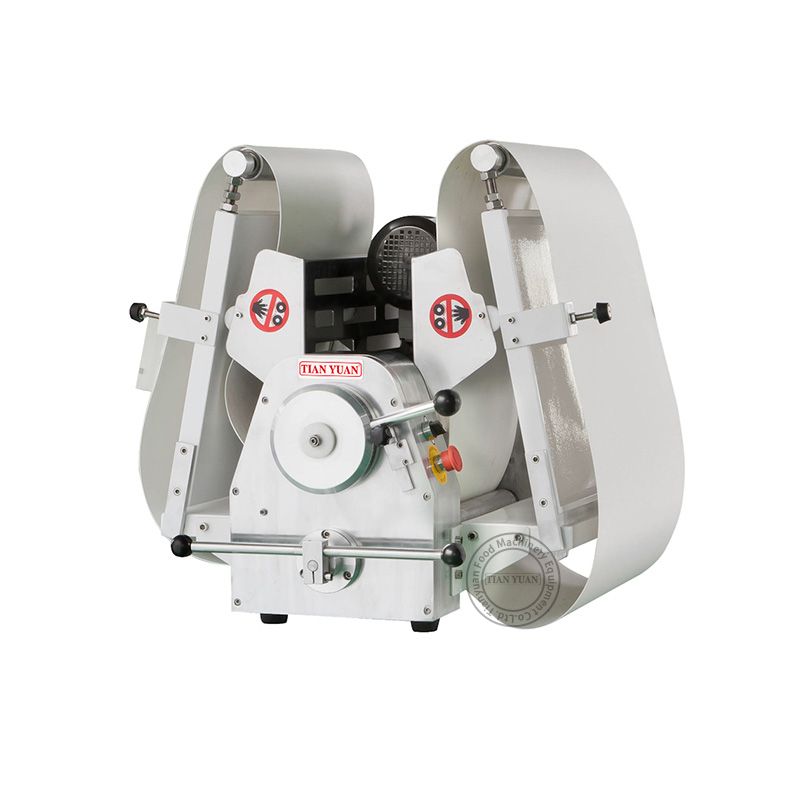

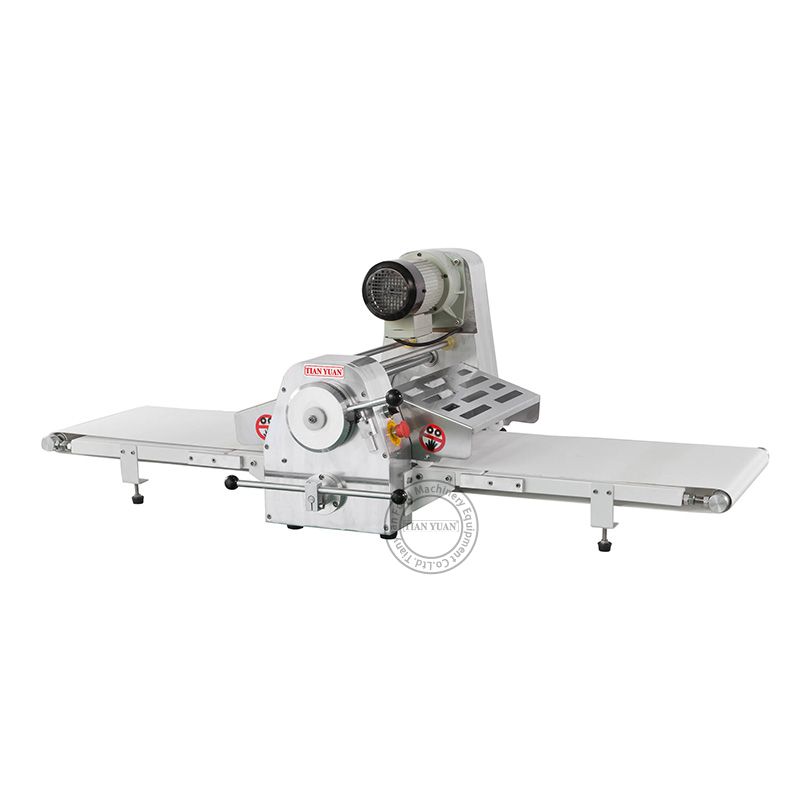

Technical Specifications • Model: TYD-450B • Working width: 430 mm • Conveyor table length: 840 mm • Roller opening range: 0.3–35 mm • Conveyor belt dimensions: Width 430 mm × Length 1700 mm • Dimensions in working position (L × D × H): 1770 × 820 × 620 mm • Dimensions in folded position (L × D × H): 660 × 820 × 700 mm • Power: 0.4 kW • Voltage: 380 V • Weight: 140 kg • Reversible sheeting system (automatic reversing) • Motorized sheeting tables with conveyor belts on both sides • Rollers manufactured from seamless steel tubing • CNC-machined, ground and hard chrome-plated rollers • Non-stick and scratch-resistant roller surface • Rollers with scraper • Wear-resistant conveyor belts • Motor components designed for extended service life • Professional design for thin and uniform dough sheeting • Foldable configuration to reduce required space • Robust and stable construction for continuous operation • Safe operation • Hygienic and easy to clean Commercial Description The TYD-450B is a semi-automatic reversible dough sheeter designed for bakeries, pastry shops, hotels, restaurants and industrial kitchens requiring precision and uniformity in dough sheeting. Its reversible system and motorized tables enable a continuous and controlled process, facilitating progressive dough rolling during daily production. Its 430 mm working width and roller opening range from 0.3 to 35 mm make it suitable for puff pastry, croissant dough and other laminated dough preparations requiring uniform thickness. Its foldable configuration reduces the space required when not in use, while the machined, ground and chrome-plated rollers and wear-resistant conveyor belts are designed for continuous professional operation. The TYD-450B is a professional dough sheeter, semi-automatic puff pastry sheeter, dough calibrating machine, reversible dough sheeter for bakeries and pastry shops and croissant dough sheeting machine, suitable for professional production facilities and kitchens seeking uniform thickness, repeatability and optimized use of workspace.
