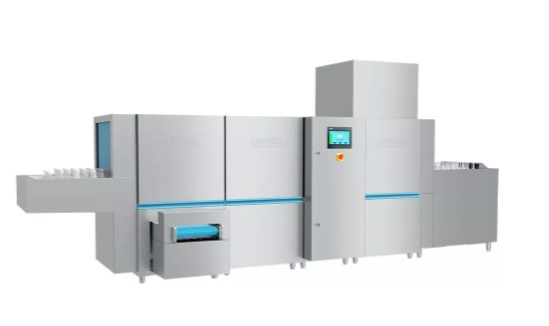

DETAILED DESCRIPTION The HATTON HT-C1X1H High-Capacity Industrial Conveyor Dishwasher with Double Rinsing and Drying Function is a professional machine designed for the continuous and automated washing of large volumes of tableware in restaurants, hotels, canteens, industrial kitchens, catering companies, and food-service establishments requiring high productivity, efficiency, and continuous operation. The HT-C1X1H incorporates a conveyor system that allows tableware to be continuously fed into the machine. Its maximum washing capacity reaches 3,000-4,800 dishes per hour, allowing large volumes of tableware to be processed during high-demand periods. It features a 605 mm entrance width and a maximum washing height of 420 mm. The system is configured with one main washing stage, double rinsing, and a drying function. This configuration allows the main cleaning stages to be performed continuously, reducing manual handling and facilitating workflow in high-capacity professional kitchens. The machine features a 90-liter wash tank and a 15-liter booster tank. The washing temperature ranges from 55 to 60 °C, while the rinsing temperature reaches 80-85 °C. Water consumption is approximately 350-400 liters per hour. The HT-C1X1H can use electric or steam heating, providing flexibility for different professional installations. Its electrical supply is 380 V, 50 Hz, three-phase, with a total power requirement of 67 kW. TECHNICAL SPECIFICATIONS: Model: HT-C1X1H. Equipment type: Industrial commercial conveyor dishwasher with drying function. Application: Professional and continuous washing of tableware, plates, containers, and utensils. Overall dimensions: 4,200 × 1,000 × 2,040 mm. Weight: 550 kg. Entrance width: 605 mm. Maximum washing height: 420 mm. Maximum washing capacity: 3,000-4,800 dishes per hour. Water consumption: Approximately 350-400 liters per hour. Wash tank capacity: 90 liters. Booster tank capacity: 15 liters. Washing temperature: 55-60 °C. Rinsing temperature: 80-85 °C. Water supply pressure: 0.15-0.4 MPa. Water inlet diameter: G3/4" (DN20). Drain pipe diameter: 50 mm. Supply water temperature: 10-60 °C. Heating system: Electric or steam. Electrical supply: 380 V, 50 Hz, 3N. Total power: 67 kW. Washing configuration: 1 main washing stage + double rinsing. Additional function: Drying. Transport system: Continuous conveyor belt. DESIGN AND TECHNOLOGY FEATURES: Continuous Conveyor System: The HT-C1X1H uses a conveyor belt that allows tableware to be continuously fed into the machine, maintaining a steady flow throughout the washing process. High Processing Capacity: With a maximum capacity of 3,000-4,800 dishes per hour, the machine is designed for establishments requiring high-volume tableware processing. Main Washing Stage: The main washing stage is designed to remove food residues, grease, and accumulated dirt from tableware. Double Rinsing: The double-rinsing system completes the cleaning process after the main washing stage and helps remove detergent residues. Drying Function: The HT-C1X1H incorporates a drying function that helps reduce residual moisture from tableware after washing and rinsing. 90-Liter Wash Tank: The high-capacity tank provides the water volume required for continuous washing operations. 15-Liter Booster Tank: The booster tank helps maintain the temperature conditions required during the rinsing process. Temperature Control: The machine operates at 55-60 °C during washing and 80-85 °C during rinsing. Electric or Steam Heating: The system can operate with electric or steam heating, adapting to different installation configurations. High Operating Power: With a total power requirement of 67 kW and three-phase 380 V electrical supply, the HT-C1X1H is designed for high-capacity professional applications. 605 mm Entrance Width: The entrance opening allows tableware to be continuously and systematically fed into the conveyor system. 420 mm Maximum Washing Height: The available height allows the machine to process different types of plates, containers, and utensils, including larger items. 350-400 Liters/Hour Water Consumption: The water consumption allows facilities to establish the required water supply capacity for high-volume operations. Professional-Duty Construction: The HT-C1X1H is designed for commercial and professional environments requiring continuous washing, rinsing, and drying of large volumes of tableware. Integrated Washing and Drying Process: The combination of main washing, double rinsing, and drying allows multiple stages of tableware processing to be performed within one machine. INDUSTRIAL APPLICATIONS: The HT-C1X1H model is particularly suitable for: • Medium and large restaurants. • Hotels and hospitality establishments. • Institutional canteens. • School and university dining facilities. • Industrial kitchens. • Professional kitchens. • Central kitchens. • Catering companies and food-service providers. • Large-scale food-service companies. • Food production and distribution facilities. • High-capacity food-service facilities. • Businesses processing large volumes of tableware. • Establishments requiring continuous washing, rinsing, and drying. • Professional facilities requiring an industrial conveyor dishwasher. • Food-service businesses seeking to automate tableware washing, rinsing, and drying. KEYWORDS: HT-C1X1H industrial dishwasher, HT-C1X1H, HATTON HT-C1X1H, industrial conveyor dishwasher, commercial conveyor dishwasher, industrial dishwasher with drying function, high-capacity industrial dishwasher, 3,000 dishes per hour dishwasher, 4,800 dishes per hour dishwasher, 3,000-4,800 dishes per hour dishwasher, industrial dishwashing machine, restaurant dishwasher, hotel dishwasher, canteen dishwasher, catering dishwasher, industrial kitchen dishwasher, professional kitchen dishwasher, HATTON commercial dishwasher, industrial dishwasher with double rinsing, dishwasher with drying function, 67 kW industrial dishwasher, 380 V three-phase dishwasher, 90-liter industrial dishwasher, dishwasher with 15-liter booster tank, high-capacity industrial dishwasher, professional conveyor dishwasher, industrial tableware washing machine, industrial tableware washing and drying equipment, large kitchen dishwasher, industrial dishwasher for hospitality, conveyor dishwasher for restaurants, hospitality equipment, industrial food-processing equipment.
