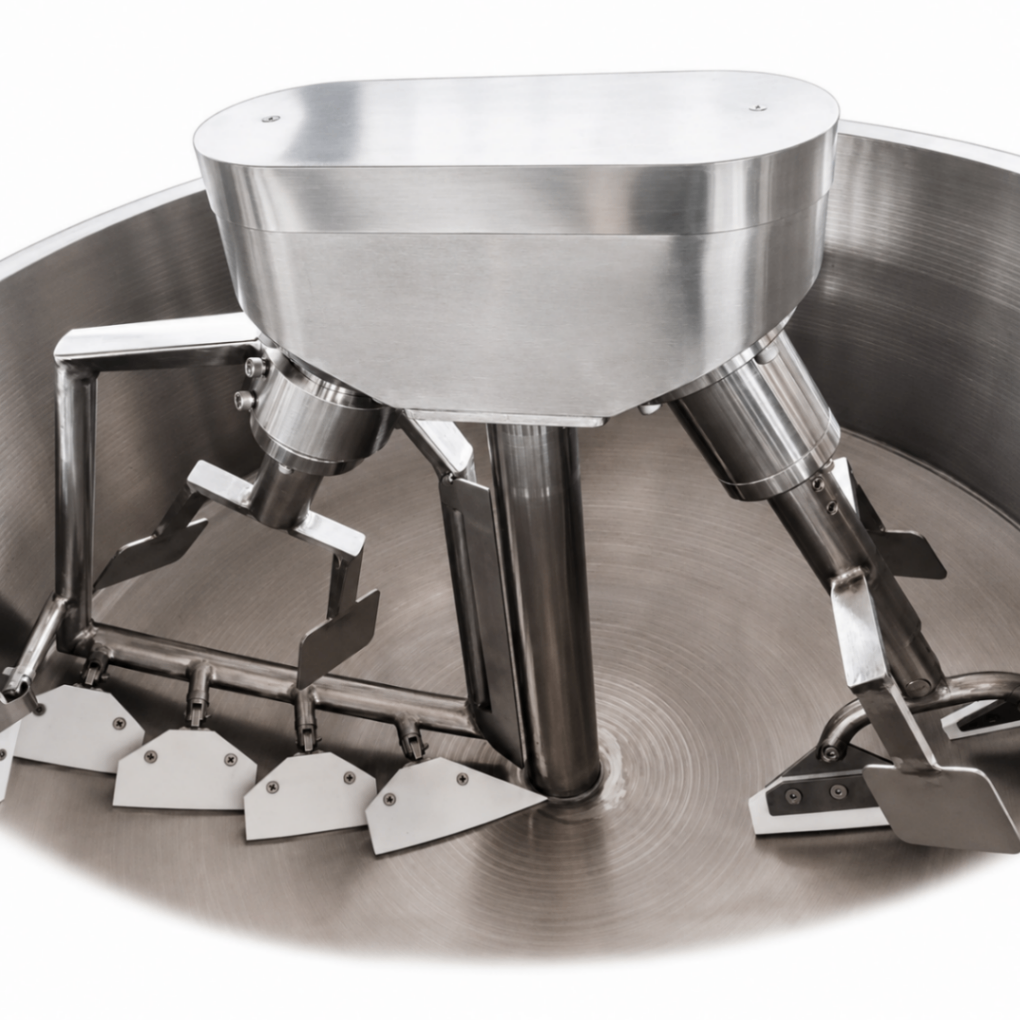

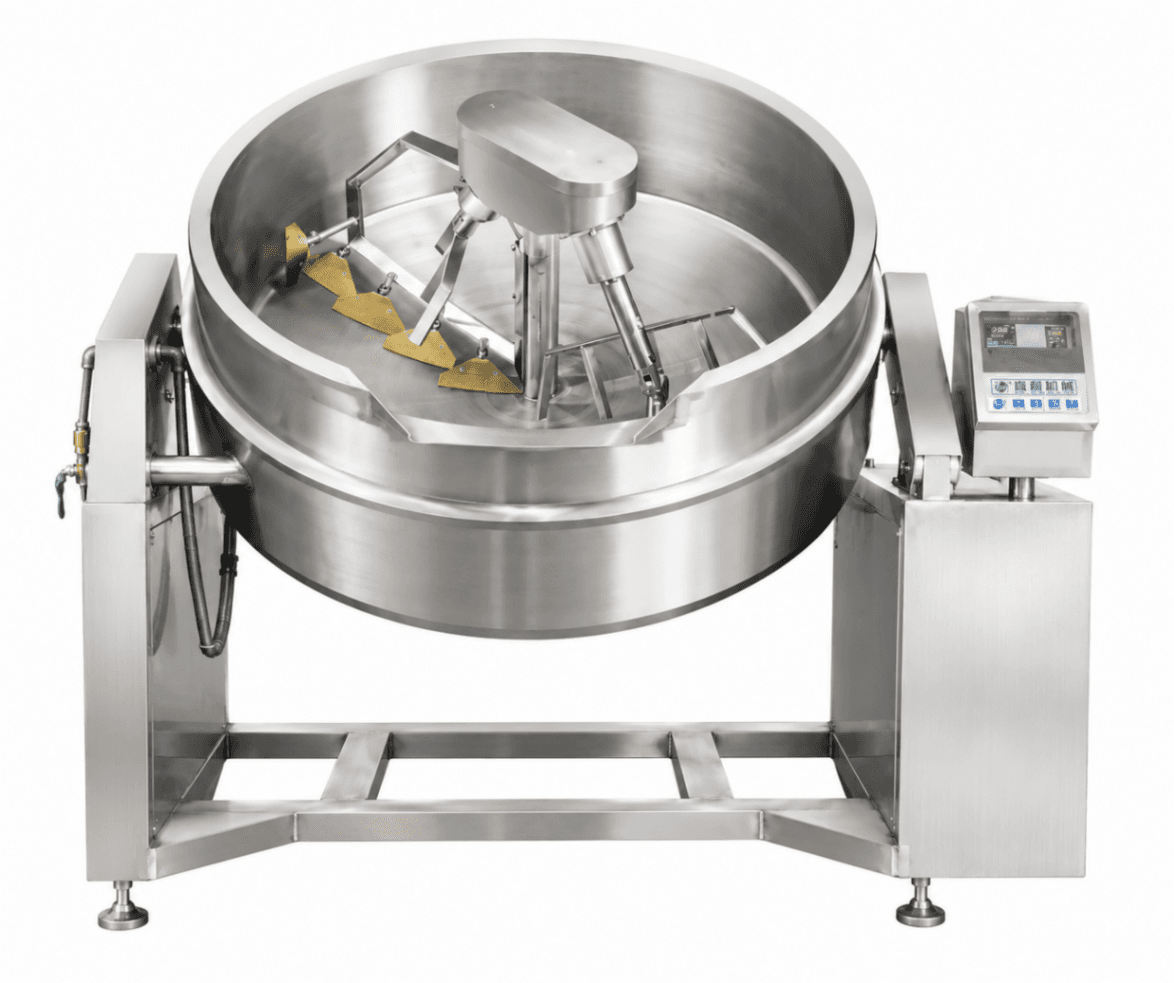

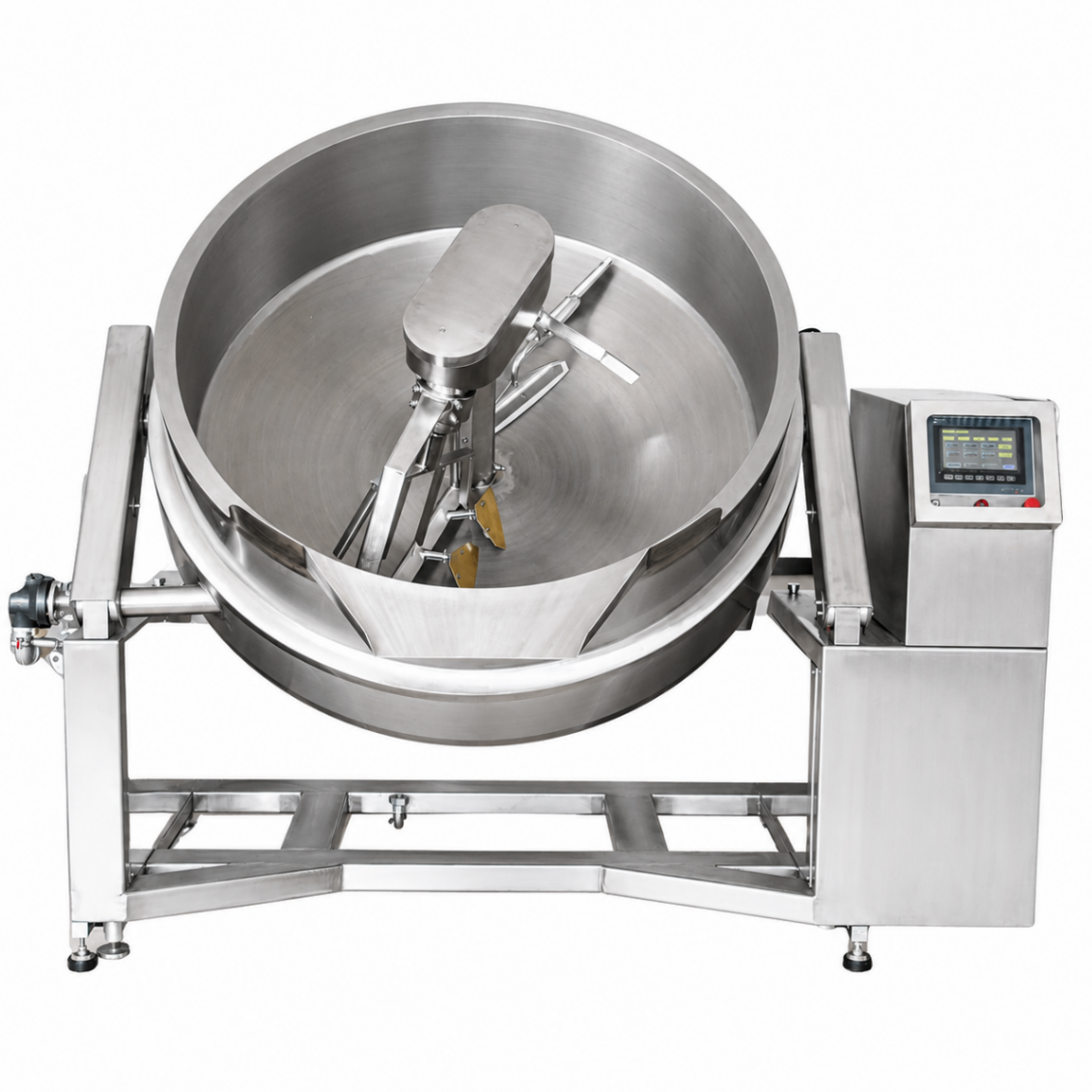

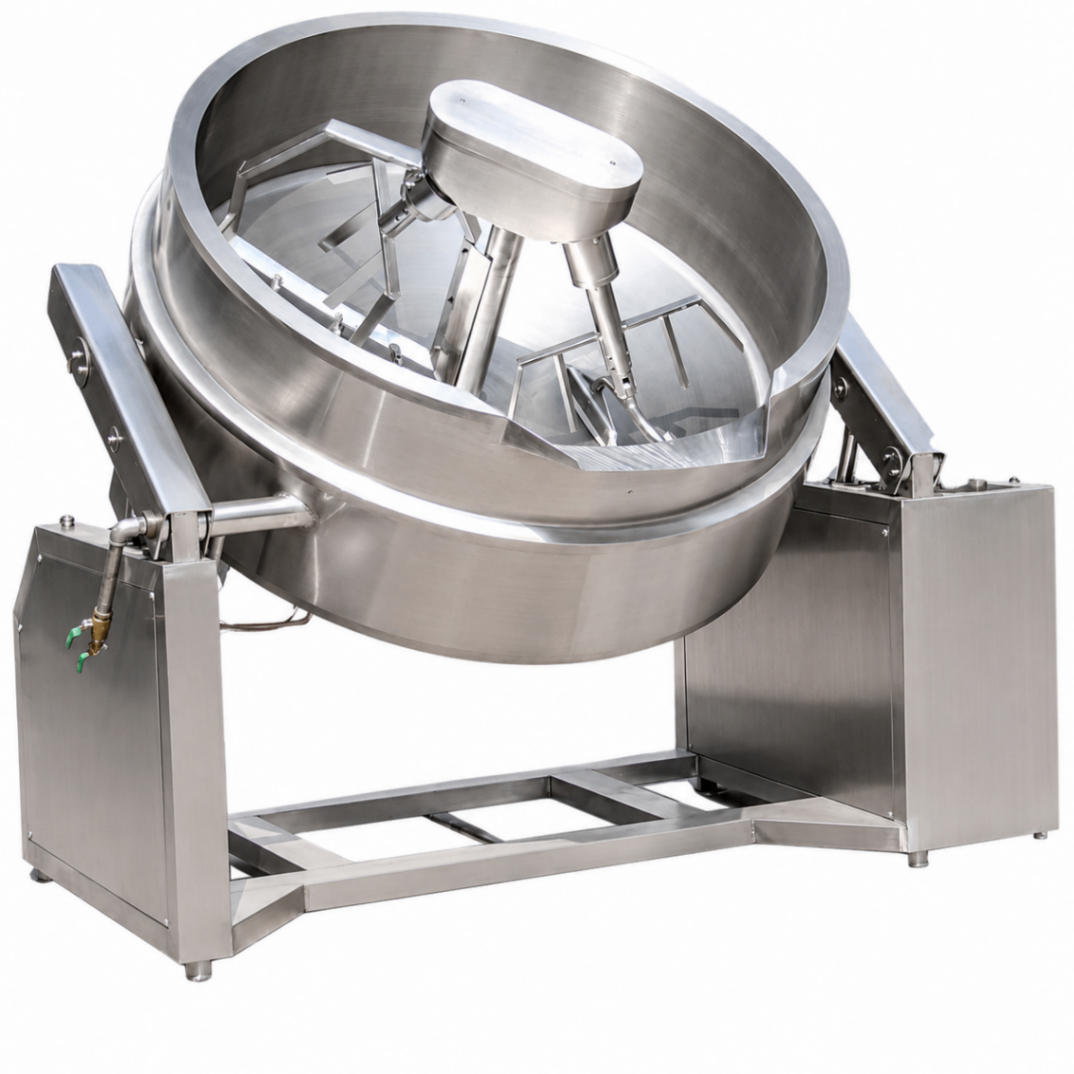

What is included • 600 L tilting kettle / tilting cooking pan. • Direct gas bottom-heating system. • Double-arm mixer: planetary head + scraper arm. • Hydraulic tilting system. • Electrically operated sealed lid. • Variable-speed control. • Caster wheels. • PLC control panel with touchscreen. Technical description • Factory model: JL-XXKL-RQ600 | LeanZupply reference: JIALI-GASDIR-600-PLAN-FULL. • Factory model: JL-XXKL-RQ600. • Capacity: 600 L. • Heating system: direct gas heating to the bottom, without thermal-oil jacket. • Tilting system: hydraulic. • Tilting angle: 90°. • Agitation system: double-arm, planetary head + scraper arm. • Agitation speed: 0-35 rpm with variable-speed control. • Inner vessel diameter: 1300 mm. • Specified power: 4 + 0.75 kW. • Electrical supply: 380 V, 50 Hz, three-phase. • Lid: sealed and electrically operated. • Control system: PLC control panel with touchscreen. • Mobility: caster wheels. • Technical dimensions: 2000 × 1670 × 1475 mm. • Interior material: SUS 304 stainless steel. • Exterior material: SS 201 stainless steel. Commercial description This 600 L tilting kettle / tilting cooking pan combines direct gas heating, planetary agitation and hydraulic tilting in a single machine. The heating system applies heat directly to the bottom of the vessel, providing a solution for processes requiring strong thermal response together with continuous mixing. The planetary agitator operates at an adjustable speed of 0 to 35 rpm through a variable-speed drive, allowing the mixing action to be adapted to different consistencies and processing requirements. This configuration is particularly suitable for sauces, fillings, creams, food bases, processed meat products, cooked preparations and other higher-viscosity products requiring homogeneous mixing during heating. The hydraulic tilting system provides up to 90° of vessel inclination, facilitating the discharge of large product volumes and reducing manual handling at the end of the process. The electrically operated sealed lid allows the vessel to remain closed during operations where required. The FULL configuration also includes caster wheels and a PLC touchscreen control panel, providing easier machine movement and centralized control of its main operating functions. Its 600 L capacity makes it suitable for industrial operations processing larger batches and requiring an integrated planetary mixing system. Keywords Industrial tilting kettle, industrial tilting cooking pan, 600 L gas kettle, 600 L tilting cooking pan, direct gas kettle, direct bottom heating kettle, non-jacketed kettle, hydraulic tilting kettle, planetary mixer kettle, industrial planetary agitator, 90 degree tilting kettle, electric sealed lid kettle, PLC kettle, touchscreen kettle, caster wheel kettle, sauce cooking kettle, filling processing kettle, cream processing kettle, high viscosity food kettle, large capacity cooking kettle, industrial cooking equipment, food processing equipment, SUS 304 stainless steel, JL-XXKL-RQ600, JIALI-GASDIR-600-PLAN-FULL.
