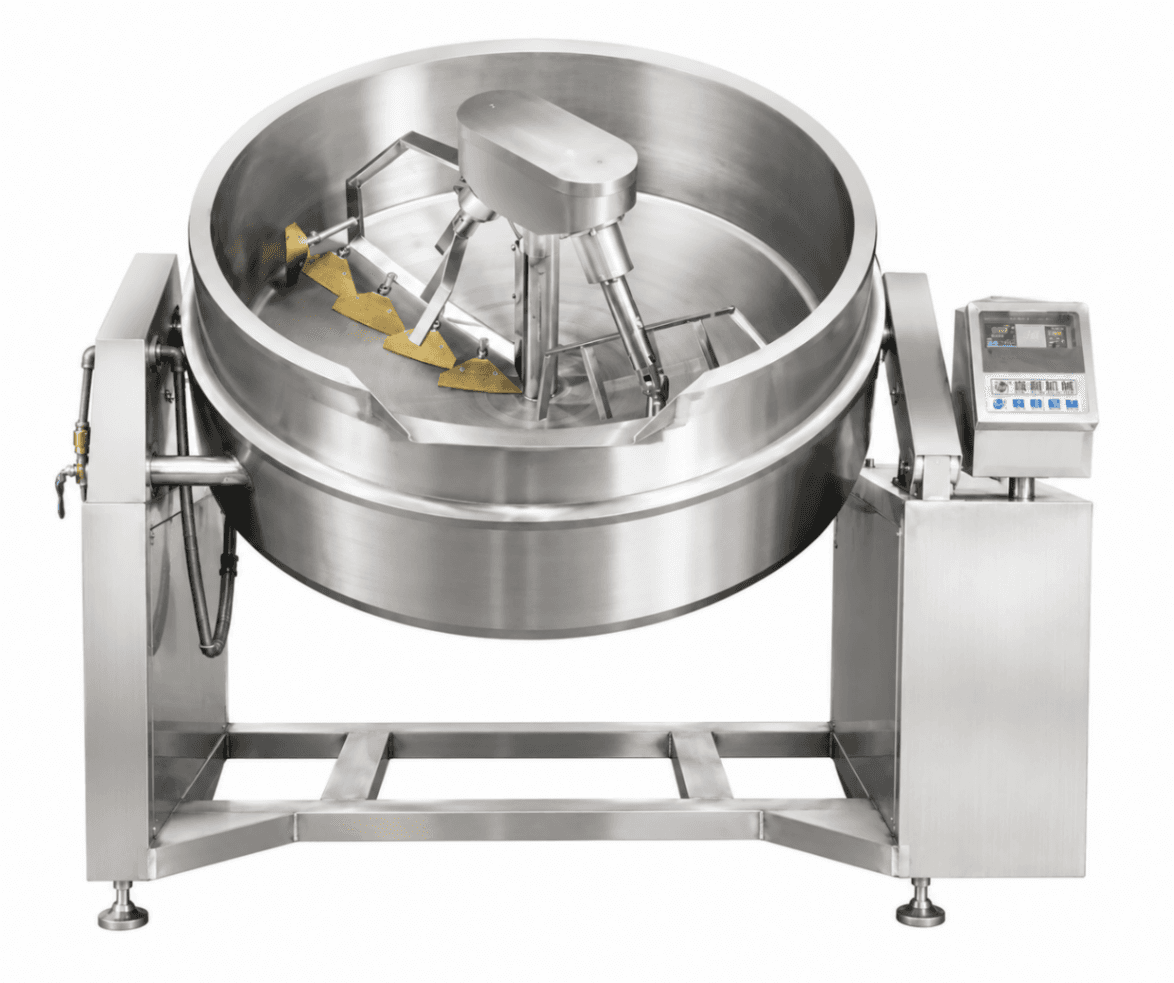

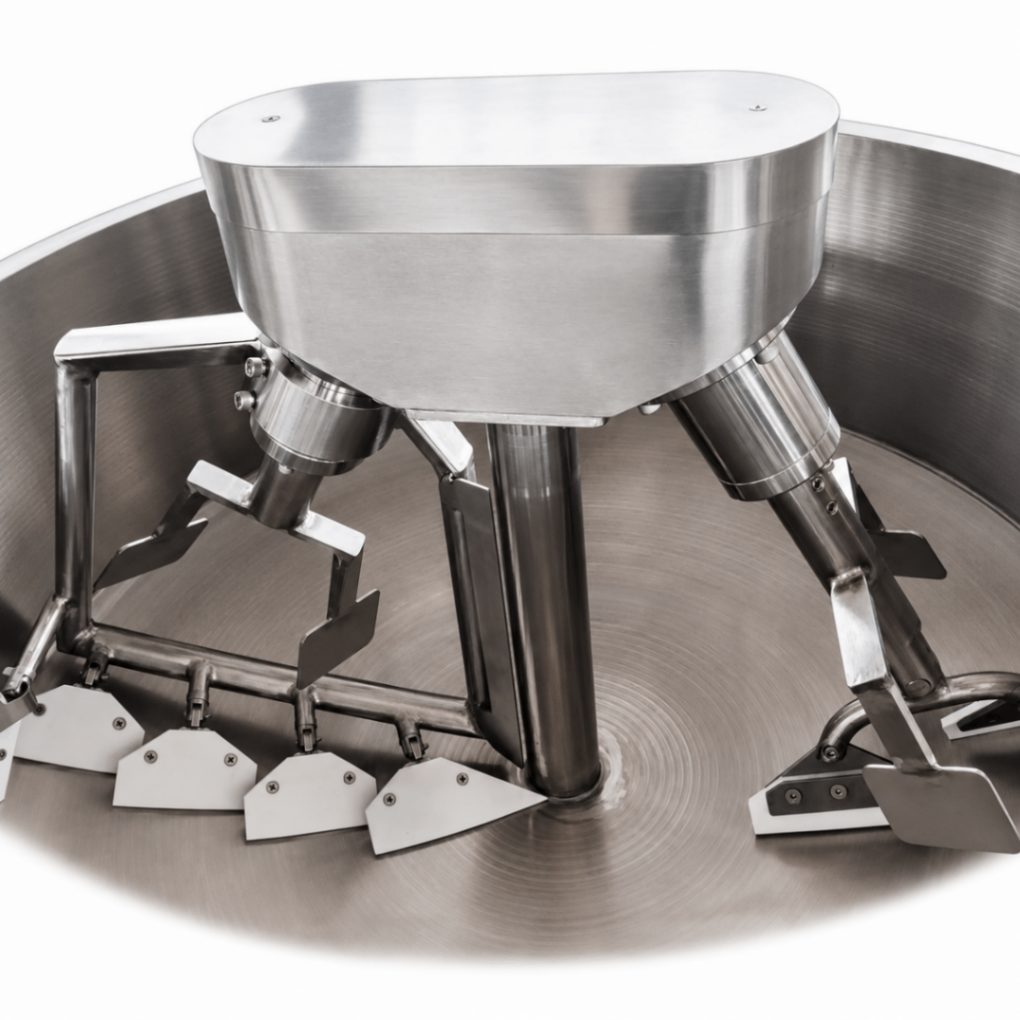

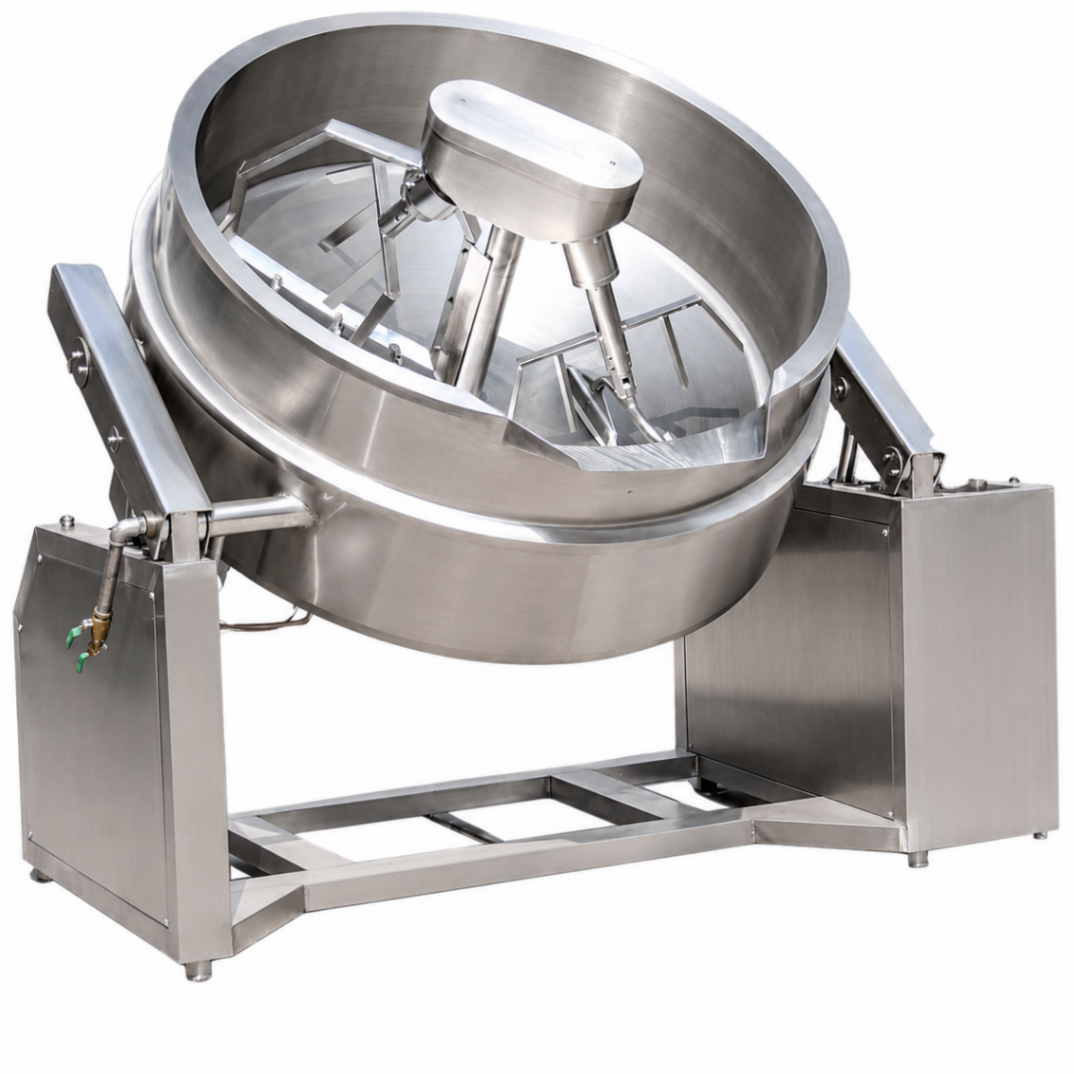

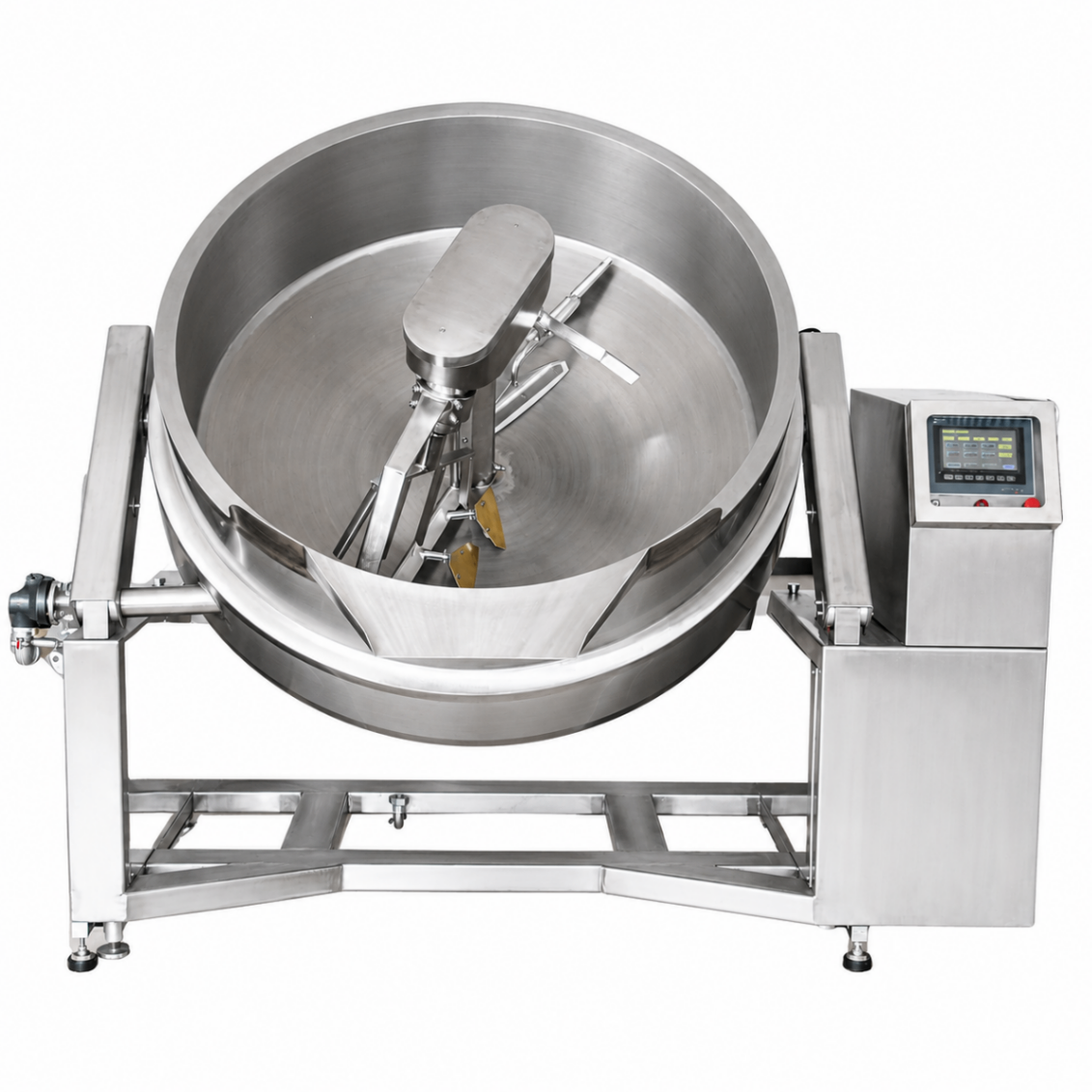

What is included • 400 L tilting kettle / tilting cooking pan. • Direct gas bottom-heating system. • Double-arm mixer: planetary head + scraper arm. • Hydraulic tilting system. • Electrically operated sealed lid. • Variable-speed control. • Caster wheels. • PLC control panel with touchscreen. Technical description • Factory model: JL-XXKL-RQ400 | LeanZupply reference: JIALI-GASDIR-400-PLAN-FULL. • Factory model: JL-XXKL-RQ400. • Capacity: 400 L. • Heating system: direct gas heating to the bottom, without thermal-oil jacket. • Tilting system: hydraulic. • Tilting angle: 90°. • Agitation system: double-arm, planetary head + scraper arm. • Agitation speed: 0-35 rpm with variable-speed control. • Inner vessel diameter: 1100 mm. • Specified power: 2.2 + 0.75 kW. • Electrical supply: 380 V, 50 Hz, three-phase. • Lid: sealed and electrically operated. • Control system: PLC control panel with touchscreen. • Mobility: caster wheels. • Technical dimensions: 1880 × 1410 × 1350 mm. • Interior material: SUS 304 stainless steel. • Exterior material: SS 201 stainless steel. Commercial description This 400 L tilting kettle / tilting cooking pan combines direct gas heating, planetary agitation and hydraulic tilting in a single machine. The gas-heating system applies heat directly to the bottom of the vessel, providing a solution for operations requiring intensive heating together with continuous mixing. The planetary agitator operates at an adjustable speed of 0 to 35 rpm through a variable-speed drive, allowing the mixing action to be adapted to different consistencies and processing requirements. This configuration is particularly suitable for sauces, fillings, creams, food bases, processed meat products, cooked preparations and other higher-viscosity products requiring homogeneous mixing during heating. The hydraulic tilting system provides up to 90° of vessel inclination, facilitating product discharge at the end of the process and reducing manual handling of a large-capacity vessel. The electrically operated sealed lid allows the vessel to remain closed during operations where required. The FULL configuration also includes caster wheels and a PLC touchscreen control panel, providing easier machine movement and centralized control of its main operating functions. Keywords Industrial tilting kettle, industrial tilting cooking pan, 400 L gas kettle, 400 L tilting cooking pan, direct gas kettle, direct bottom heating kettle, non-jacketed kettle, hydraulic tilting kettle, planetary mixer kettle, industrial planetary agitator, 90 degree tilting kettle, electric sealed lid kettle, PLC kettle, touchscreen kettle, caster wheel kettle, sauce cooking kettle, cream processing kettle, filling processing kettle, high viscosity food kettle, industrial cooking equipment, food processing equipment, SUS 304 stainless steel, JL-XXKL-RQ400, JIALI-GASDIR-400-PLAN-FULL.
