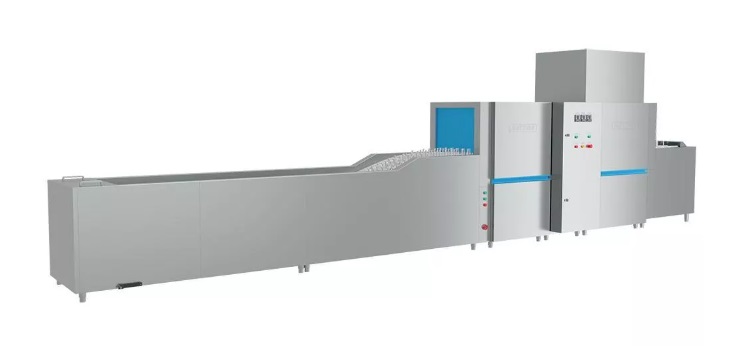

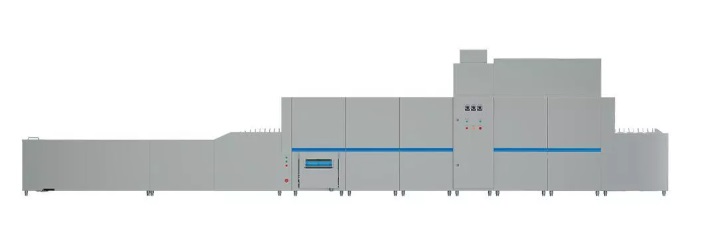

DETAILED DESCRIPTION The HATTON HT-SC1X-510A Industrial Conveyor Dishwasher with Bubbling Tank is a high-capacity professional machine designed for the continuous and automated washing of large volumes of tableware in restaurants, hotels, canteens, industrial kitchens, catering companies, and food-service establishments requiring an efficient and continuous washing process. The HT-SC1X-510A incorporates a conveyor system that allows tableware to be continuously fed into the machine. Its maximum washing capacity reaches 3,000-4,500 dishes per hour, providing high productivity for establishments handling large volumes of tableware. The machine features a 510 mm entrance width and a maximum washing height of 420 mm, allowing it to process different types of plates, containers, and utensils. Its washing system is configured with one main washing stage, double rinsing, and a bubbling tank designed to complement the cleaning process through the action of moving water. The HT-SC1X-510A features a 90-liter wash tank and a 15-liter booster tank. The washing temperature ranges from 55 to 60 °C, while the rinsing temperature reaches 80-85 °C. Water consumption is approximately 400-500 liters per hour. The heating system can operate by electricity or steam, providing flexibility for different professional installations. The machine requires a 380 V, 50 Hz, three-phase electrical supply and has a total power requirement of 64 kW. TECHNICAL SPECIFICATIONS: Model: HT-SC1X-510A. Equipment type: Industrial commercial conveyor dishwasher with bubbling tank. Application: Professional and continuous washing of tableware, plates, containers, and utensils. Overall dimensions: 5,500 × 1,000 × 1,463 mm. Weight: 619 kg. Entrance width: 510 mm. Maximum washing height: 420 mm. Maximum washing capacity: 3,000-4,500 dishes per hour. Water consumption: Approximately 400-500 liters per hour. Wash tank capacity: 90 liters. Booster tank capacity: 15 liters. Washing temperature: 55-60 °C. Rinsing temperature: 80-85 °C. Water supply pressure: 0.15-0.4 MPa. Water inlet diameter: G3/4" (DN20). Drain pipe diameter: 50 mm. Supply water temperature: 10-60 °C. Heating system: Electric or steam. Electrical supply: 380 V, 50 Hz, 3N. Total power: 64 kW. Washing configuration: 1 main washing stage + double rinsing. Additional system: Bubbling tank. Transport system: Continuous conveyor belt. DESIGN AND TECHNOLOGY FEATURES: Continuous Conveyor System: The HT-SC1X-510A uses a conveyor belt that allows tableware to be continuously fed into the machine, facilitating a steady flow throughout the washing process. High Washing Capacity: With a maximum capacity of 3,000-4,500 dishes per hour, the machine is designed for establishments that need to process large quantities of tableware. Bubbling Tank: The system incorporates a bubbling tank that complements the cleaning process through the action of moving water, helping to treat dirt on tableware before subsequent stages of the process. Main Washing Stage: The main washing stage is designed to remove food residues, grease, and accumulated dirt from tableware. Double Rinsing: The double-rinsing system completes the cleaning process after the main washing stage and helps remove detergent residues. 90-Liter Wash Tank: The high-capacity wash tank provides the water volume required for continuous washing operations. 15-Liter Booster Tank: The booster tank contributes to maintaining the temperature conditions required during the rinsing process. Temperature Control: The machine operates at 55-60 °C during washing and 80-85 °C during rinsing. Electric or Steam Heating: The system can use electric or steam heating, allowing the equipment to be adapted to different professional installations. High Operating Power: With a total power requirement of 64 kW and three-phase 380 V electrical supply, the HT-SC1X-510A is designed for high-capacity professional applications. 510 mm Entrance Width: The entrance opening allows tableware to be continuously and systematically fed into the conveyor system. 420 mm Maximum Washing Height: The available height allows the machine to handle different types of plates, containers, and utensils, including larger items. 400-500 Liters/Hour Water Consumption: Water consumption allows facilities to establish the required water supply capacity for high-volume operations. Professional-Duty Construction: The HT-SC1X-510A is designed for commercial and professional environments requiring a continuous tableware washing system. Multi-Stage Washing Process: The combination of the bubbling tank, main washing stage, and double rinsing allows tableware processing to be organized into different stages within the same system. INDUSTRIAL APPLICATIONS: The HT-SC1X-510A model is particularly suitable for: • Medium and large restaurants. • Hotels and hospitality establishments. • Institutional canteens. • School and university dining facilities. • Industrial kitchens. • Professional kitchens. • Central kitchens. • Catering companies and food-service providers. • Large-scale food-service companies. • Food production and distribution facilities. • High-capacity food-service facilities. • Businesses processing large volumes of tableware. • Establishments requiring continuous tableware washing. • Professional facilities requiring an industrial conveyor dishwasher. • Food-service businesses seeking to automate tableware washing and rinsing. • Facilities requiring a washing system with a bubbling tank. KEYWORDS: HT-SC1X-510A industrial dishwasher, HT-SC1X-510A, HATTON HT-SC1X-510A, industrial conveyor dishwasher, commercial conveyor dishwasher, industrial dishwasher with bubbling tank, high-capacity industrial dishwasher, 3,000 dishes per hour dishwasher, 4,500 dishes per hour dishwasher, 3,000-4,500 dishes per hour dishwasher, industrial dishwashing machine, restaurant dishwasher, hotel dishwasher, canteen dishwasher, catering dishwasher, industrial kitchen dishwasher, professional kitchen dishwasher, HATTON commercial dishwasher, industrial dishwasher with double rinsing, 64 kW industrial dishwasher, 380 V three-phase dishwasher, 90-liter industrial dishwasher, dishwasher with 15-liter booster tank, high-capacity industrial dishwasher, professional conveyor dishwasher, industrial tableware washing machine, industrial dishwashing equipment, large kitchen dishwasher, industrial dishwasher for hospitality, conveyor dishwasher for restaurants, dishwasher with bubbling system, continuous industrial dishwasher, hospitality equipment, industrial food-processing equipment.
