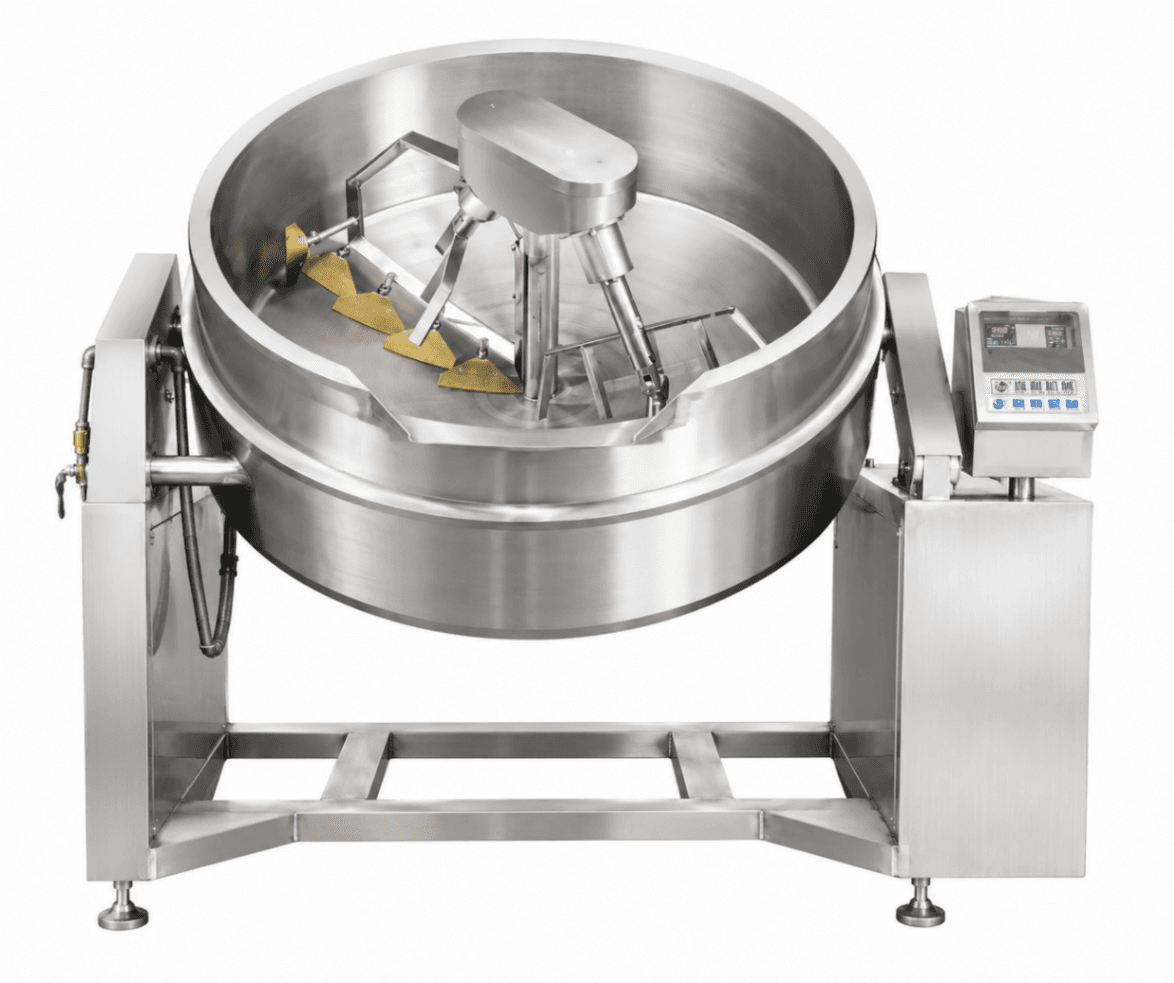

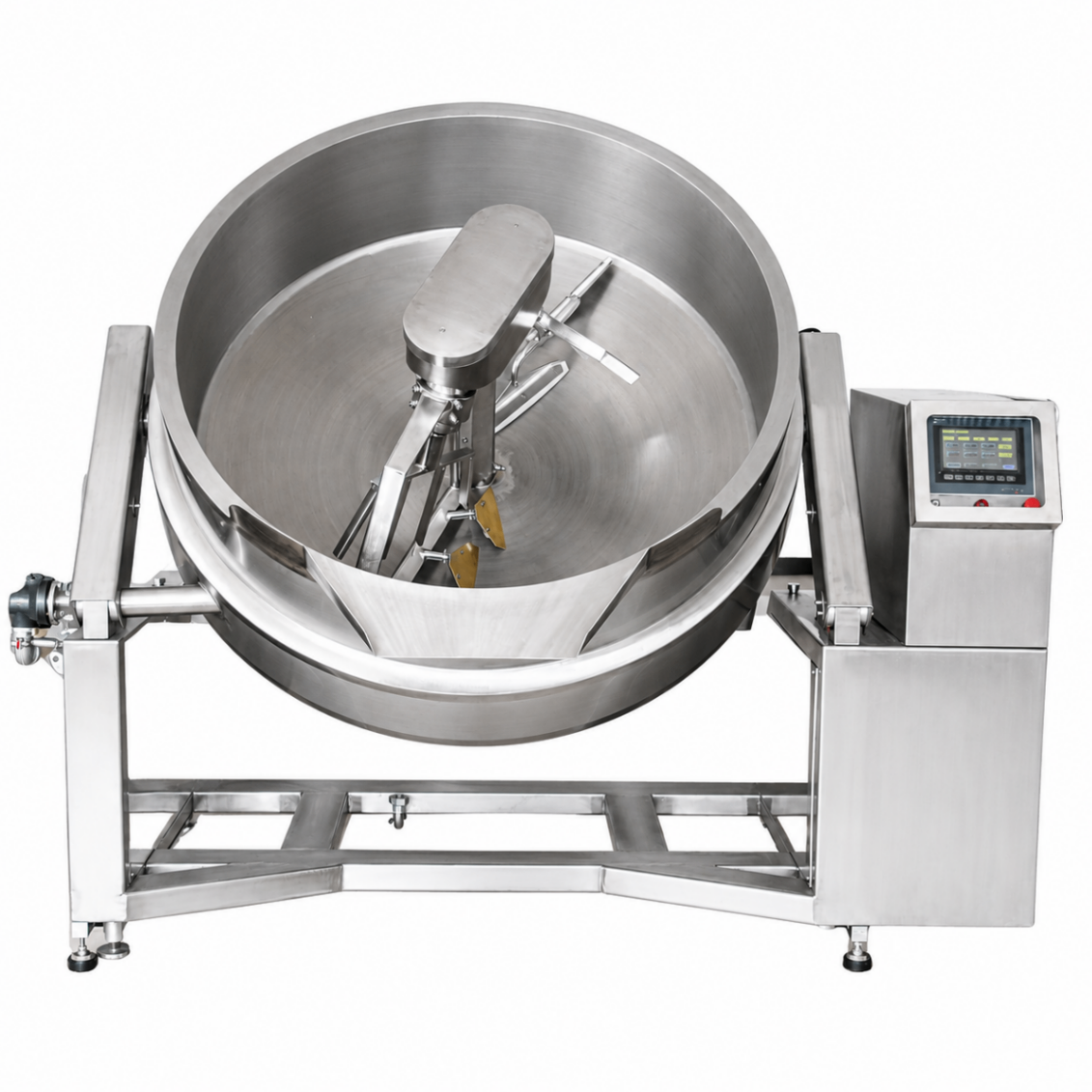

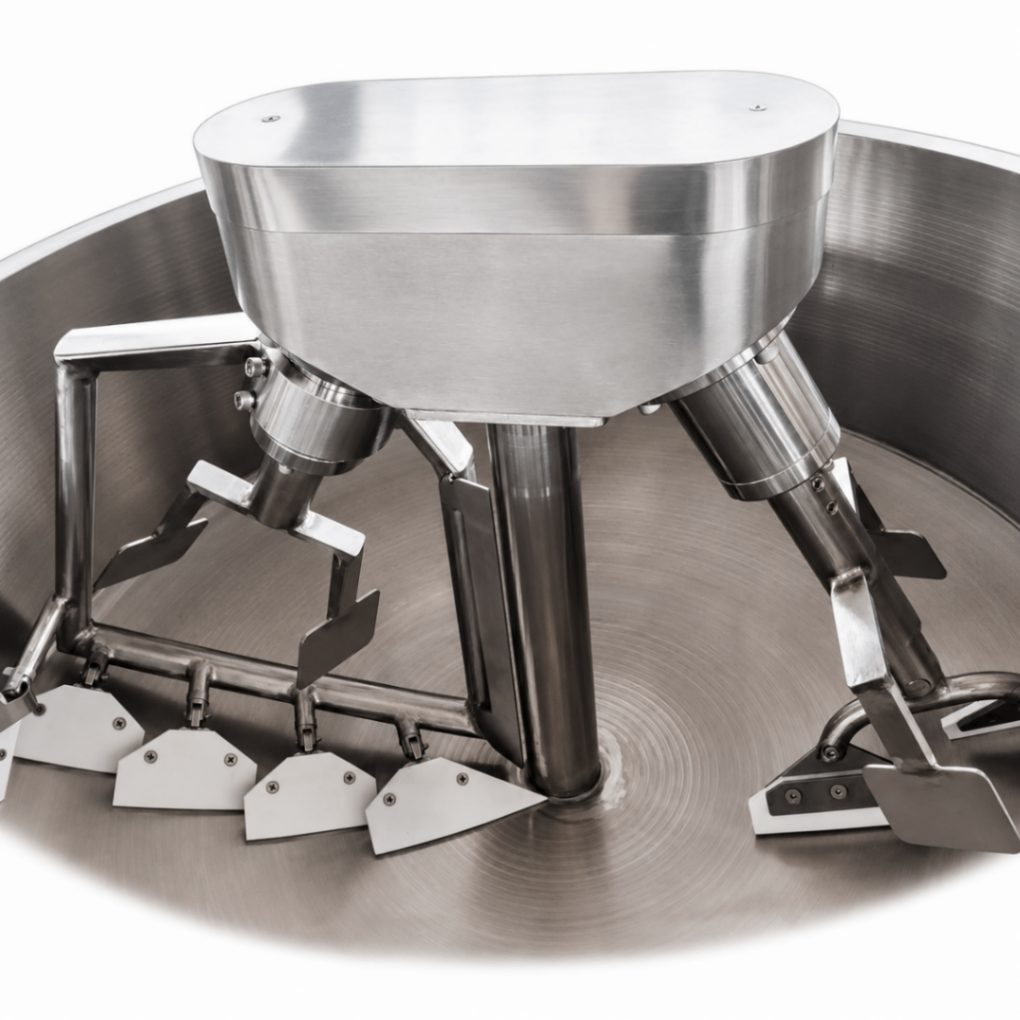

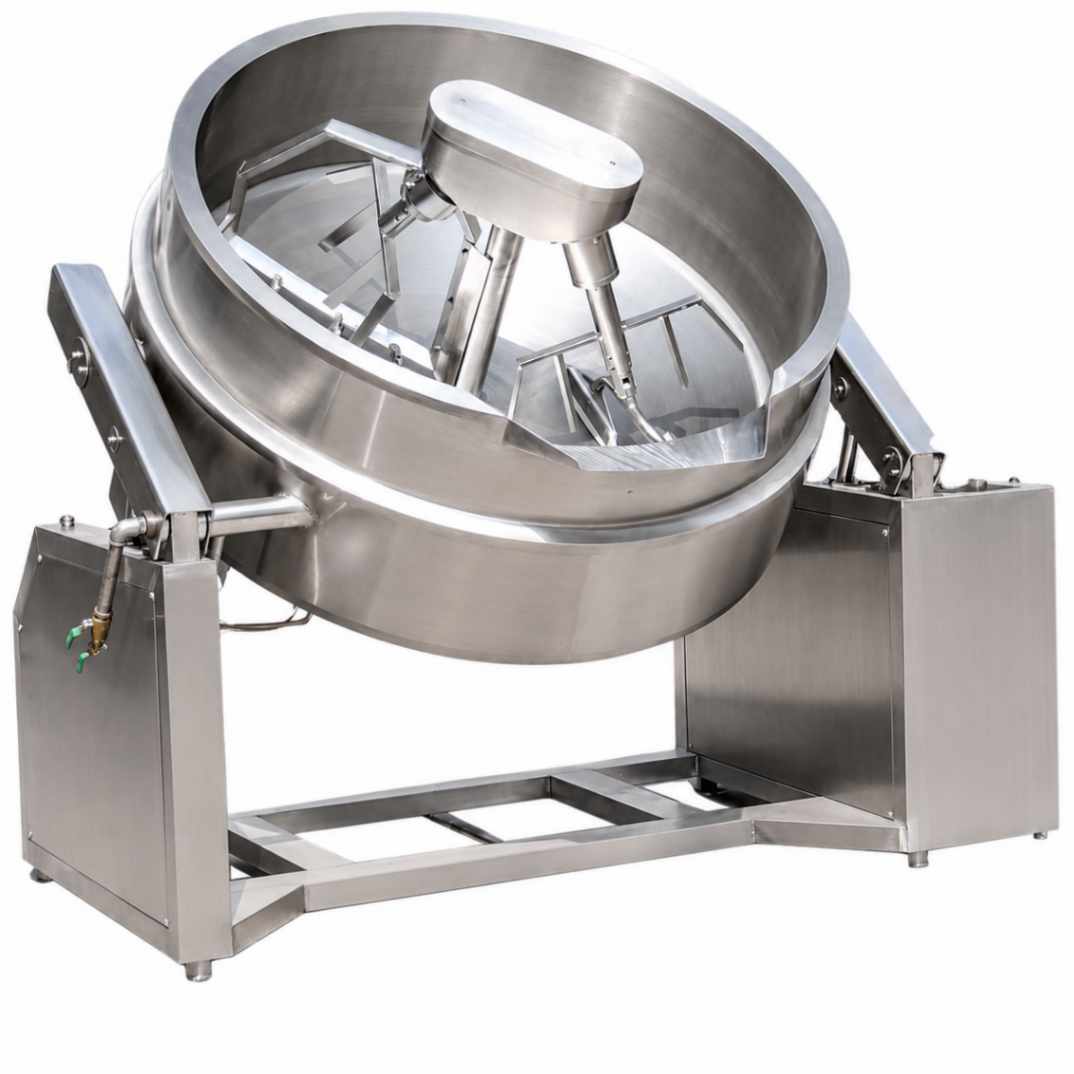

What is included • 600 L tilting kettle / tilting cooking pan. • Indirect gas heating system with thermal-oil jacket. • Double-arm mixer: planetary head + scraper arm. • Hydraulic tilting system. • Electrically operated sealed lid. • Variable-speed control. • Caster wheels. • PLC control panel with touchscreen. Technical description • Factory model: JL-XXKL-RQ600 | LeanZupply reference: JIALI-GASIND-600-PLAN-FULL. • Factory model: JL-XXKL-RQ600. • Capacity: 600 L. • Heating system: gas heating through a thermal-oil jacket. • Tilting system: hydraulic. • Tilting angle: 90°. • Agitation system: double-arm, planetary head + scraper arm. • Agitation speed: 0-35 rpm with variable-speed control. • Inner vessel diameter: 1300 mm. • Specified power: 4 + 0.75 kW. • Electrical supply: 380 V, 50 Hz, three-phase. • Specified gas consumption: approximately 6 kg/h. • Lid: sealed and electrically operated. • Control system: PLC control panel with touchscreen. • Mobility: caster wheels. • Technical dimensions: 2000 × 1670 × 1475 mm. • Interior material: SUS 304 stainless steel. • Exterior material: SS 201 stainless steel. Commercial description This 600 L tilting kettle / tilting cooking pan combines indirect gas heating through a thermal-oil jacket, planetary agitation and hydraulic tilting in a single machine. Indirect heat transfer prevents the flame from acting directly on the vessel and is suitable for cooking processes requiring more uniform heat distribution. The planetary agitator operates at an adjustable speed of 0 to 35 rpm through a variable-speed drive, allowing the mixing action to be adapted to different product consistencies and processing requirements. This configuration is particularly suitable for sauces, fillings, creams, food bases, processed meat products, cooked preparations and other higher-viscosity products requiring continuous mixing during heating. The hydraulic tilting system provides up to 90° of vessel inclination, facilitating the discharge of large product volumes and reducing manual handling at the end of the process. The electrically operated sealed lid allows the vessel to remain closed during operations where this is required. The FULL configuration also includes caster wheels and a PLC control panel with touchscreen, providing easier machine movement and centralized control of its main operating functions. Its 600 L capacity makes the machine suitable for industrial operations processing larger batches while requiring an integrated planetary mixing system. Keywords Industrial tilting kettle, industrial tilting cooking pan, 600 L gas kettle, 600 L tilting cooking pan, indirect gas kettle, thermal oil jacketed kettle, hydraulic tilting kettle, planetary mixer kettle, industrial planetary agitator, 90 degree tilting kettle, electric sealed lid kettle, PLC kettle, touchscreen kettle, caster wheel kettle, sauce cooking kettle, filling processing kettle, cream processing kettle, high viscosity food kettle, large capacity cooking kettle, industrial cooking equipment, food processing equipment, SUS 304 stainless steel, JL-XXKL-RQ600, JIALI-GASIND-600-PLAN-FULL.
