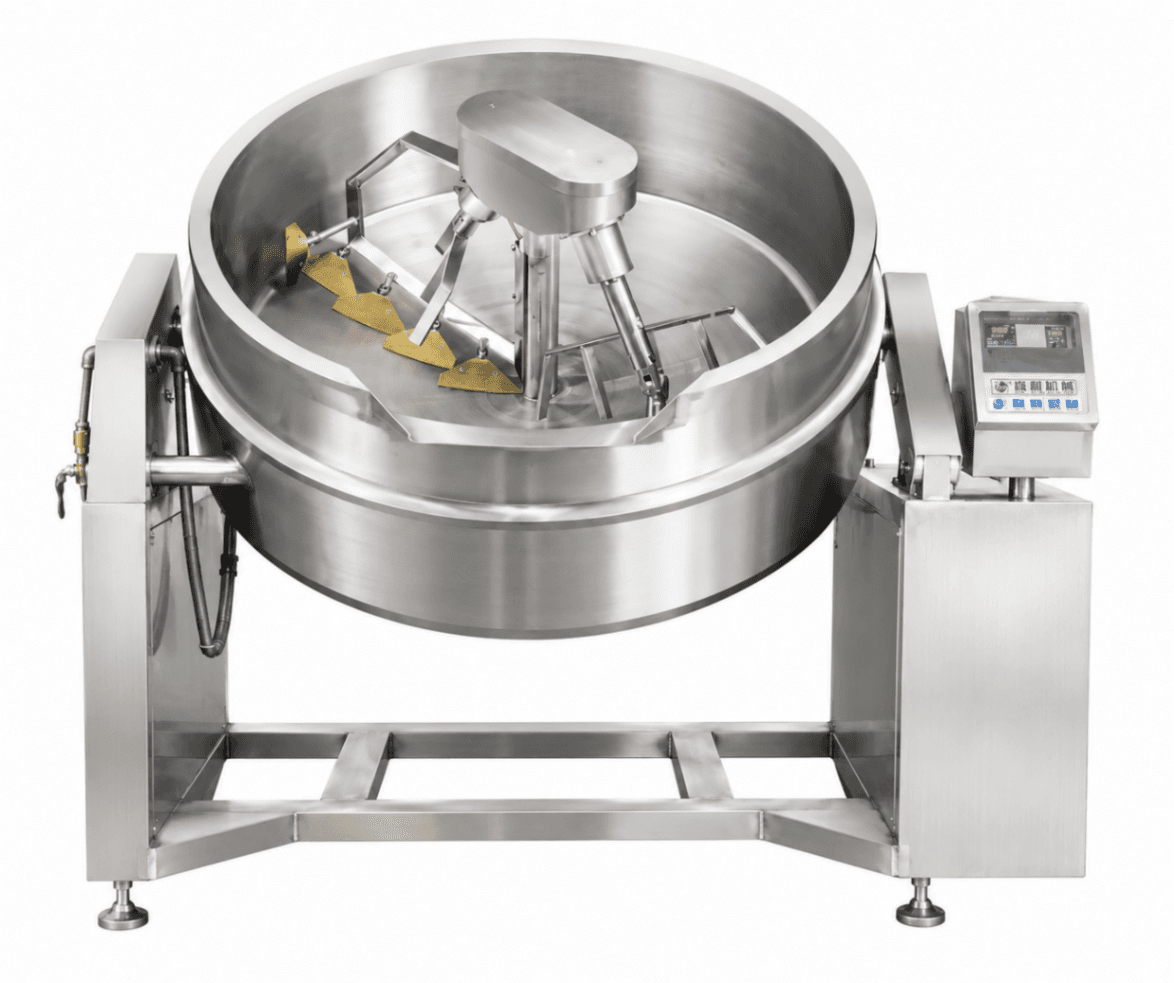

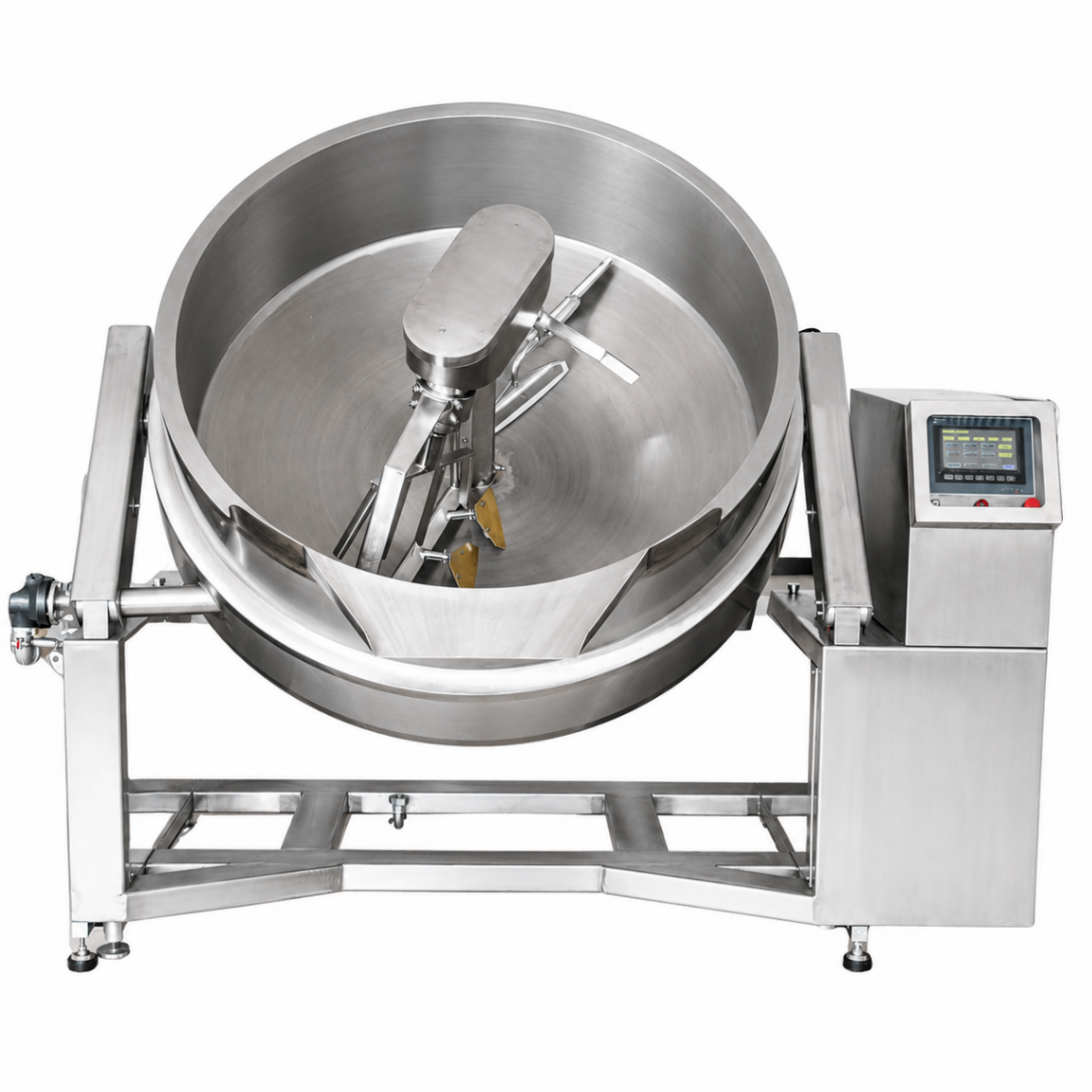

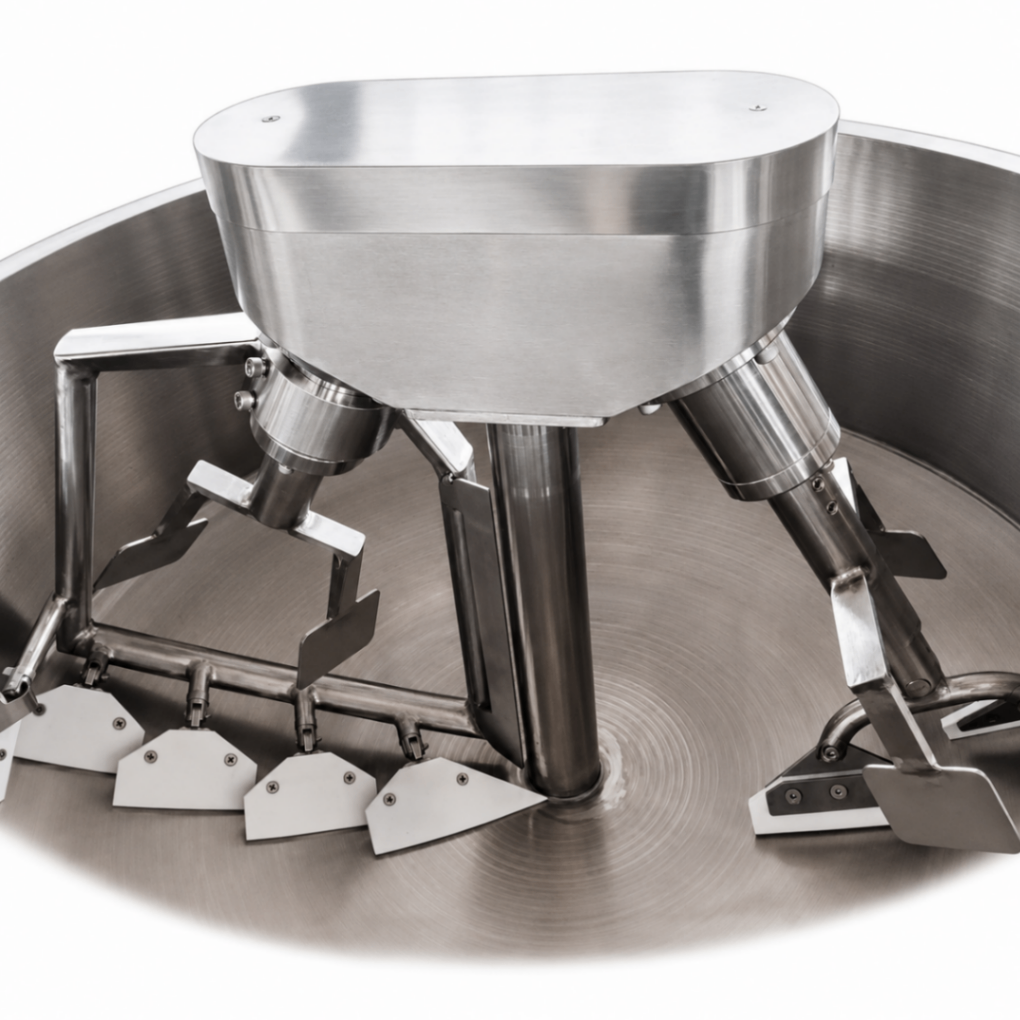

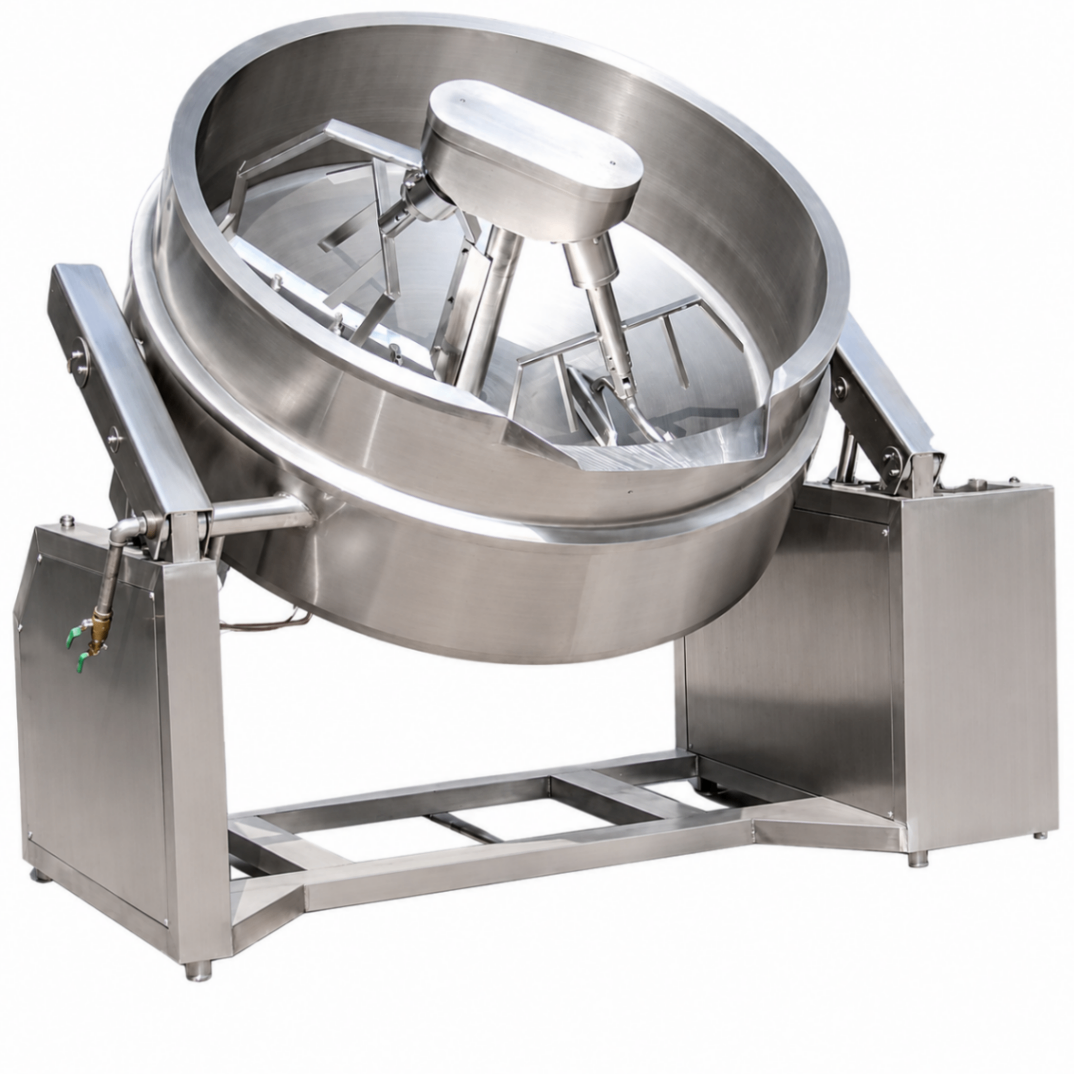

What is included • 400 L tilting kettle / tilting cooking pan. • Indirect gas heating system with thermal-oil jacket. • Double-arm mixer: planetary head + scraper arm. • Hydraulic tilting system. • Electrically operated sealed lid. • Variable-speed control. • Caster wheels. • PLC control panel with touchscreen. Technical description • Factory model: JL-XXKL-RQ400 | LeanZupply reference: JIALI-GASIND-400-PLAN-FULL. • Capacity: 400 L. • Heating system: gas heating through a thermal-oil jacket. • Tilting system: hydraulic. • Tilting angle: 90°. • Agitation system: double-arm, planetary head + scraper arm. • Agitation speed: 0-35 rpm with variable-speed control. • Inner vessel diameter: 1100 mm. • Specified power: 2.2 + 0.75 kW. • Electrical supply: 380 V, 50 Hz, three-phase. • Specified gas consumption: approximately 4.5 kg/h. • Lid: sealed and electrically operated. • Control system: PLC control panel with touchscreen. • Mobility: caster wheels. • Technical dimensions: 1880 × 1410 × 1350 mm. • Interior material: SUS 304 stainless steel. • Exterior material: SS 201 stainless steel. Commercial description This 400 L tilting kettle / tilting cooking pan combines indirect gas heating through a thermal-oil jacket, planetary agitation and hydraulic tilting in a single machine. Indirect heat transfer prevents the flame from acting directly on the vessel and is suitable for processes where more uniform heat distribution is required. The planetary agitator operates at an adjustable speed of 0 to 35 rpm through a variable-speed drive, allowing the mixing action to be adapted to different consistencies and processes. This configuration is particularly suitable for sauces, fillings, creams, food bases, processed meat products and other preparations requiring heating together with continuous mixing. The hydraulic tilting system provides up to 90° of vessel inclination, facilitating product discharge at the end of the process and reducing manual handling of a large-capacity vessel. The electrically operated sealed lid helps keep the vessel closed during operation when required by the process. The FULL configuration also includes caster wheels and a PLC control panel with touchscreen, providing easier machine movement and centralized control of the main operating functions. Keywords Industrial tilting kettle, industrial tilting cooking pan, 400 L gas kettle, 400 L tilting cooking pan, indirect gas kettle, thermal-oil jacketed kettle, hydraulic tilting kettle, planetary mixer kettle, industrial planetary agitator, electric sealed lid kettle, PLC kettle, touchscreen kettle, caster wheel kettle, sauce cooking kettle, cream processing kettle, filling processing kettle, high-viscosity food kettle, industrial cooking equipment, food processing equipment, SUS 304 stainless steel, JL-XXKL-RQ400, JIALI-GASIND-400-PLAN-FULL.
