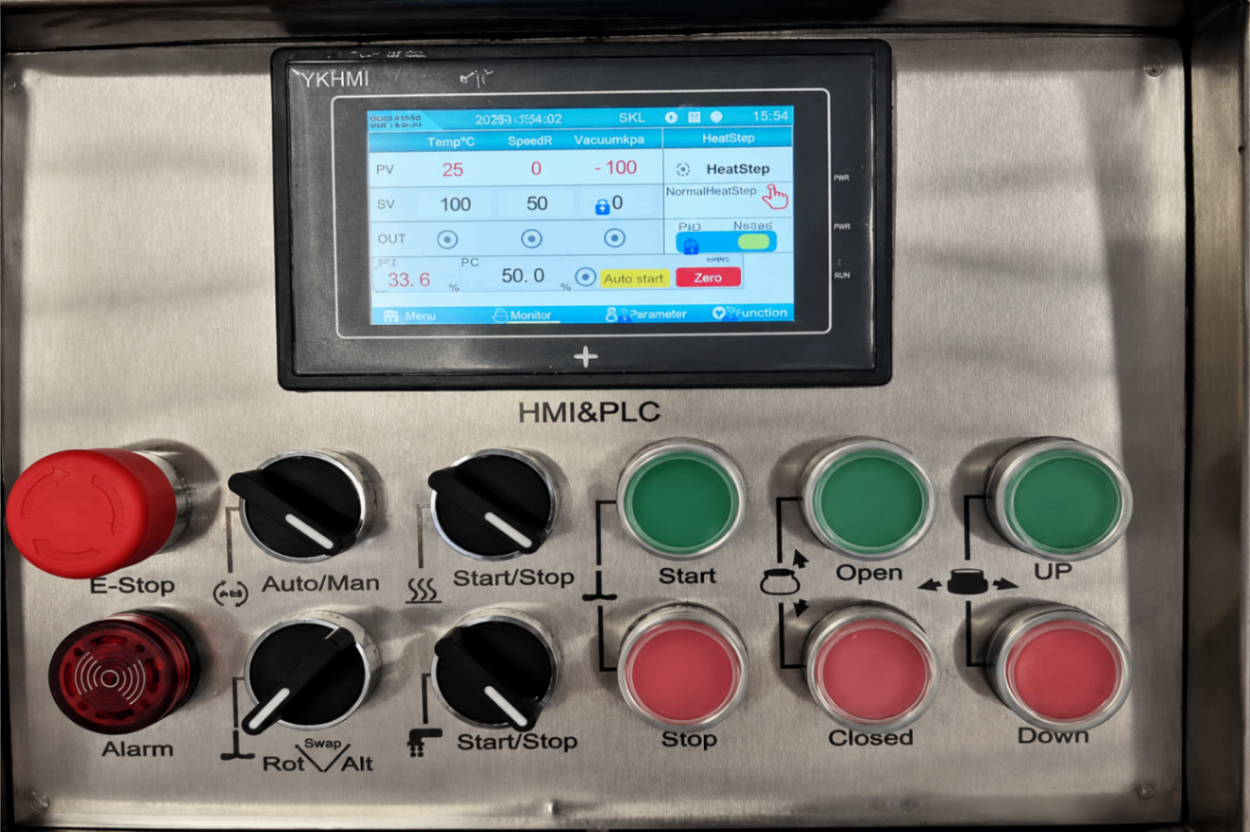

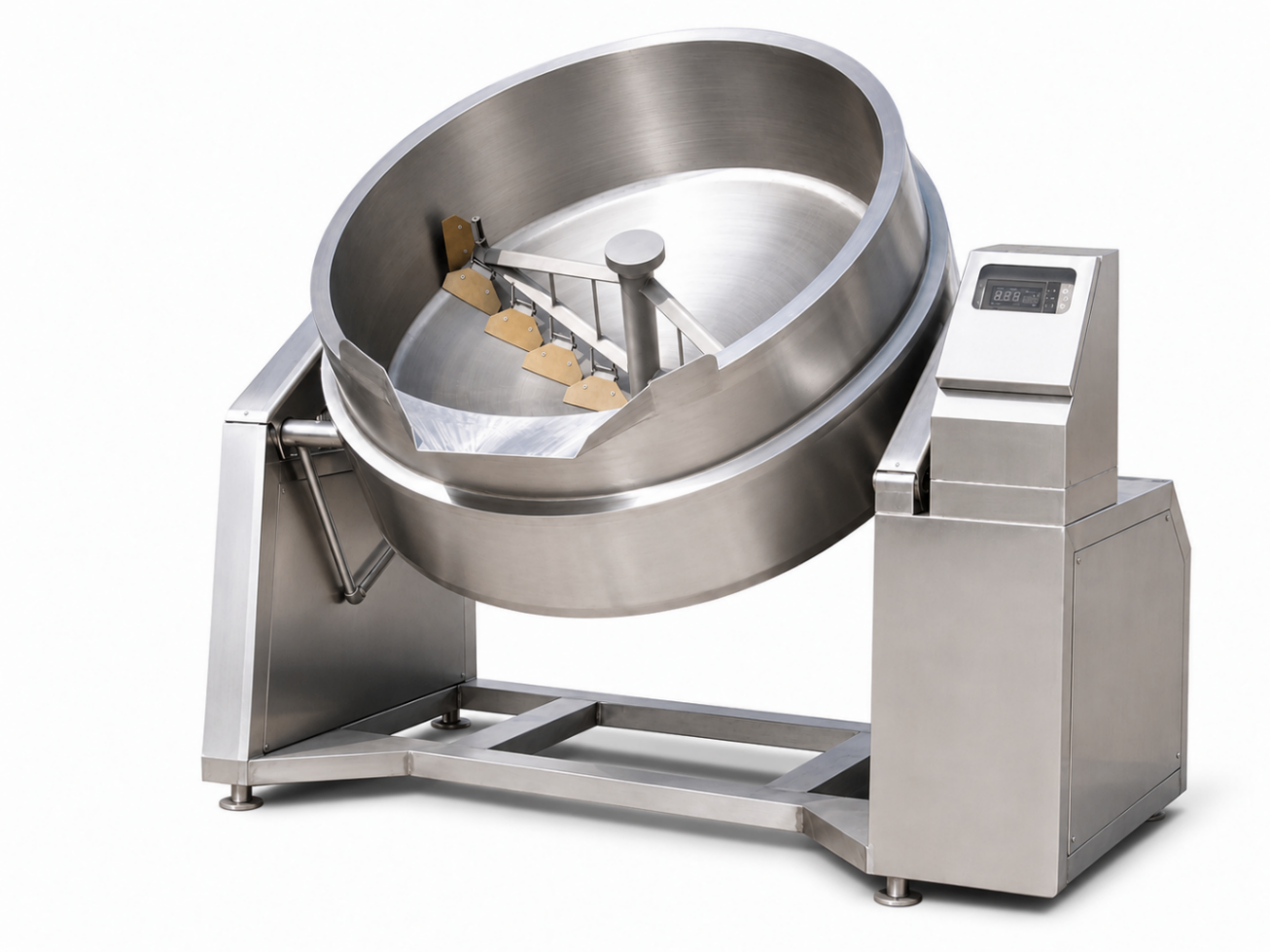

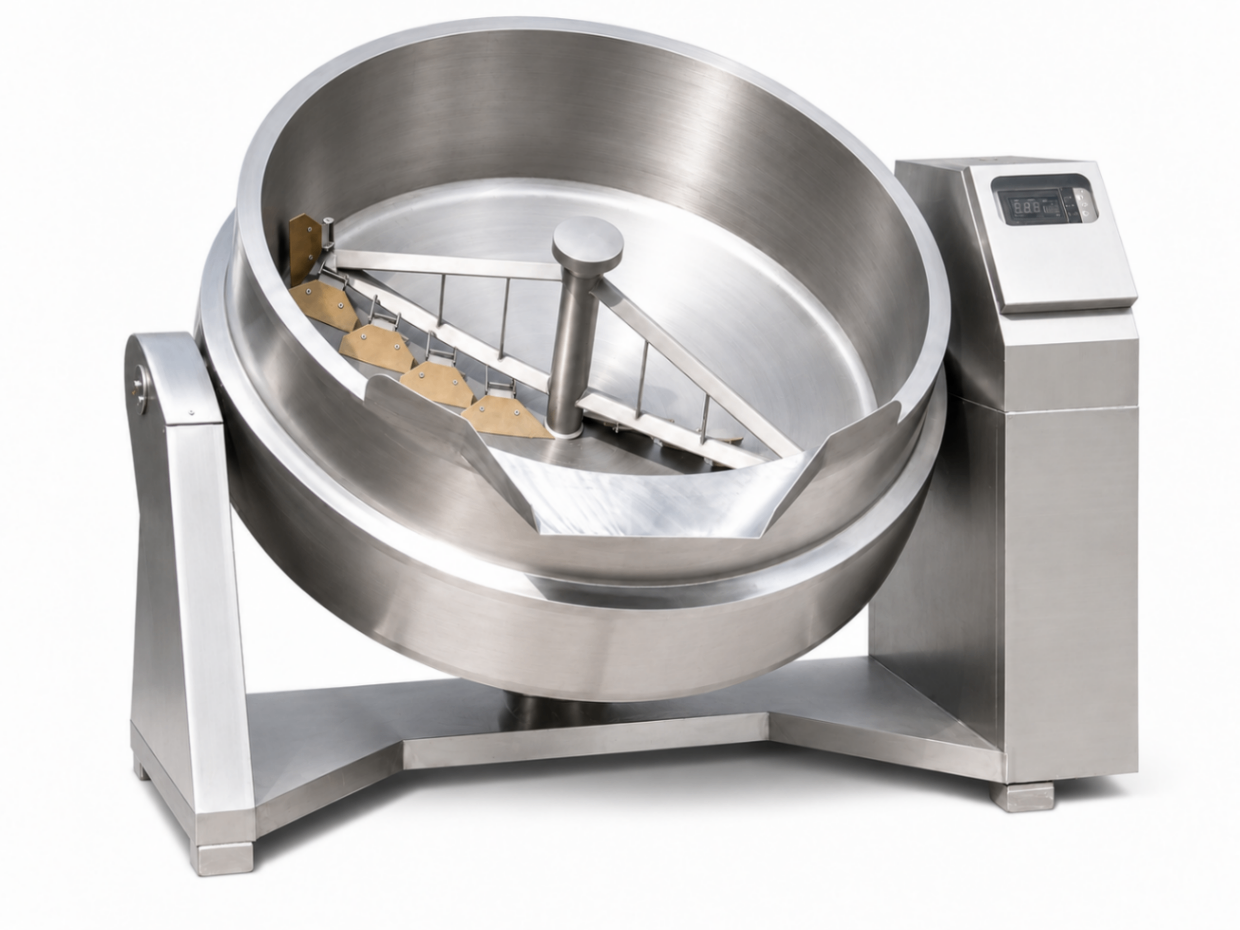

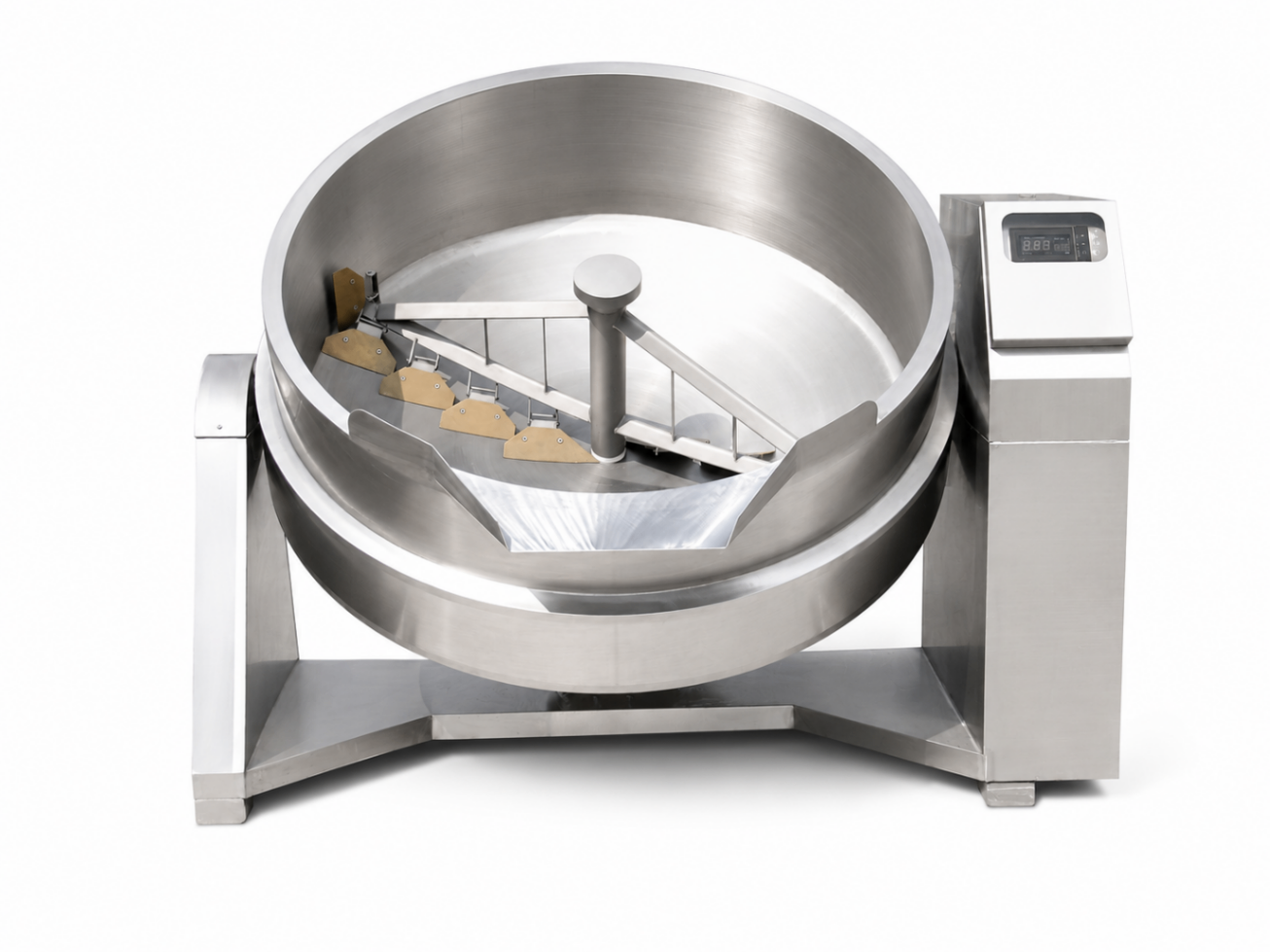

What is included • Tilting kettle / tilting cooking pan. • Standard mixer: double-arm with copper scrapers or four-claw, at the customer's choice, same price. • Temperature control. • Variable-speed drive. • Sealed electrical control cabinet. • Electrically operated sealed lid. • Caster wheels. • PLC control panel with touchscreen. • External steam generator not included. Technical description • Factory model: JL-XKJG-Q400 | LeanZupply reference: JIALI-VAPOR-400-STD-FULL. • Capacity: 400 L. • Heating system: steam jacket. • Steam source: requires an external steam generator, not included. • Agitation system: standard, double-arm with copper scrapers or four-claw, at the customer's choice (same price). • Agitation speed: 0–29 rpm through variable-speed control. • Control system: PLC control panel with touchscreen. • Lid: sealed and electrically operated. • Mobility: caster wheels. • Tilting system: not specified in the available manufacturer information. • Dimensions: 1650 × 1250 × 900 mm. • Internal pot diameter: 1100 mm. • Motor power: 2.2 kW. • Electrical voltage: 380 V. • Working pressure: 0.3 MPa. • Maximum temperature: 135 °C. • Interior material: SUS 304 stainless steel. • Exterior material: SS 201 stainless steel. Commercial description This 400 L tilting kettle / tilting cooking pan is designed for industrial kitchens and food-processing facilities that need to combine steam heating and double-arm agitation in a single machine. The steam jacket transfers heat to the vessel, while the copper scrapers help keep the product moving during processing. It is recommended for food preparations that require controlled heating and adjustable mixing in larger batches. The variable-speed drive allows agitation to be adjusted between 0 and 29 rpm according to the requirements of each process. The FULL configuration includes an electrically operated sealed lid, caster wheels and a PLC control panel with touchscreen. These features improve machine handling and mobility while centralizing control of its main functions. An external steam generator is essential for operation and is not included. Keywords Industrial tilting kettle, industrial tilting cooking pan, 400 L steam kettle, steam-jacketed cooking pan, steam-jacketed kettle, double-arm mixer kettle, double-arm agitator, copper scrapers, variable-speed kettle, electrically operated sealed lid, caster wheels, PLC controlled kettle, touchscreen control, industrial steam cooking equipment, 0.3 MPa working pressure, external steam generator, SUS 304 stainless steel, JIALI-VAPOR-400-STD-FULL.
