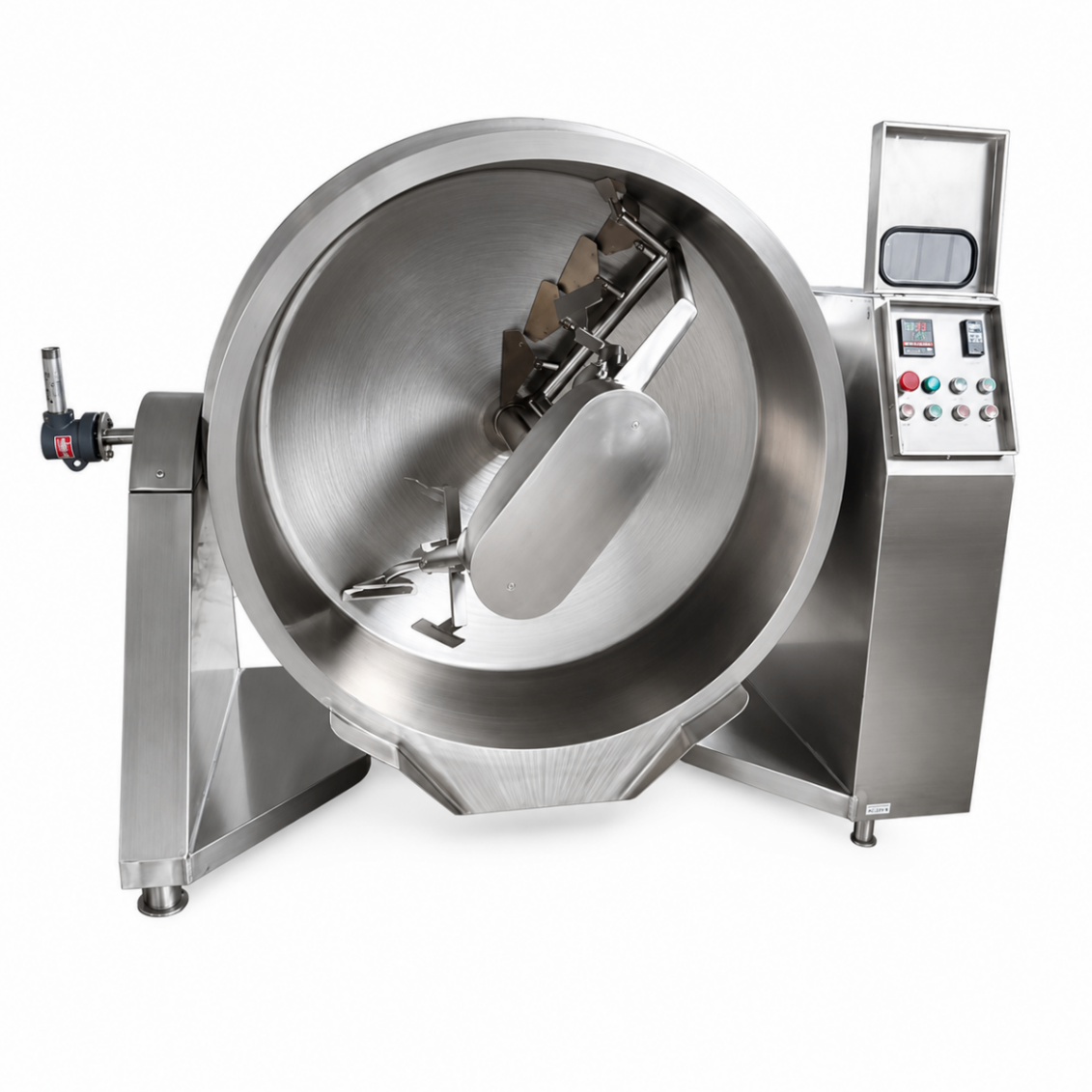

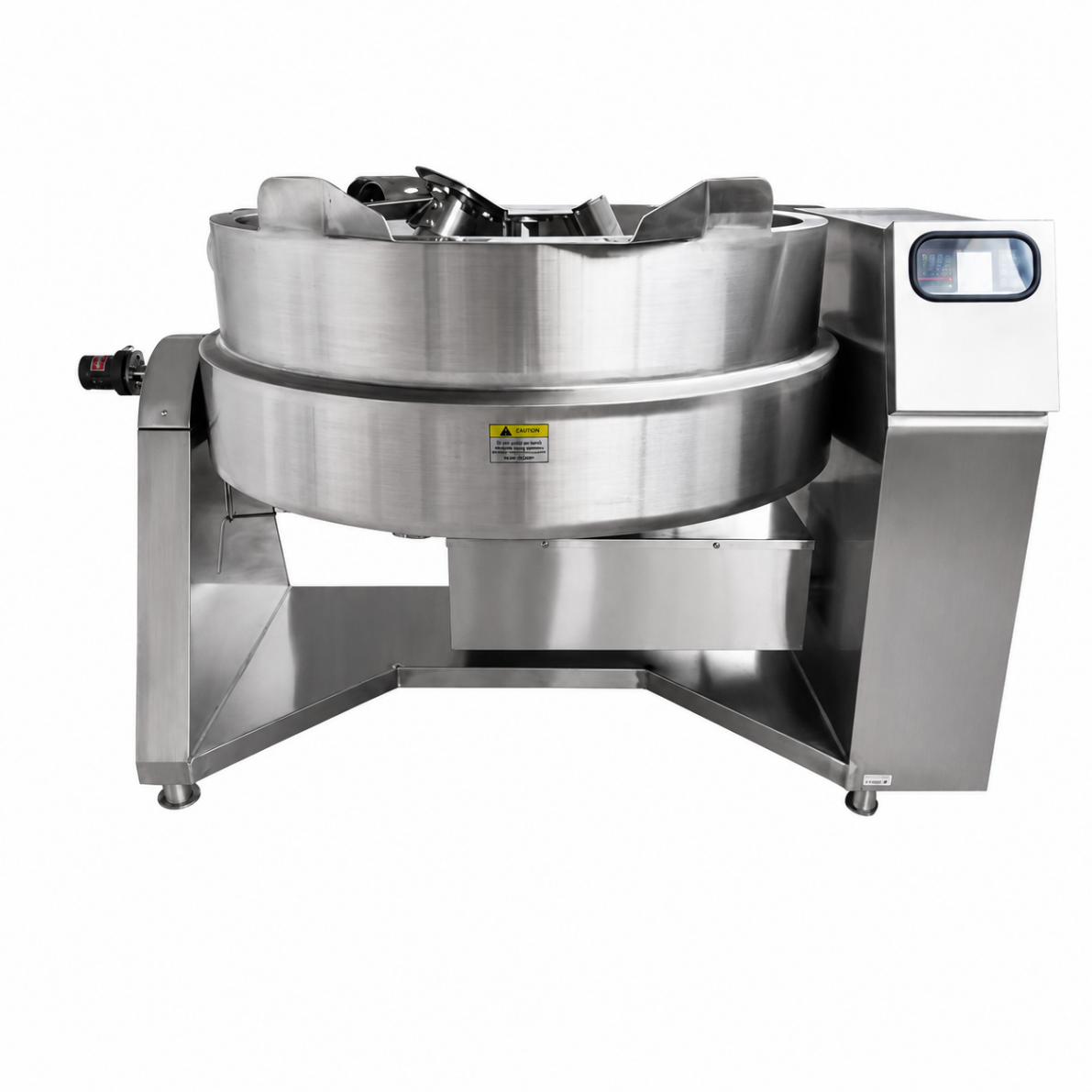

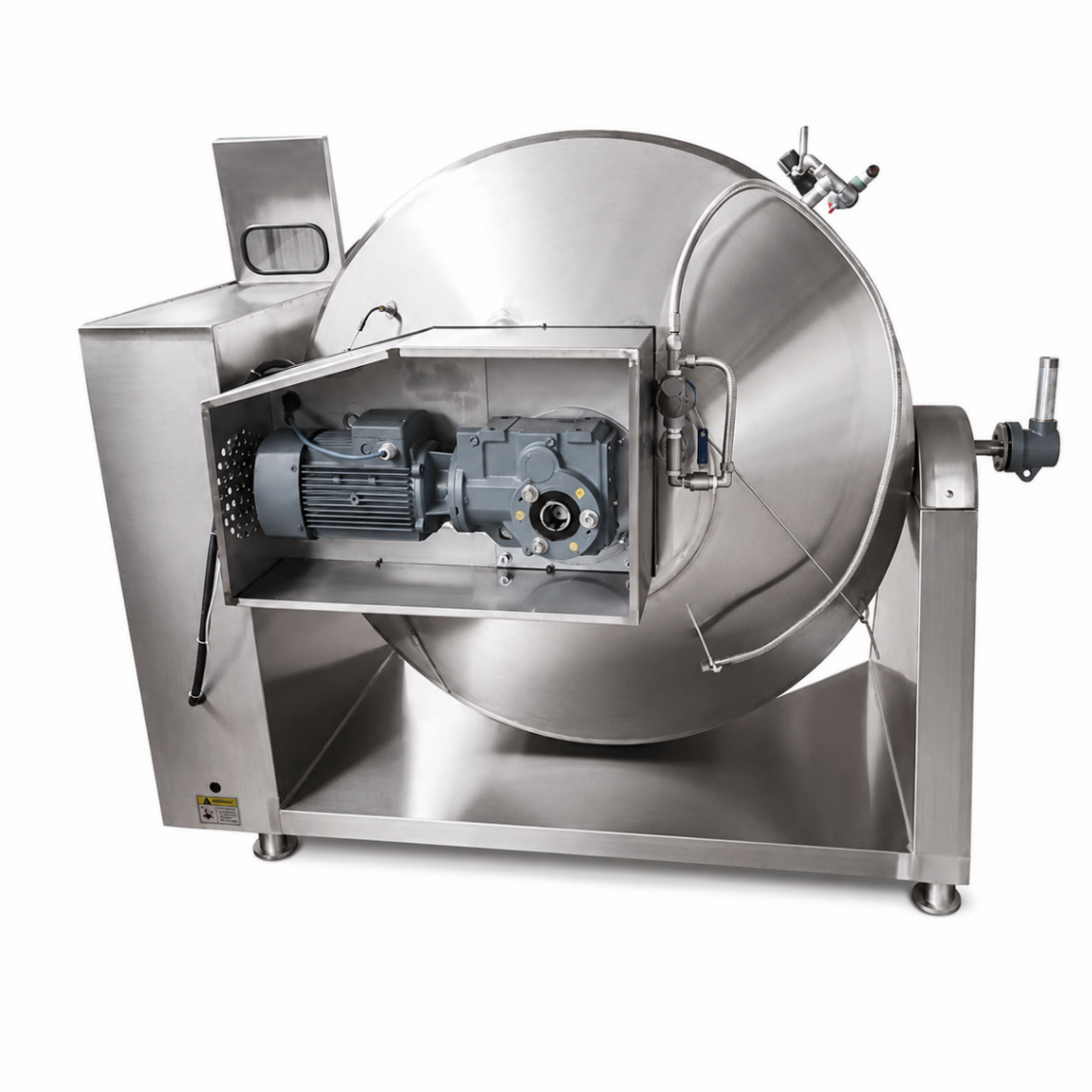

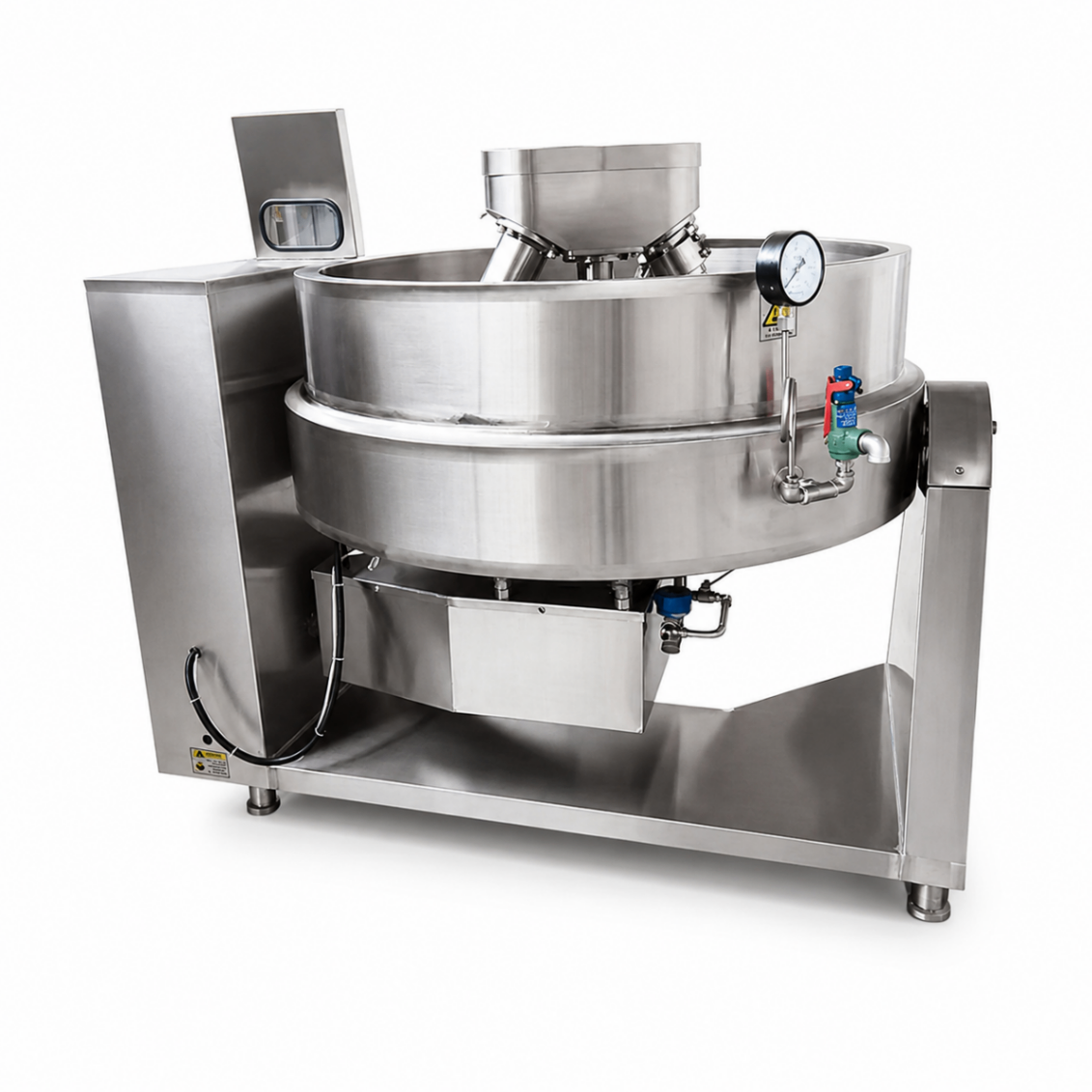

What is included • Tilting kettle / tilting cooking pan. • Double-arm mixer: planetary head + scraper arm. • Hydraulic tilting system. • Temperature control. • Variable-speed drive. • Electrically operated sealed lid. • Caster wheels. • PLC control panel with touchscreen. • External steam generator not included. Technical description • Factory model: JL-XXKL-Q600 | LeanZupply reference: JIALI-VAPOR-600-PLAN-FULL. • Capacity: 600 L. • Heating system: steam jacket. • Steam source: requires an external steam generator, not included. • Tilting system: hydraulic. • Agitation system: double-arm, planetary head + scraper arm. • Agitation speed: 0–35 rpm through variable-speed control. • Control system: PLC control panel with touchscreen. • Lid: sealed and electrically operated. • Mobility: caster wheels. • Dimensions: 1980 × 1530 × 1220 mm. • Internal pot diameter: 1300 mm. • Indicated power ratings: 4 + 0.75 kW. • Electrical voltage: 380 V. • Working pressure: 0.3 MPa. • Maximum temperature: 135 °C. • Vessel design: spherical bottom. • Insulation: full insulation. Commercial description This 600 L tilting kettle / tilting cooking pan combines steam-jacket heating, planetary agitation and hydraulic tilting in a single machine. The planetary agitator with scrapers keeps the product moving during mixing, while the spherical bottom supports its circulation inside the vessel. It is recommended for industrial kitchens and food-processing facilities that handle large batches and processes requiring controlled heating and continuous mixing. The variable-speed drive allows the agitation speed to be adjusted between 0 and 35 rpm according to process requirements. The hydraulic tilting system facilitates vessel inclination during product discharge, while the full insulation helps retain heat during operation. The FULL configuration adds an electrically operated sealed lid, caster wheels and a PLC control panel with touchscreen, improving machine handling, mobility and control of its main functions. An external steam generator is essential for operation and is not included. It must be purchased separately. Keywords Industrial tilting kettle, industrial tilting cooking pan, 600 L steam kettle, steam-jacketed cooking pan, hydraulic tilting kettle, kettle with planetary mixer, planetary agitator with scrapers, industrial planetary mixer, variable-speed kettle, electrically operated sealed lid, caster wheels, PLC controlled kettle, touchscreen control, spherical-bottom kettle, fully insulated kettle, 0.3 MPa working pressure, external steam generator, JIALI-VAPOR-600-PLAN-FULL.
