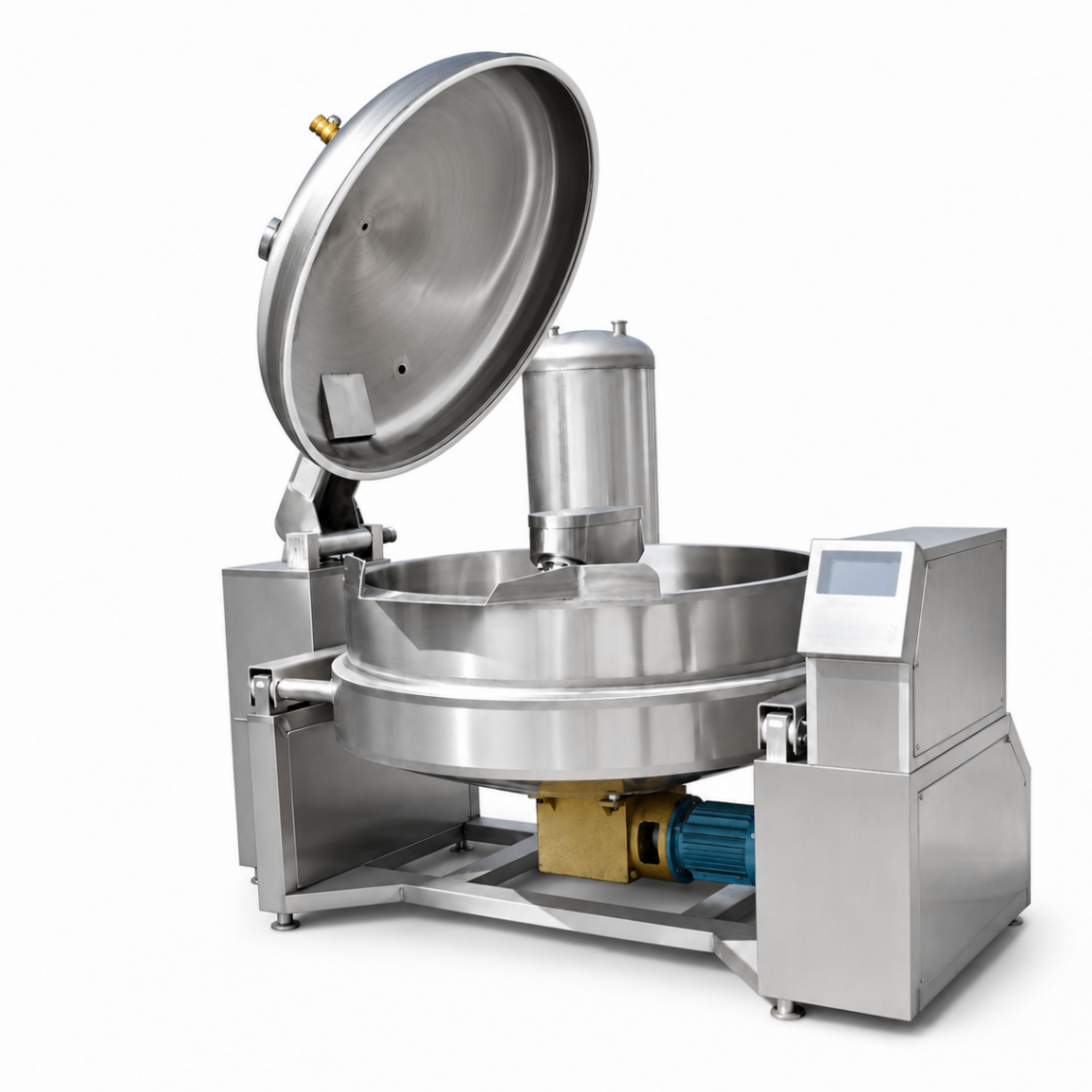

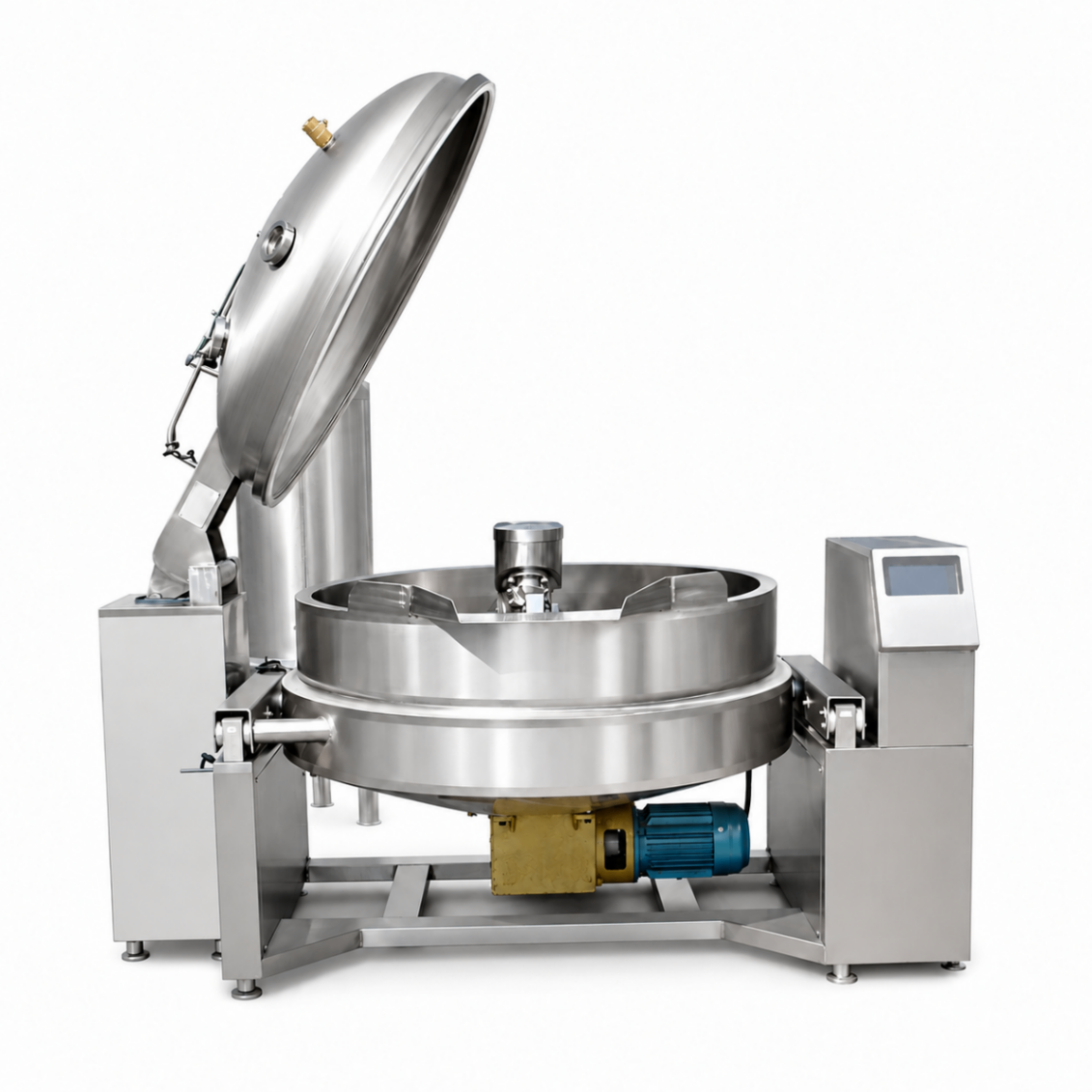

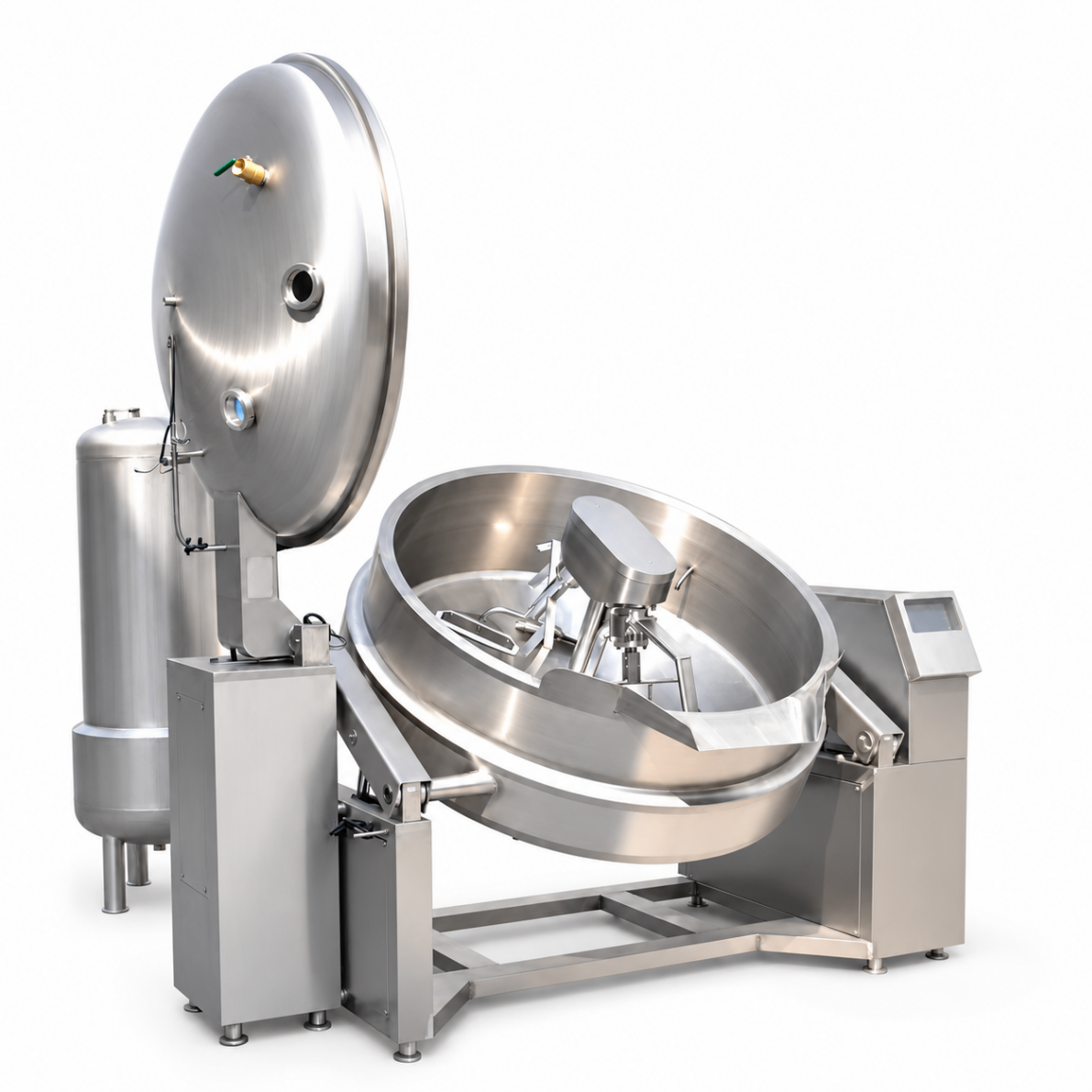

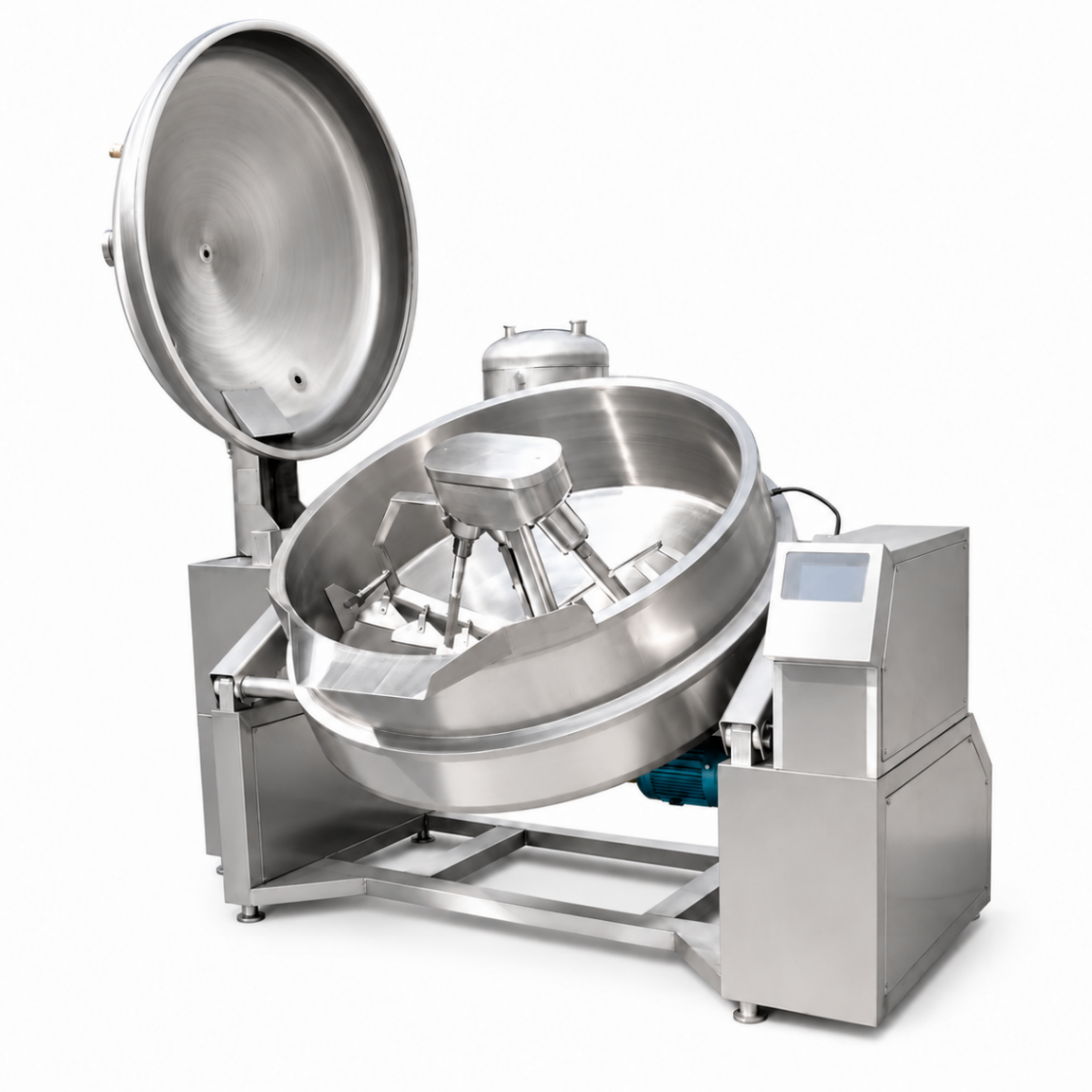

What is included • Vacuum tilting kettle / tilting cooking pan. • Double-arm mixer: planetary head + scraper arm. • Hydraulic tilting system. • Electrically operated sealed lid. • Vacuum pump. • Condenser. • Variable-speed drive. • Touchscreen control panel. • External steam generator not included. Technical description • Factory model: JL-XKZG | LeanZupply reference: JIALI-VACIO-600-UNICA. • Capacity: 600 L. • Heating system: steam jacket. • Processing system: vacuum. • Steam source: requires an external steam generator, not included. • Tilting system: hydraulic. • Agitation system: double-arm, planetary head + scraper arm. • Agitation speed: 0–35 rpm through variable-speed control. • Vacuum system: vacuum pump and condenser. • Maximum vacuum: 0.095 MPa. • Lid: sealed and electrically operated. • Control system: touchscreen control panel. • Dimensions: 2210 × 2400 × 1540 mm. • Internal pot diameter: 1300 mm. • Indicated power: 4 kW. • Electrical supply: 380 V, 50 Hz, three-phase. • Working pressure: 0.3 MPa. • Indicated temperature range: 110–180 °C. • Indicated steam consumption: 0.1–0.075 t/h. • Noise level: 75 dB. • Interior material: SUS 304 stainless steel. • Exterior material: SS 201 stainless steel. Commercial description This 600 L vacuum tilting kettle / tilting cooking pan integrates steam-jacket heating, planetary agitation, vacuum processing and hydraulic tilting in a single machine. Its configuration includes a vacuum pump, condenser and electrically operated sealed lid for processing with the vessel closed. It is recommended for food-processing facilities that need to handle large batches through processes combining heating, mixing and vacuum. The variable-speed drive allows the planetary agitator to be adjusted between 0 and 35 rpm according to the requirements of each operation. The hydraulic tilting system facilitates vessel inclination during product discharge, while the touchscreen panel centralizes operation of the machine’s main functions. The vacuum pump and condenser are already included with the equipment and do not need to be purchased as separate accessories. An external steam generator is essential for operation. The steam generator is not included and must be purchased separately. Keywords Vacuum tilting kettle, vacuum tilting cooking pan, 600 L industrial kettle, steam-jacketed vacuum kettle, hydraulic tilting kettle, kettle with planetary mixer, industrial planetary agitator, kettle with vacuum pump, kettle with condenser, kettle with electric lid, touchscreen vacuum kettle, industrial vacuum cooking equipment, food-processing equipment, 0.095 MPa maximum vacuum, 0.3 MPa working pressure, SUS 304 stainless steel, external steam generator, JIALI-VACIO-600-UNICA.
