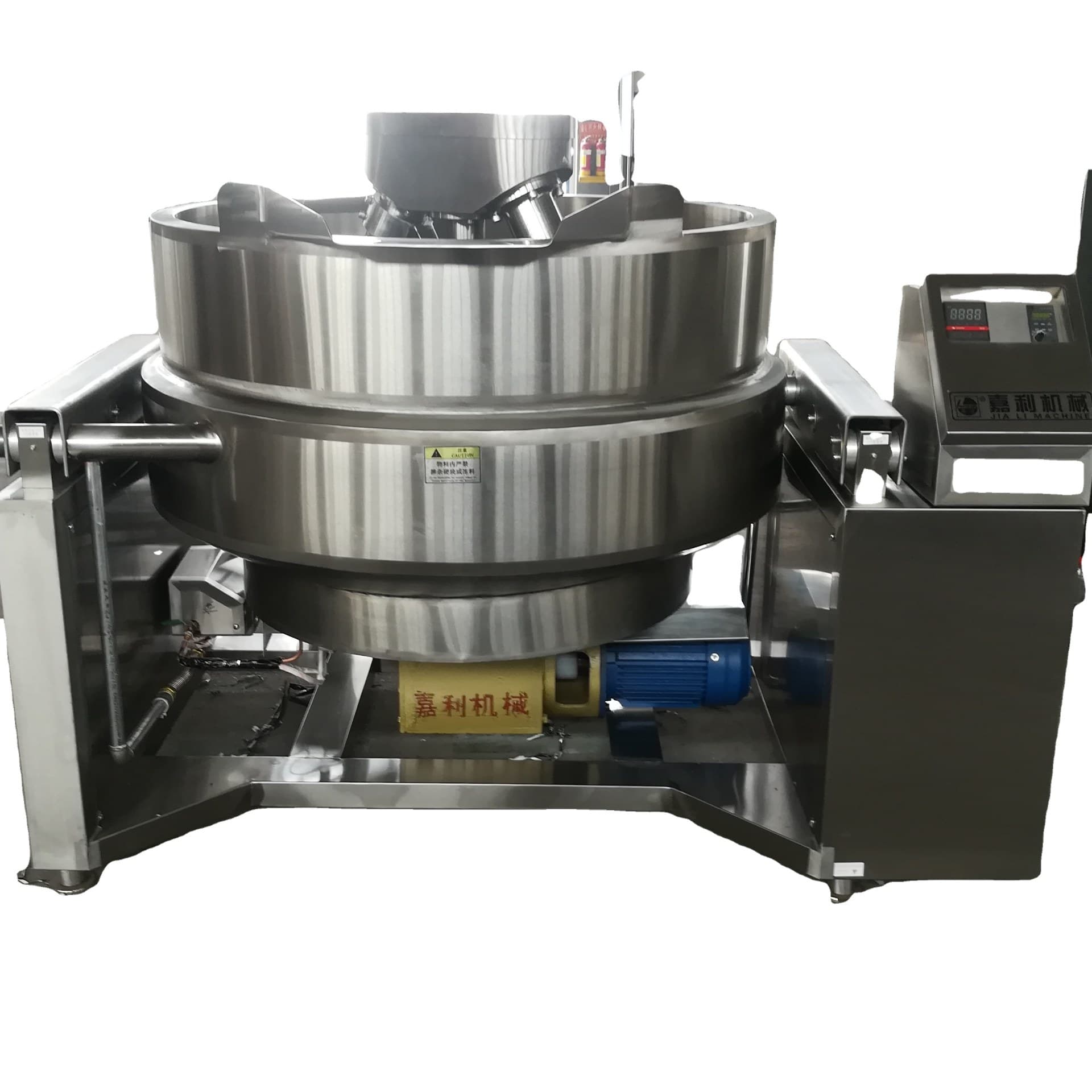

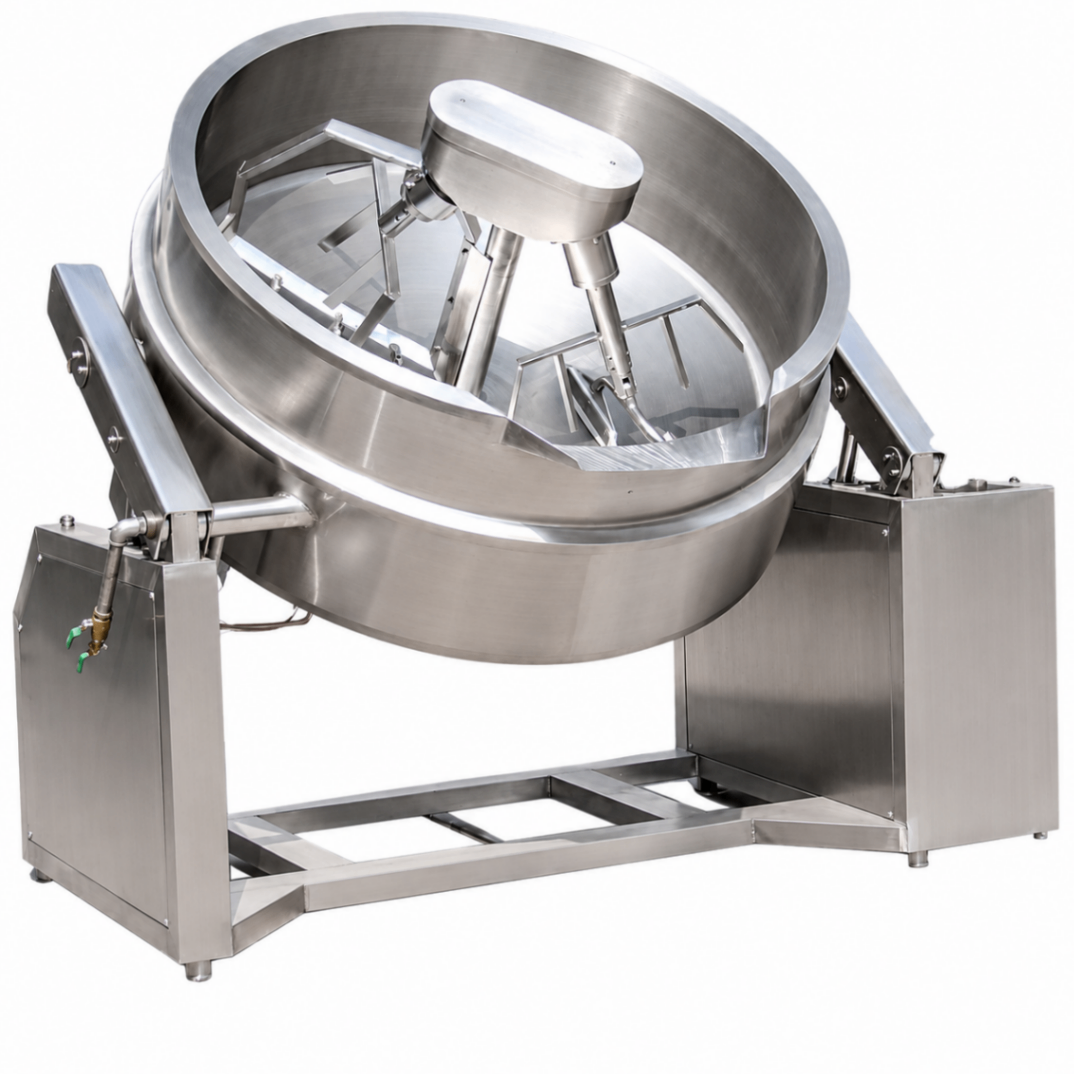

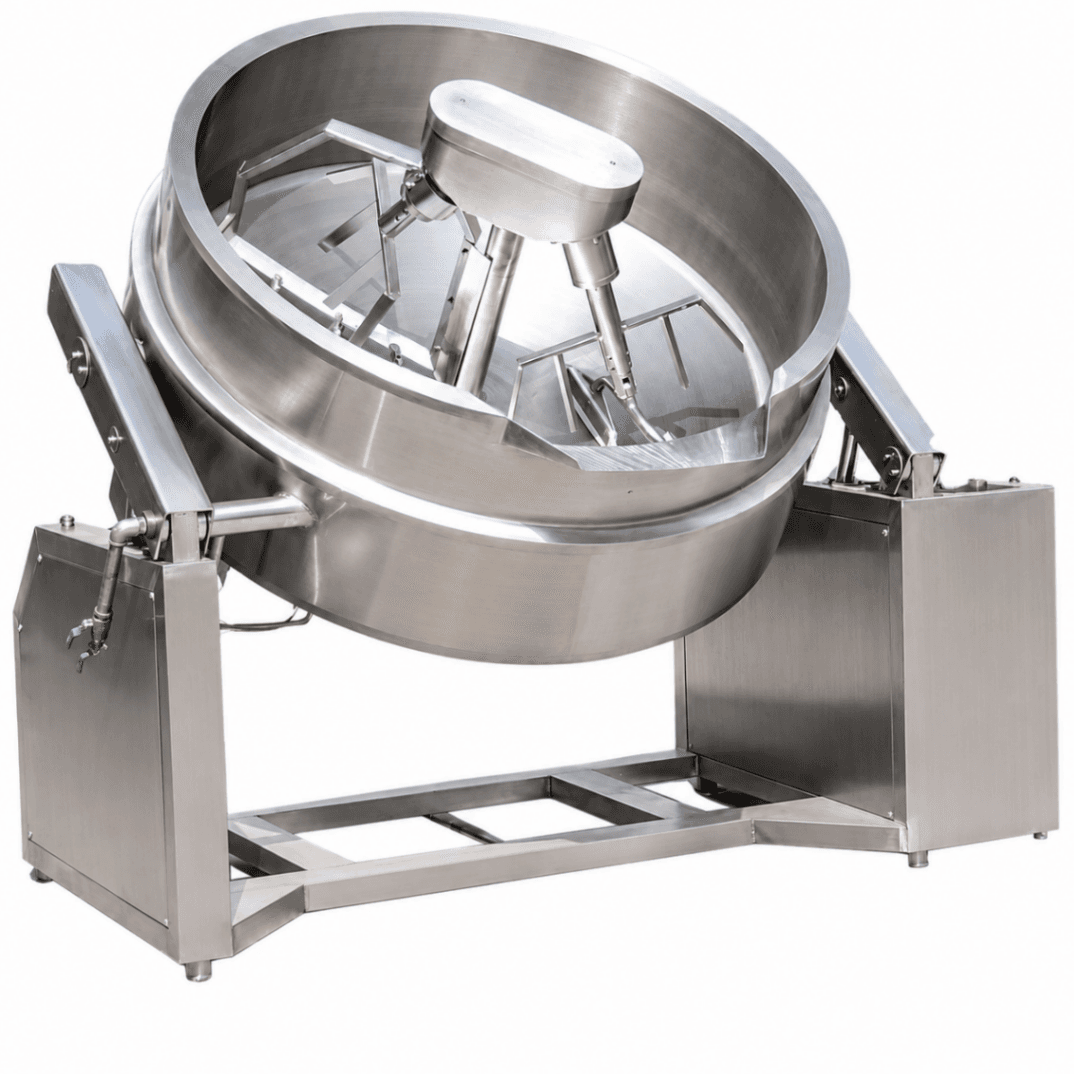

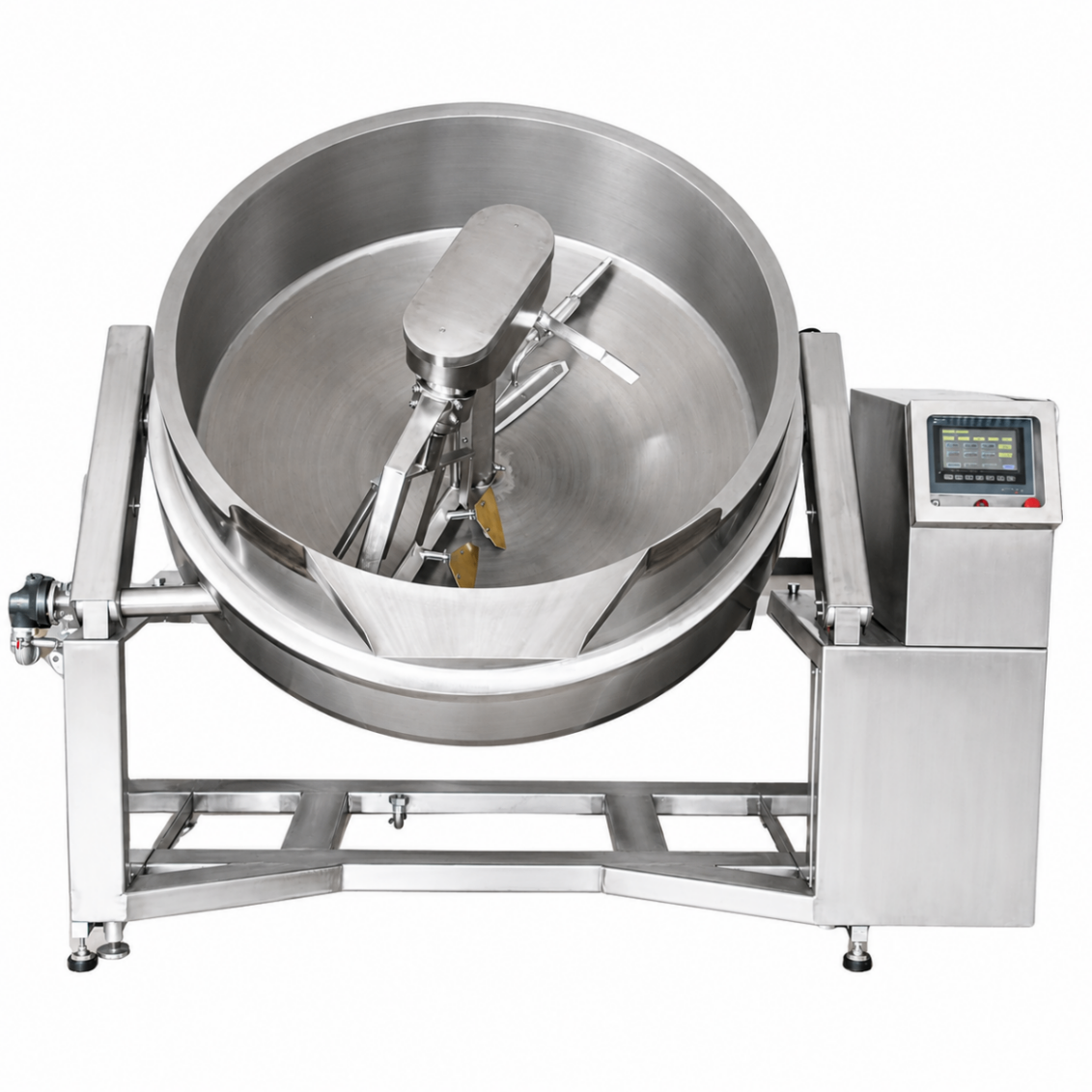

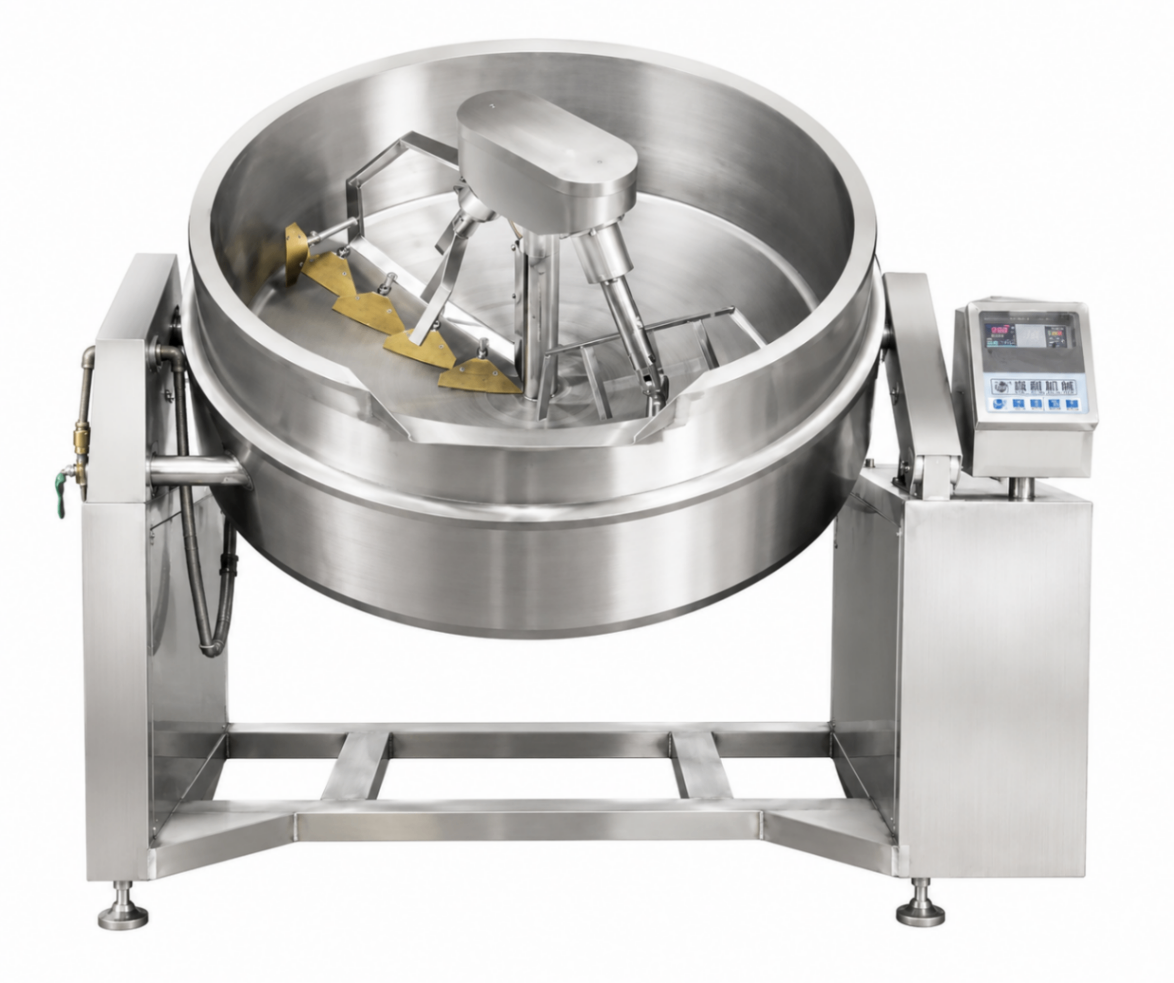

Tilting Kettle / Tilting Cooking Pan 400 L with Direct Gas Heating, Hydraulic Tilting and Planetary Mixer - BASIC
Tilting Kettle / Tilting Cooking Pan 400 L with Direct Gas Heating, Hydraulic Tilting and Planetary Mixer - BASIC
Baoding Jiali Food Machinery Co., Ltd. · China
Model: JIALI-GASDIR-400-PLAN-BAS Brand: Jiali
Made in China
Ships and invoices from China
7.550,00 €
EUR/unit FOB
Gather several products and receive a formal PDF offer
Quantity (units)
Minimum: 1 units
We don't serve your country yet
LeanZupply currently delivers to Spain, Portugal, France, Italy, Germany, Belgium and the Netherlands. The price shown is FOB: it excludes international freight, insurance, duties, import taxes and local delivery. Request a quote and we'll assess your operation.
Gather several products and receive a formal PDF offer
When we quote a price it is final: goods, taxes, freight and delivery included.
With LeanFinance, our in-house machinery financing, you pay a down payment and the balance in deferred monthly instalments.
- Down payment 1.887,50 € (25%)+ 24 instalments of 549,07 €/month
- Down payment 3.020,00 € (40%)+ 18 instalments of 491,77 €/month
- Down payment 3.775,00 € (50%)+ 9 instalments of 610,60 €/month
Indicative simulation over the displayed total, subject to credit assessment. Available for companies in Spain.
We accept transfers via European IBAN or international SWIFT.
Credit or debit cardSecure payment processed with Stripe; funds are held until the operation's milestones are met.
You choose how to pay, financing included, at checkout.
Contact details
Enter your details before continuing.
Detailed Description

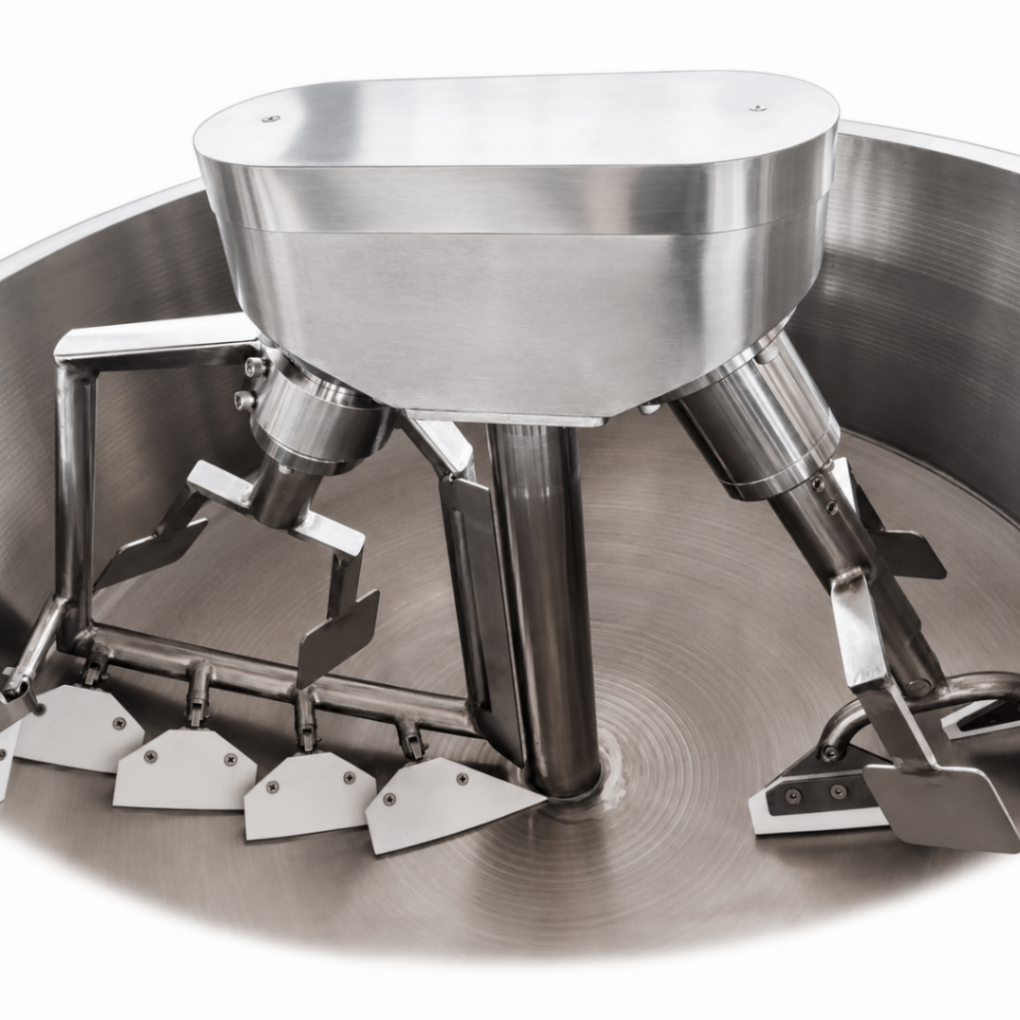

What is included • Tilting kettle / tilting cooking pan. • Planetary agitator with scrapers. • Hydraulic tilting system. • Temperature control. • Variable-speed drive. • Without lid. • Without wheels. • Without PLC. Technical description • Capacity: 400 L. • Heating system: gas applied directly to the bottom of the vessel, without a thermal-oil jacket. • Tilting system: hydraulic. • Tilting angle: 90°. • Agitation system: planetary agitator with scrapers. • Agitation speed: 0–35 rpm through variable-speed control. • Dimensions: 1880 × 1410 × 1350 mm. • Internal pot diameter: 1100 mm. • Indicated power: 2.2 + 0.75 kW. • Electrical supply: 380 V, 50 Hz, three-phase. • Interior material: SUS 304 stainless steel. • Exterior material: SS 201 stainless steel. Commercial description This 400 L tilting kettle / tilting cooking pan combines direct gas heating, planetary mixing and product discharge in a single machine for professional food-production processes. Heat is applied directly to the bottom of the vessel without using a thermal-oil jacket, while the planetary agitator with scrapers keeps the product moving during operation. It is recommended for industrial kitchens, food-production workshops and processing facilities handling larger batches of food preparations that require direct heating and adjustable agitation. The variable-speed drive allows the agitator to operate between 0 and 35 rpm according to process requirements. The hydraulic tilting system provides a 90° tilting angle, facilitating product discharge and reducing manual handling of the vessel. This BASIC configuration provides the main heating, mixing and discharge functions for facilities that do not require a lid, wheels or PLC automation. Keywords Industrial tilting kettle, industrial tilting cooking pan, 400 L tilting kettle, 400 L tilting cooking pan, direct gas kettle, direct gas heating, non-jacketed kettle, hydraulic tilting kettle, kettle with planetary mixer, planetary agitator with scrapers, variable-speed drive, 90-degree hydraulic tilting, industrial cooking equipment, food processing equipment, SUS 304 stainless steel, JIALI-GASDIR-400-PLAN-BAS.
Manufacturer Warranty
12-month factory warranty covering manufacturing defects. Includes replacement of defective components following technical diagnosis by the factory. It does not cover impacts, improper installation, misuse, incorrect voltage or natural wear.
Packaging
Wooden Case, Pallet
Technical Specifications
Dimensions (L×W×H)
1880 × 1410 × 1350 mm
Net Weight
860 kg
Gross Weight
920 kg
Packaging
Wooden Case, Pallet
Detailed Description
What is included • Tilting kettle / tilting cooking pan. • Planetary agitator with scrapers. • Hydraulic tilting system. • Temperature control. • Variable-speed drive. • Without lid. • Without wheels. • Without PLC. Technical description • Capacity: 400 L. • Heating system: gas applied directly to the bottom of the vessel, without a thermal-oil jacket. • Tilting system: hydraulic. • Tilting angle: 90°. • Agitation system: planetary agitator with scrapers. • Agitation speed: 0–35 rpm through variable-speed control. • Dimensions: 1880 × 1410 × 1350 mm. • Internal pot diameter: 1100 mm. • Indicated power: 2.2 + 0.75 kW. • Electrical supply: 380 V, 50 Hz, three-phase. • Interior material: SUS 304 stainless steel. • Exterior material: SS 201 stainless steel. Commercial description This 400 L tilting kettle / tilting cooking pan combines direct gas heating, planetary mixing and product discharge in a single machine for professional food-production processes. Heat is applied directly to the bottom of the vessel without using a thermal-oil jacket, while the planetary agitator with scrapers keeps the product moving during operation. It is recommended for industrial kitchens, food-production workshops and processing facilities handling larger batches of food preparations that require direct heating and adjustable agitation. The variable-speed drive allows the agitator to operate between 0 and 35 rpm according to process requirements. The hydraulic tilting system provides a 90° tilting angle, facilitating product discharge and reducing manual handling of the vessel. This BASIC configuration provides the main heating, mixing and discharge functions for facilities that do not require a lid, wheels or PLC automation. Keywords Industrial tilting kettle, industrial tilting cooking pan, 400 L tilting kettle, 400 L tilting cooking pan, direct gas kettle, direct gas heating, non-jacketed kettle, hydraulic tilting kettle, kettle with planetary mixer, planetary agitator with scrapers, variable-speed drive, 90-degree hydraulic tilting, industrial cooking equipment, food processing equipment, SUS 304 stainless steel, JIALI-GASDIR-400-PLAN-BAS.
Manufacturer Warranty
12-month factory warranty covering manufacturing defects. Includes replacement of defective components following technical diagnosis by the factory. It does not cover impacts, improper installation, misuse, incorrect voltage or natural wear.
Packaging
Wooden Case, Pallet
Made in China
Ships and invoices from China
Tilting Kettle / Tilting Cooking Pan 400 L with Direct Gas Heating, Hydraulic Tilting and Planetary Mixer - BASIC
Model: JIALI-GASDIR-400-PLAN-BAS
Brand: Jiali
⚠These times do not include maritime transport, customs or local delivery.
Gather several products and receive a formal PDF offer
Minimum: 1 units
We don't serve your country yet
LeanZupply currently delivers to Spain, Portugal, France, Italy, Germany, Belgium and the Netherlands. The price shown is FOB: it excludes international freight, insurance, duties, import taxes and local delivery. Request a quote and we'll assess your operation.
Gather several products and receive a formal PDF offer
When we quote a price it is final: goods, taxes, freight and delivery included.
With LeanFinance, our in-house machinery financing, you pay a down payment and the balance in deferred monthly instalments.
- Down payment 1.887,50 € (25%)+ 24 instalments of 549,07 €/month
- Down payment 3.020,00 € (40%)+ 18 instalments of 491,77 €/month
- Down payment 3.775,00 € (50%)+ 9 instalments of 610,60 €/month
Indicative simulation over the displayed total, subject to credit assessment. Available for companies in Spain.
We accept transfers via European IBAN or international SWIFT.
Credit or debit cardSecure payment processed with Stripe; funds are held until the operation's milestones are met.
You choose how to pay, financing included, at checkout.
Contact details
Enter your details before continuing.
Technical Specifications
- Dimensions (L×W×H)
- 188 × 141 × 135 cm
- Net Weight
- 860 kg
- Gross Weight
- 920 kg
- Packaging
- Wooden Case, Pallet
