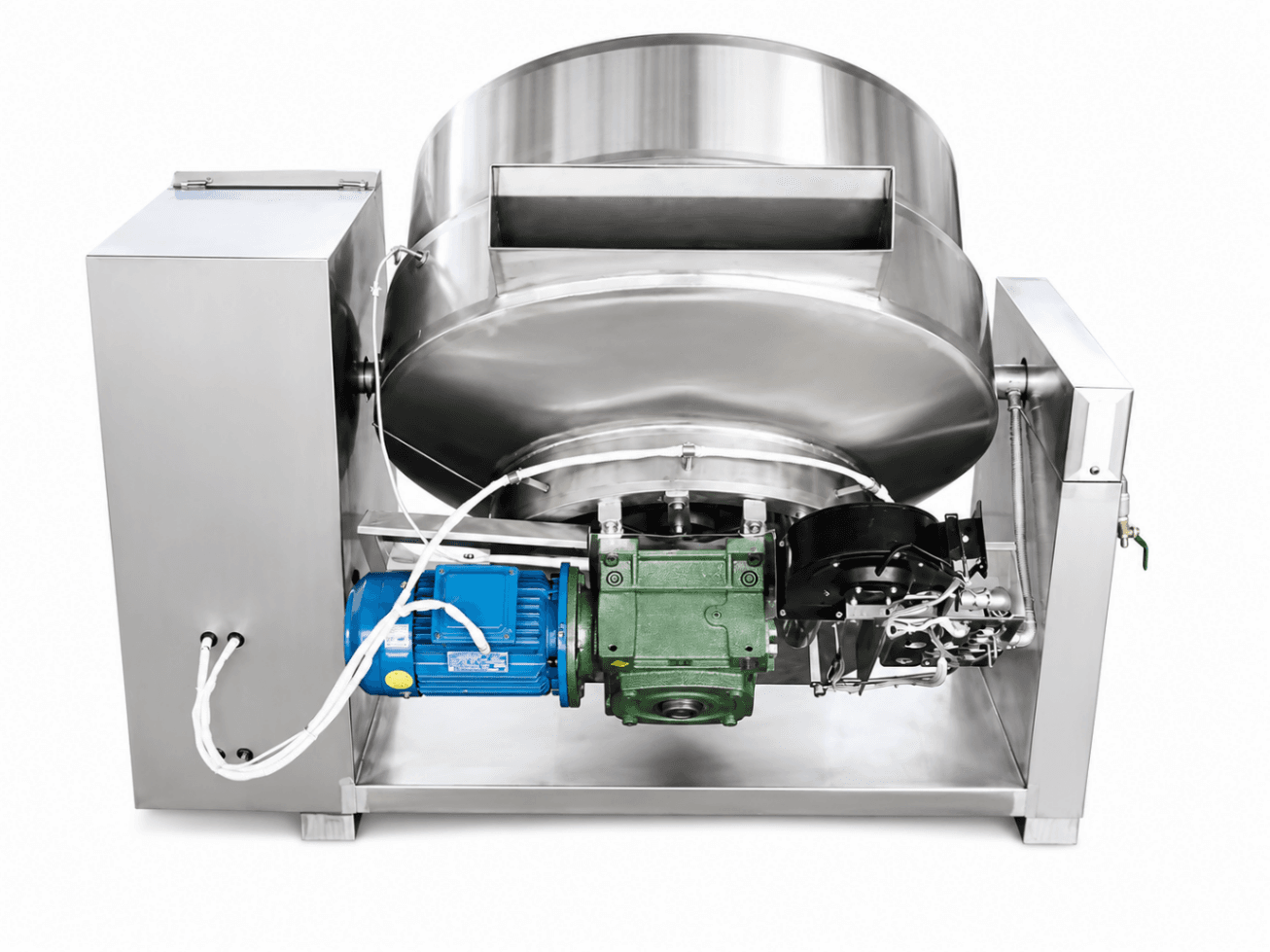

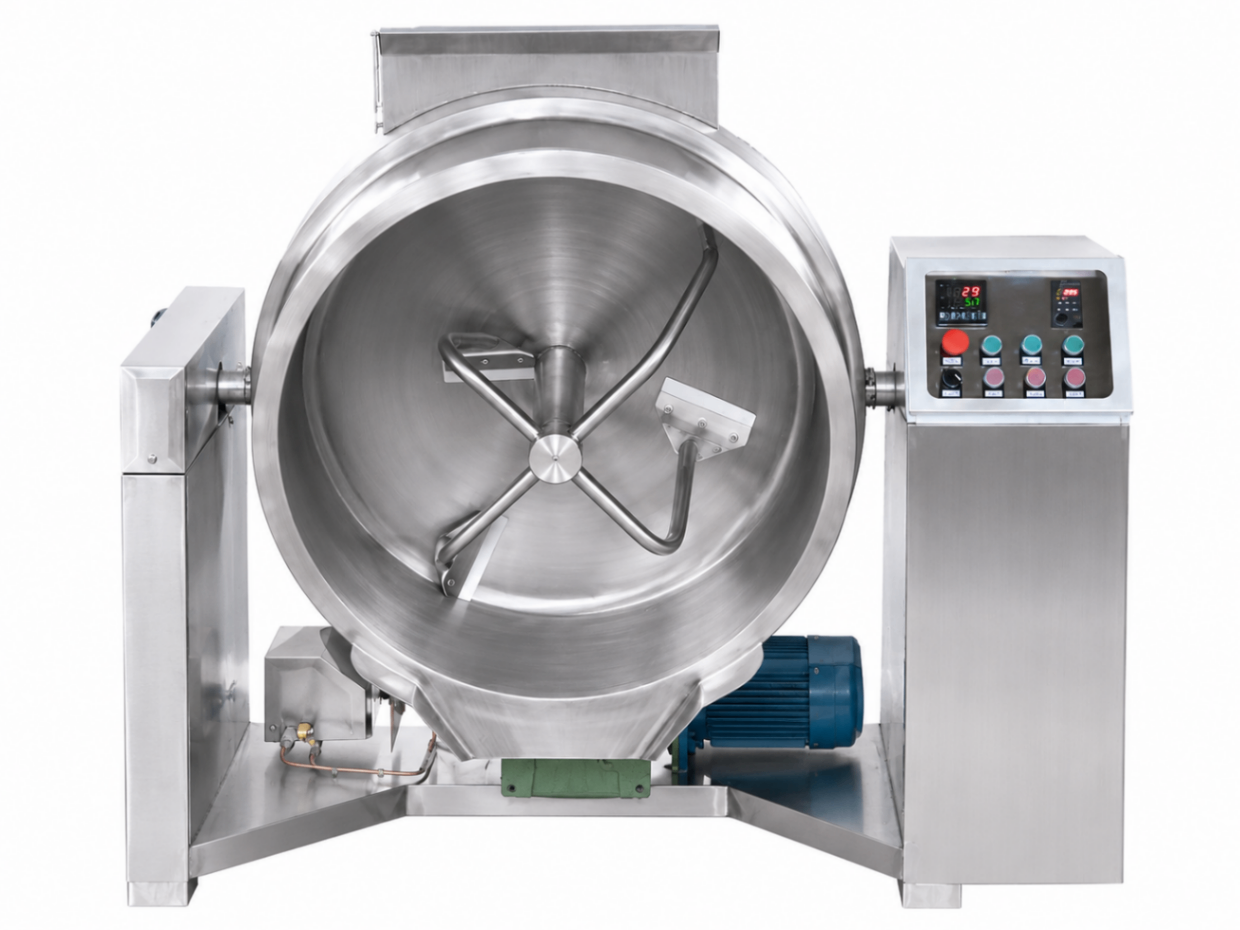

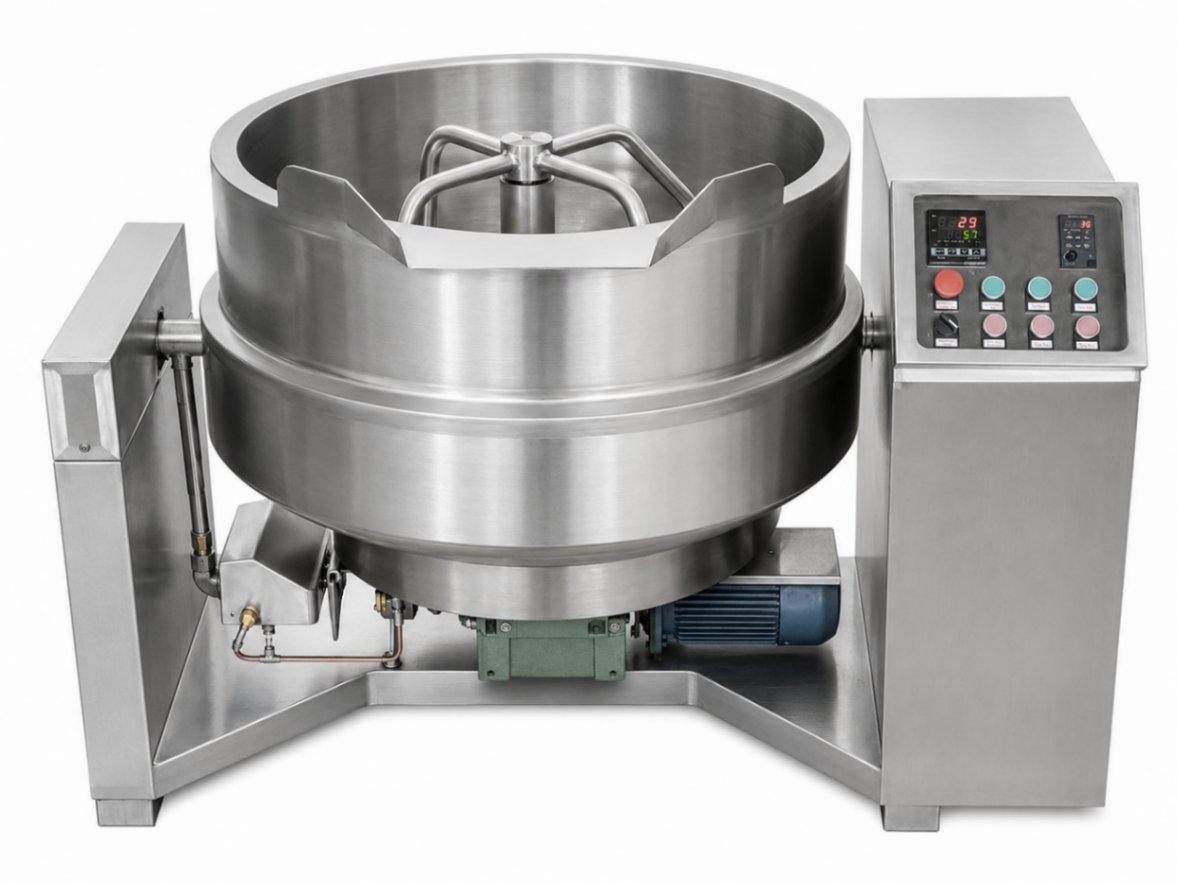

Tilting Kettle / Tilting Cooking Pan 400 L with Indirect Gas Heating, Electric Tilting and Mixer - BASIC
Tilting Kettle / Tilting Cooking Pan 400 L with Indirect Gas Heating, Electric Tilting and Mixer - BASIC
Baoding Jiali Food Machinery Co., Ltd. · China
Model: JIALI-GASIND-400-STD-BAS Brand: Jiali
Made in China
Ships and invoices from China
7.350,00 €
EUR/unit FOB
Gather several products and receive a formal PDF offer
Quantity (units)
Minimum: 1 units
We don't serve your country yet
LeanZupply currently delivers to Spain, Portugal, France, Italy, Germany, Belgium and the Netherlands. The price shown is FOB: it excludes international freight, insurance, duties, import taxes and local delivery. Request a quote and we'll assess your operation.
Gather several products and receive a formal PDF offer
When we quote a price it is final: goods, taxes, freight and delivery included.
With LeanFinance, our in-house machinery financing, you pay a down payment and the balance in deferred monthly instalments.
- Down payment 1.837,50 € (25%)+ 24 instalments of 534,53 €/month
- Down payment 2.940,00 € (40%)+ 18 instalments of 478,75 €/month
- Down payment 3.675,00 € (50%)+ 9 instalments of 594,42 €/month
Indicative simulation over the displayed total, subject to credit assessment. Available for companies in Spain.
We accept transfers via European IBAN or international SWIFT.
Credit or debit cardSecure payment processed with Stripe; funds are held until the operation's milestones are met.
You choose how to pay, financing included, at checkout.
Contact details
Enter your details before continuing.
Detailed Description
What is included • Tilting kettle / tilting cooking pan. • Double-arm agitator with copper scrapers. • Electric tilting system. • Temperature control. • Variable-speed drive. • Sealed electrical control cabinet. • Without lid. • Without wheels. • Without PLC. Technical description • Capacity: 400 L. • Heating system: indirect gas heating through a thermal-oil jacket. • Tilting system: electric. • Agitation system: double-arm agitator with copper scrapers. • Dimensions: 1700 × 1400 × 1190 mm. • Internal pot diameter: 1100 mm. • Agitation speed: 0–23 rpm. • Indicated power: 2.2 + 0.75 kW. • Electrical supply: 380 V, 50 Hz, three-phase. • Approximate gas consumption: 4.5 m³/h. • Interior material: SUS 304 stainless steel. • Exterior material: SS 201 stainless steel. • Certification indicated: CE. • Standard indicated: EN 60204-1. Commercial description This 400 L tilting kettle / tilting cooking pan is intended for industrial kitchens, food-production workshops and food-processing facilities that need to combine heating, agitation and discharge of large batches in a single machine. Its indirect gas-heating system transfers heat through a thermal-oil jacket, preventing direct flame application to the cooking vessel. It is recommended for food preparations that require heating and mixing during processing. The double-arm agitator with copper scrapers keeps the product moving, while the variable-speed drive allows agitation to be adjusted between 0 and 23 rpm according to production requirements. The electric tilting system facilitates product discharge and reduces the need to handle the vessel manually. Its 400 L capacity is suitable for higher-volume operations, while the sealed electrical control cabinet protects the control components. This BASIC configuration is intended for facilities that do not require a lid, wheels or PLC automation. Keywords Industrial tilting kettle, industrial tilting cooking pan, 400 L tilting kettle, 400 L tilting cooking pan, indirect gas kettle, thermal-oil jacketed kettle, electric tilting kettle, kettle with mixer, double-arm agitator, copper scrapers, variable-speed kettle, sealed electrical control cabinet, industrial cooking equipment, food processing equipment, SUS 304 stainless steel, JIALI-GASIND-400-STD-BAS.
Manufacturer Warranty
12-month factory warranty covering manufacturing defects. Includes replacement of defective components following technical diagnosis by the factory. It does not cover impacts, improper installation, misuse, incorrect voltage or natural wear.
Packaging
Wooden Case, Pallet
Technical Specifications
Dimensions (L×W×H)
1830 × 1440 × 1250 mm
Net Weight
840 kg
Gross Weight
900 kg
Packaging
Wooden Case, Pallet
Detailed Description
What is included • Tilting kettle / tilting cooking pan. • Double-arm agitator with copper scrapers. • Electric tilting system. • Temperature control. • Variable-speed drive. • Sealed electrical control cabinet. • Without lid. • Without wheels. • Without PLC. Technical description • Capacity: 400 L. • Heating system: indirect gas heating through a thermal-oil jacket. • Tilting system: electric. • Agitation system: double-arm agitator with copper scrapers. • Dimensions: 1700 × 1400 × 1190 mm. • Internal pot diameter: 1100 mm. • Agitation speed: 0–23 rpm. • Indicated power: 2.2 + 0.75 kW. • Electrical supply: 380 V, 50 Hz, three-phase. • Approximate gas consumption: 4.5 m³/h. • Interior material: SUS 304 stainless steel. • Exterior material: SS 201 stainless steel. • Certification indicated: CE. • Standard indicated: EN 60204-1. Commercial description This 400 L tilting kettle / tilting cooking pan is intended for industrial kitchens, food-production workshops and food-processing facilities that need to combine heating, agitation and discharge of large batches in a single machine. Its indirect gas-heating system transfers heat through a thermal-oil jacket, preventing direct flame application to the cooking vessel. It is recommended for food preparations that require heating and mixing during processing. The double-arm agitator with copper scrapers keeps the product moving, while the variable-speed drive allows agitation to be adjusted between 0 and 23 rpm according to production requirements. The electric tilting system facilitates product discharge and reduces the need to handle the vessel manually. Its 400 L capacity is suitable for higher-volume operations, while the sealed electrical control cabinet protects the control components. This BASIC configuration is intended for facilities that do not require a lid, wheels or PLC automation. Keywords Industrial tilting kettle, industrial tilting cooking pan, 400 L tilting kettle, 400 L tilting cooking pan, indirect gas kettle, thermal-oil jacketed kettle, electric tilting kettle, kettle with mixer, double-arm agitator, copper scrapers, variable-speed kettle, sealed electrical control cabinet, industrial cooking equipment, food processing equipment, SUS 304 stainless steel, JIALI-GASIND-400-STD-BAS.
Manufacturer Warranty
12-month factory warranty covering manufacturing defects. Includes replacement of defective components following technical diagnosis by the factory. It does not cover impacts, improper installation, misuse, incorrect voltage or natural wear.
Packaging
Wooden Case, Pallet
