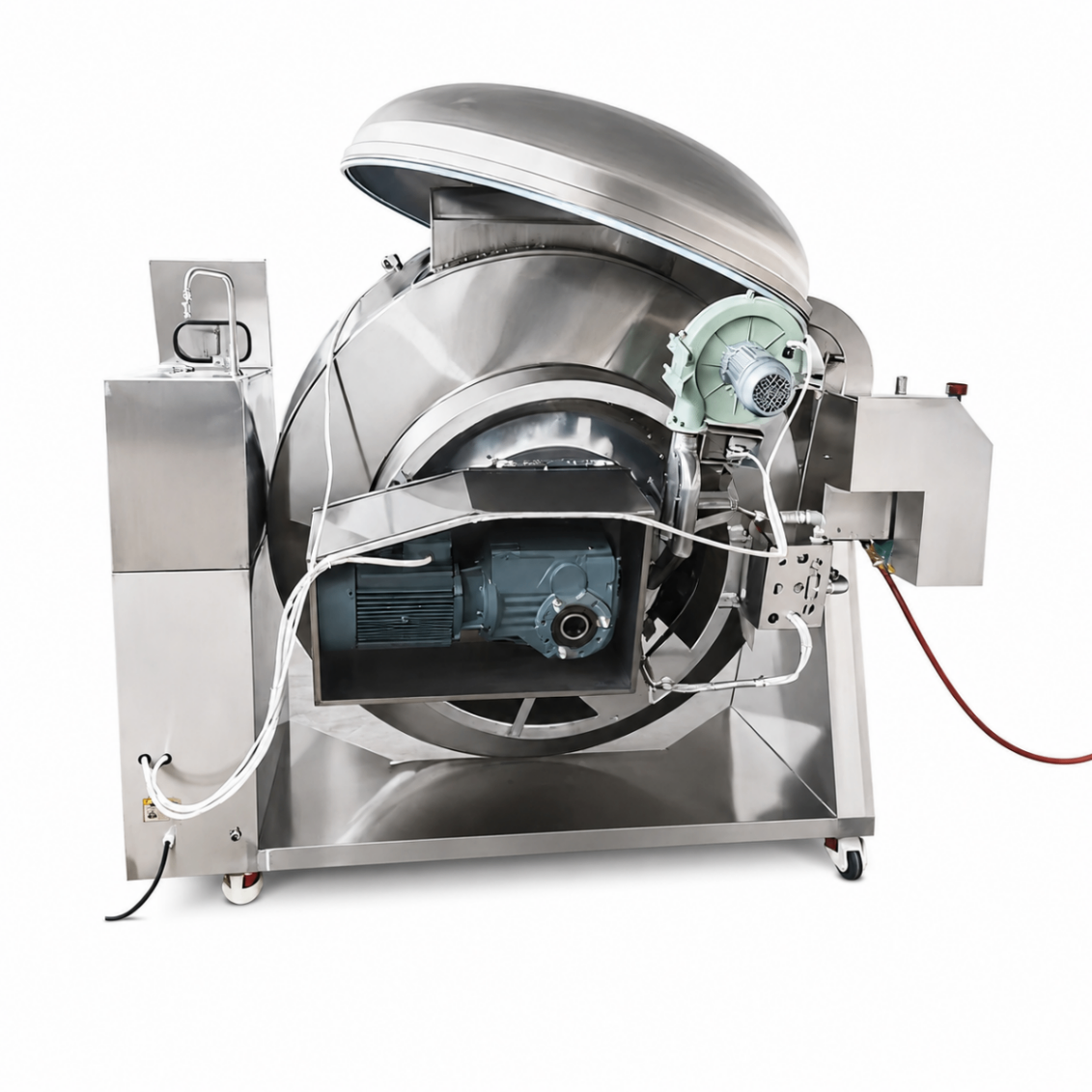

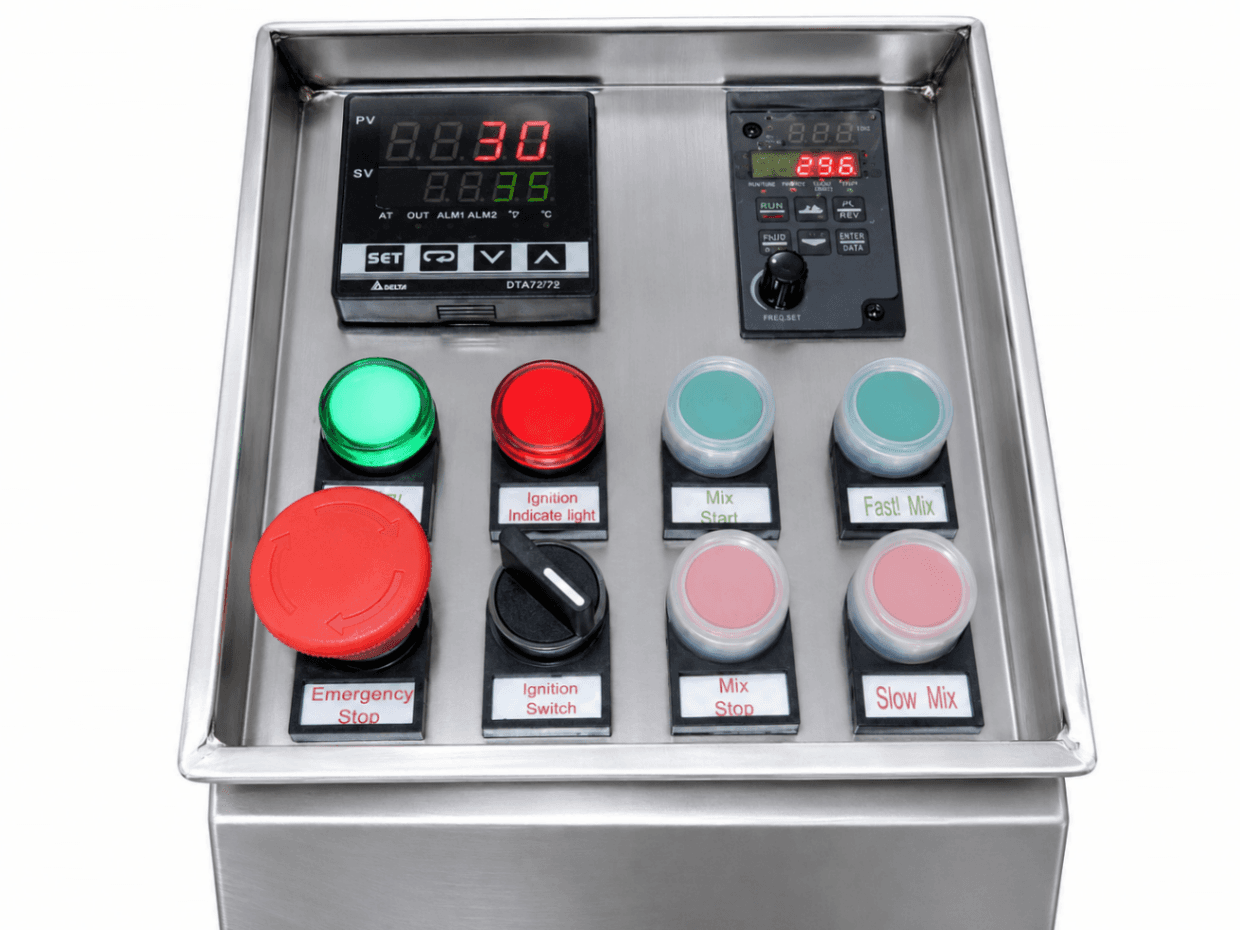

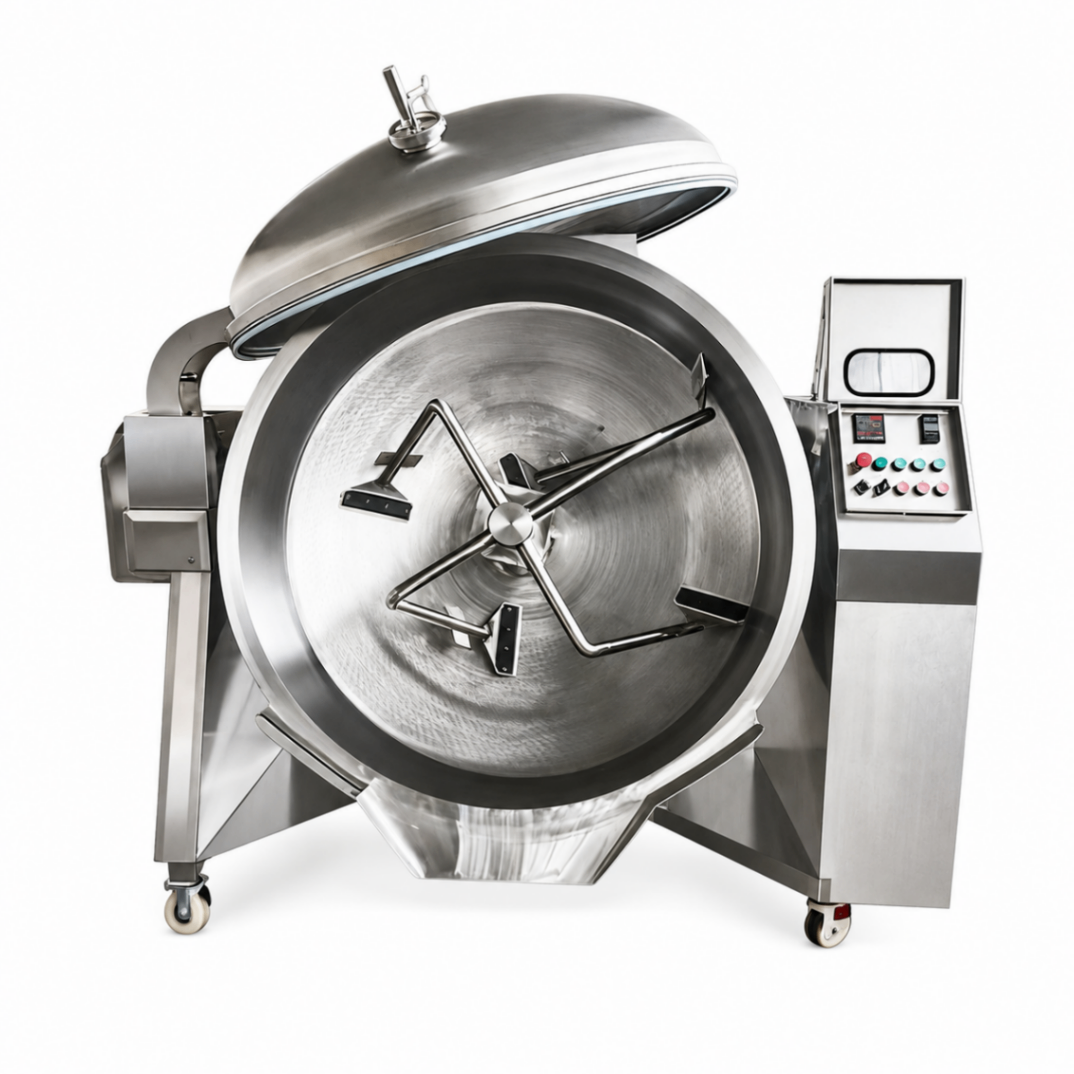

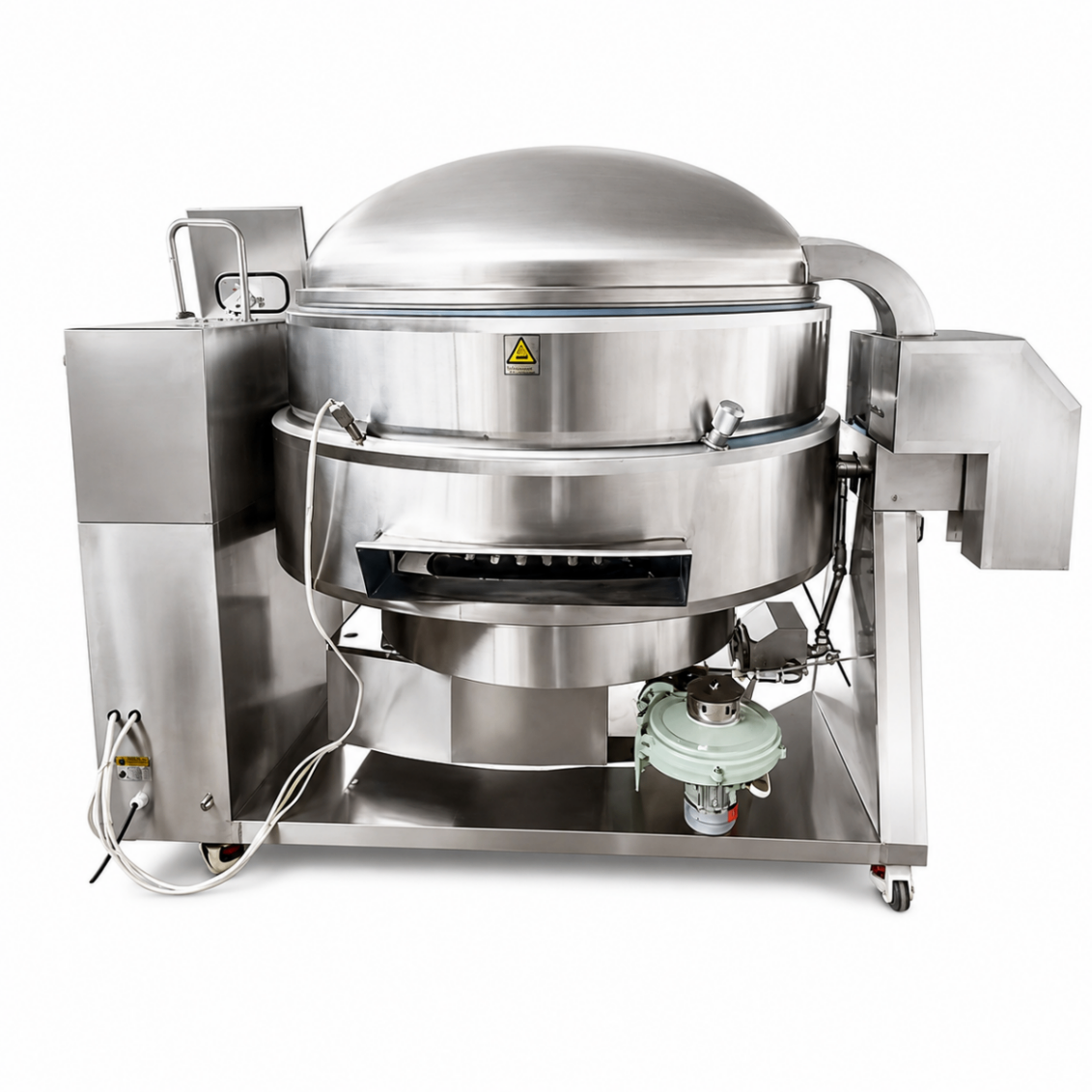

What is included • Tilting kettle / tilting cooking pan. • Double-arm agitator with copper scrapers. • Electric tilting system. • Temperature control. • Variable-speed drive. • Sealed electrical control cabinet. • Electronic ignition system with flame detection. • Electrically operated sealed lid. • Caster wheels. • PLC control panel with touchscreen. Technical description • Capacity: 600 L. • Heating system: gas applied directly to the bottom of the vessel, without a thermal-oil jacket. • Ignition system: electronic ignition with flame detection. • Tilting system: electric. • Agitation system: double-arm agitator with copper scrapers. • Control system: PLC control panel with touchscreen. • Lid: sealed and electrically operated. • Mobility: caster wheels. • Dimensions: 2000 × 1670 × 1250 mm. • Internal pot diameter: 1300 mm. • Agitation speed: 0–29 rpm. • Indicated power: 4 + 0.75 kW. • Electrical supply: 380 V, 50 Hz, three-phase. • Approximate gas consumption: 6.0 m³/h. • Maximum indicated temperature: up to 300 °C. Commercial description This 600 L tilting kettle / tilting cooking pan combines direct gas heating, mixing and large-volume product discharge in a single machine for professional food-production processes. Heat is applied directly to the bottom of the vessel without using a thermal-oil jacket, while the double-arm agitator with copper scrapers keeps the product moving during operation. It is recommended for industrial kitchens and food-processing facilities handling large batches of food preparations that require direct heating and adjustable agitation. The variable-speed drive allows the agitator to operate between 0 and 29 rpm, adapting the machine to the requirements of each process. The FULL configuration includes an electrically operated sealed lid, caster wheels and a PLC control panel with touchscreen. These features facilitate machine mobility and handling, centralize control of its main functions and reduce manual intervention during operation and discharge. The electronic ignition system with flame detection contributes to controlling the combustion system. Keywords Industrial tilting kettle, industrial tilting cooking pan, 600 L tilting kettle, 600 L tilting cooking pan, direct gas kettle, direct gas heating, non-jacketed kettle, electric tilting kettle, kettle with mixer, double-arm agitator, copper scrapers, variable-speed drive, electronic ignition, flame detection, electrically operated sealed lid, caster wheels, PLC controlled kettle, touchscreen control, industrial cooking equipment, JIALI-GASDIR-600-STD-FULL.
