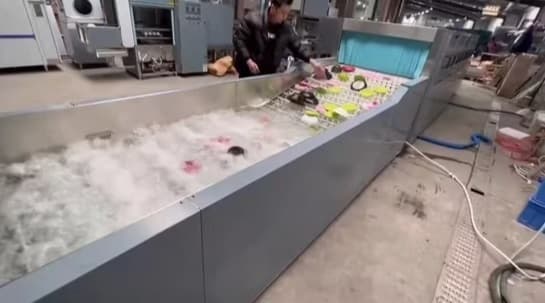

DETAILED DESCRIPTION The Industrial Conveyor Dishwasher with Bubbling Tank, Double Rinsing and Drying Function (Model HT-SC1X1H-510A) is a professional machine developed by HATTON for the continuous and automated washing of large volumes of tableware in restaurants, hotels, canteens, professional kitchens, catering facilities and food-service establishments requiring a high-capacity solution for continuous operation. With overall dimensions of 6,300 × 1,000 × 2,040 mm, a washing capacity of 1,200-2,800 dishes per hour and an entrance width of 510 mm, the HT-SC1X1H-510A is designed for professional tableware washing lines. Its configuration combines one main washing stage, double rinsing, a drying function and a bubbling tank, allowing different stages of tableware treatment to be performed within the same machine. The equipment features a 90-liter wash tank and a 15-liter booster tank. Water consumption is approximately 300-350 liters per hour. The system operates at a washing temperature of 55-60 °C and a rinsing temperature of 80-85 °C, providing the required conditions for professional cleaning and rinsing operations. The HT-SC1X1H-510A features an electric or steam heating system and requires a 380 V, 50 Hz, three-phase electrical supply, with a total power requirement of 79 kW. Its drying function completes the tableware treatment after the washing and rinsing stages. TECHNICAL SPECIFICATIONS: Model: HT-SC1X1H-510A. Equipment type: Industrial conveyor dishwasher with bubbling tank, double rinsing and drying function. Application: Professional and continuous washing of tableware, plates, containers and utensils. Overall dimensions: 6,300 × 1,000 × 2,040 mm. Weight: 739 kg. Entrance width: 510 mm. Maximum washing height: 170 mm. Maximum washing capacity: 1,200-2,800 dishes per hour. Water consumption: Approximately 300-350 liters per hour. Wash tank capacity: 90 liters. Booster tank capacity: 15 liters. Washing temperature: 55-60 °C. Rinsing temperature: 80-85 °C. Water supply pressure: 0.15-0.4 MPa. Water inlet diameter: G3/4" (DN20). Drain pipe diameter: 50 mm. Supply water temperature: 10-60 °C. Heating system: Electric or steam. Electrical supply: 380 V, 50 Hz, 3N. Total power: 79 kW. Process configuration: 1 main washing stage + double rinsing + 1 drying function. Additional system: Bubbling tank. Transport system: Continuous conveyor belt. DESIGN AND TECHNOLOGY FEATURES: Continuous Conveyor System: The HT-SC1X1H-510A uses a conveyor belt that allows tableware to be continuously fed into the machine, facilitating a steady flow throughout the different stages of the process. High Washing Capacity: With a maximum capacity of 1,200-2,800 dishes per hour, the machine is designed for establishments that need to process large quantities of tableware continuously. Bubbling Tank: The machine incorporates a bubbling tank as part of the tableware treatment system, complementing the washing process through water movement. Main Washing Stage: The main washing stage is designed to treat dirt and residues present on tableware before the subsequent rinsing stages. Double Rinsing: The system incorporates two rinsing stages to complete the cleaning process after the main washing stage. Drying Function: The drying function completes the tableware treatment after the washing and rinsing stages. 90-Liter Wash Tank: The integrated tank provides a 90-liter capacity for the washing process. 15-Liter Booster Tank: The 15-liter booster tank contributes to the rinsing system and helps maintain the required thermal conditions. Temperature Control: The HT-SC1X1H-510A operates at 55-60 °C during washing and 80-85 °C during rinsing. Electric or Steam Heating: The system can use electric or steam heating, providing flexibility for different installation configurations. 380 V Three-Phase Supply: The machine requires a 380 V, 50 Hz, 3N electrical supply and has a total power requirement of 79 kW. 510 mm Entrance Width: The entrance width allows tableware to be continuously fed into the conveyor system. 170 mm Maximum Washing Height: The maximum washing height defines the size of items that can be processed according to the specified entrance dimensions. 300-350 Liters/Hour Water Consumption: The stated consumption allows facilities to determine their water supply requirements. Integrated Washing, Rinsing and Drying Process: The combination of main washing, double rinsing and drying allows several stages of tableware treatment to be integrated into one machine. Professional-Duty Construction: The HT-SC1X1H-510A is designed for professional facilities requiring a continuous and automated tableware washing process. INDUSTRIAL APPLICATIONS: The HT-SC1X1H-510A model is particularly suitable for: • Medium and large restaurants. • Hotels and hospitality establishments. • Institutional canteens. • School and university dining facilities. • Industrial kitchens. • Professional kitchens. • Central kitchens. • Catering companies and food-service providers. • Large-scale food-service companies. • Food production and distribution facilities. • High-capacity food-service operations. • Businesses processing large volumes of tableware. • Establishments requiring continuous washing, rinsing and drying. • Facilities requiring an industrial conveyor dishwasher. • Food-service businesses seeking to automate tableware washing and treatment. KEYWORDS: HT-SC1X1H-510A industrial dishwasher, HT-SC1X1H-510A, HATTON, industrial conveyor dishwasher, commercial conveyor dishwasher, industrial dishwasher with bubbling tank, industrial dishwasher with drying function, industrial dishwasher with double rinsing, 1,200 dishes per hour dishwasher, 2,800 dishes per hour dishwasher, 1,200-2,800 dishes per hour dishwasher, industrial dishwashing machine, restaurant dishwasher, hotel dishwasher, canteen dishwasher, catering dishwasher, industrial kitchen dishwasher, professional kitchen dishwasher, 79 kW industrial dishwasher, 380 V three-phase dishwasher, 90-liter industrial dishwasher, dishwasher with 15-liter booster tank, professional conveyor dishwasher, industrial dishwasher with drying function, industrial dishwasher for hospitality, conveyor dishwasher for restaurants, continuous industrial dishwasher, dishwasher with bubbling system, industrial tableware washing equipment, hospitality equipment, industrial food-processing machinery.
